John Deere 4520 vs Case IH Farmall 60A | Side-by-side comparison | ITC Resource Center
Compare Tractors

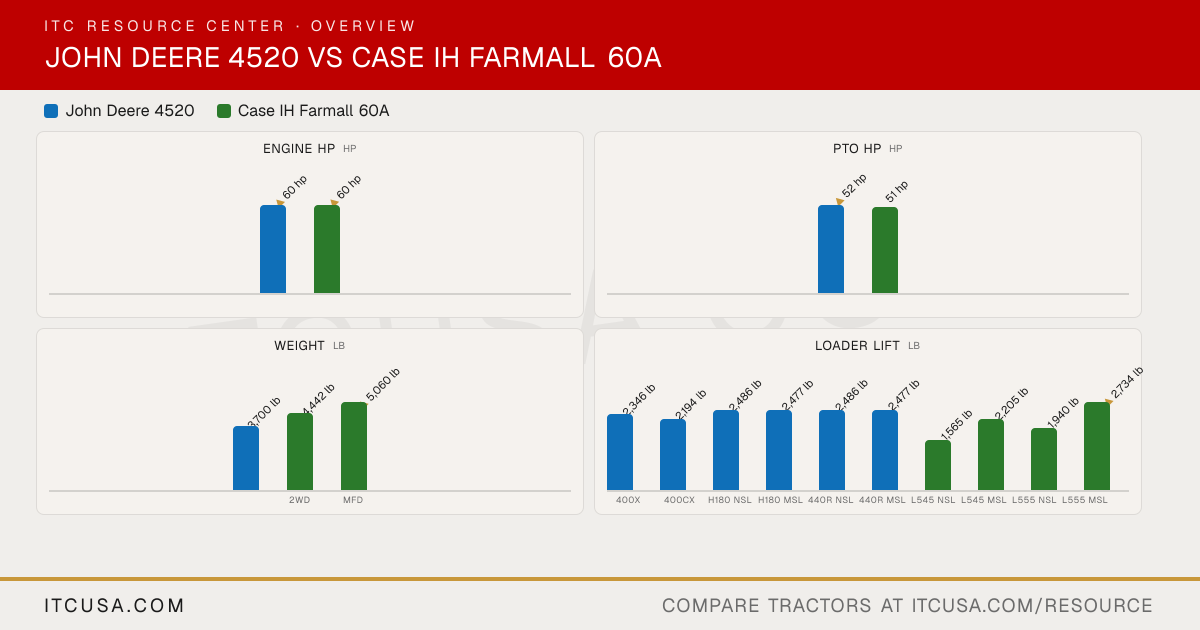

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Not Published
Steering
Power steering
Hydrostatic
Brakes
Wet disk
Wet disc
Seat Suspension & Adjustability
Air ride seat optional
Contoured seat, adjustable
Front Axle Type
Mechanical front wheel drive (MFWD), standard, all ranges
2WD or MFD with limited slip
Front Axle Rating
3,528 lb
Not Published
Drawbar Capacity
1,103 lb
Not Published
Overall Width
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
67.5 in
Wheelbase
71.5 in
2WD: 77.5 in; MFD: 77.7 in
Ground Clearance
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
2WD: 135.8 in; MFD: 190.9 in
Height to Top of ROPS
97.2 in
2WD: 92.7 in; MFD: 97.4 in
Height to Top of ROPS (folded)
Not Published
77 in
Height to Top of Cab Model
92.4 in
Not Published
Overall Length
128.2 in (with 3-point hitch)
2WD: 129.5 in; MFD: 134.0 in
Tractor Weight (Base)
3,700 lb (open station); 4,345 lb (cab)
2WD: 4,442 lb; MFD: 5,060 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD
R1 Agricultural - Front
8.00-16
2WD: 7.5x16; MFD: 8.3x24
R1 Agricultural - Rear
13.6-28
13.6x28
R3 Turf - Front
27x10.5-15
Not Published
R3 Turf - Rear
44x18.00-20
Not Published
R4 Industrial - Front
10.00-16.5
MFD: 12.5x18
R4 Industrial - Rear
17.5L-24
MFD: 18.4x24
Quick Attach Loader System
Not Published
Compatible loaders: L545, L555
Loader Model
440R (NSL and MSL)
L545; L555
Loader Lift Height
440R NSL: 109 in; 440R MSL: 109 in
L545: 106 in; L555: 105 in
Loader Lift Capacity (Full Height)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
