John Deere 5045E vs Case IH Farmall 50C | Side-by-side comparison | ITC Resource Center
Compare Tractors

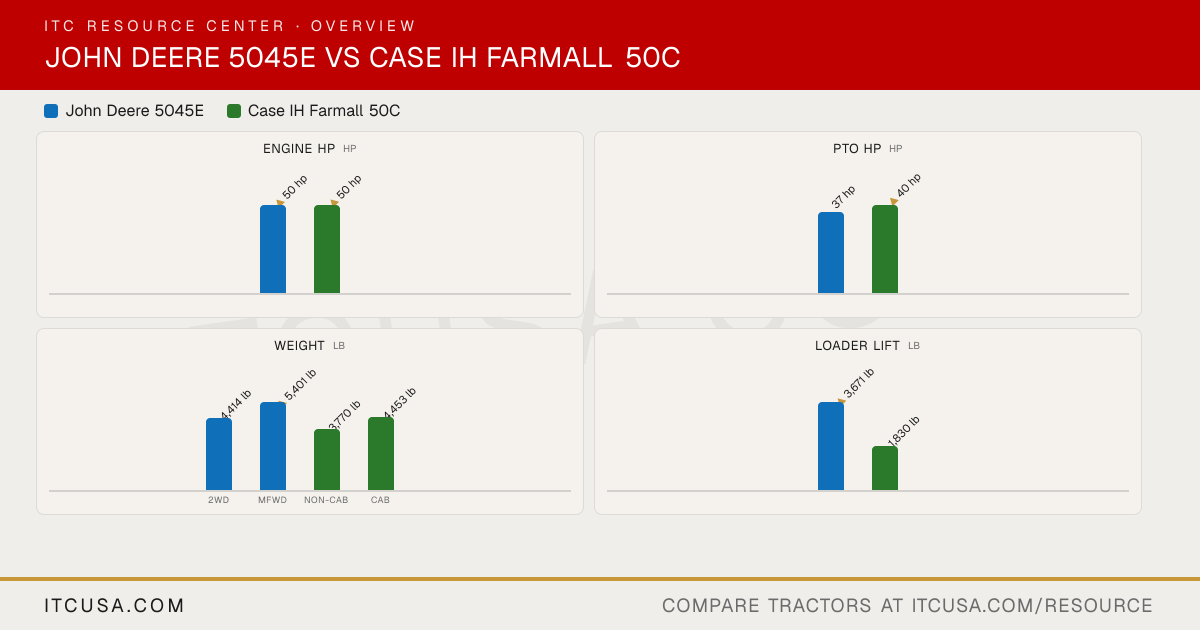

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
Case IHFarmall 50C
Engine Manufacturer
John Deere
LS Mtron
Engine Model
John Deere PowerTech 3029
Not Published
Engine Type
Diesel, turbocharged, liquid-cooled
Diesel, 3-cylinder, turbocharged
No. of Cylinders
3
3
Displacement
179 in³
115.9 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
50 hp
50 hp
PTO Power
37 hp
40 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Not Published
Air Cleaner
Dry Type Air Cleaner with Safety Element
Not Published
Fuel System
Not Published
Common rail direct injection
Alternator
40 A
Not Published
Pump Type
Not Published
Not Published
Implement Flow
11.4 gpm
8.2 gpm
Steering Flow
6.8 gpm
Not Published
Total Hydraulic Flow
18.2 gpm
13.5 gpm (8.2 + 5.3, computed)
Overall Hydraulic Pump Flow
18.2 gpm
Not Published
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
1
No. of Optional Remote Valves
2
2
Fuel Tank Capacity
19.6 gal
Non-cab: 10.5 gal; Cab: 12.4 gal
Coolant Capacity
10 qt
Not Published
Crankcase Capacity
9 qt
Not Published
Transmission / Hydraulic System Capacity
10.3 gal
Not Published
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
