John Deere 5045E vs John Deere 4052M | Side-by-side comparison | ITC Resource Center
Compare Tractors

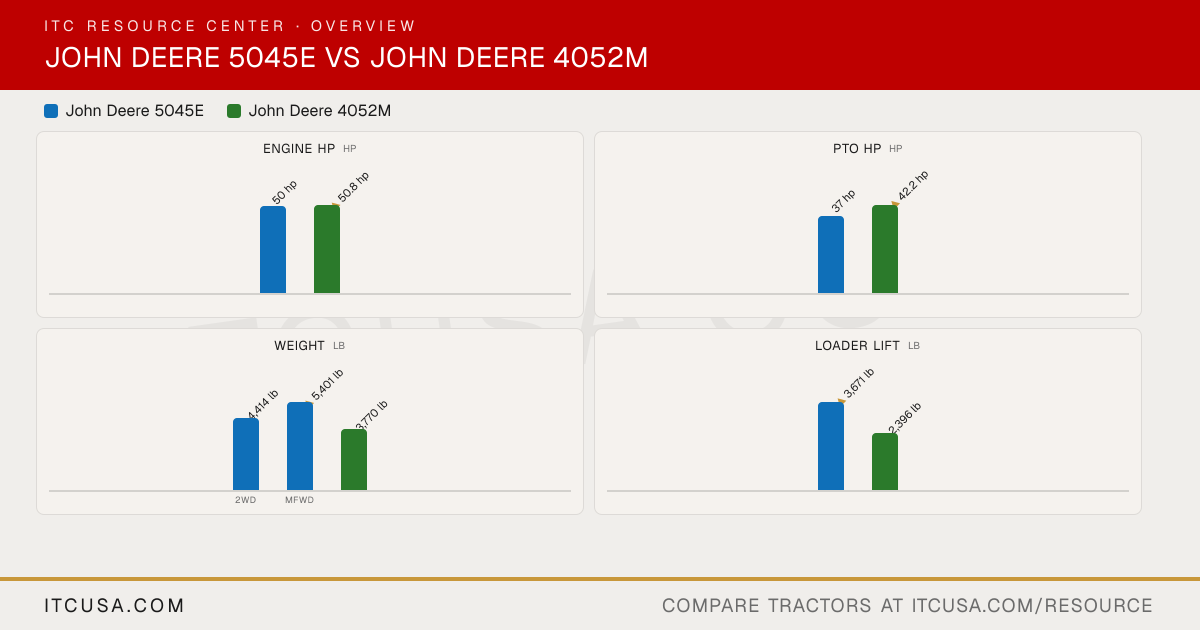

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
John Deere4052M
Engine Manufacturer
John Deere
Yanmar
Engine Model
John Deere PowerTech 3029
4TNV86CT-MJT
Engine Type
Diesel, turbocharged, liquid-cooled
Turbocharged 4-cylinder Diesel
No. of Cylinders
3
4
Displacement
179 in³
127.6 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
50 hp
50.8 hp
PTO Power
37 hp
42.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry Type Air Cleaner with Safety Element
Dual element (dry type with safety element)
Fuel System
Not Published
High-pressure common rail direct injection
Alternator
40 A
75 A
Pump Type
Not Published
Dual Independent
Implement Flow
11.4 gpm
10.2 gpm
Steering Flow
6.8 gpm
5.7 gpm
Total Hydraulic Flow
18.2 gpm
15.9 gpm
Overall Hydraulic Pump Flow
18.2 gpm
15.9 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
2
Up to 3 rear remote control valves
Fuel Tank Capacity
19.6 gal
13 gal
Coolant Capacity
10 qt
6.3 qt
Crankcase Capacity
9 qt
5.7 qt
Transmission / Hydraulic System Capacity
10.3 gal
12.5 gal
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
Standard: 5.8 qt; Heavy Duty: 8.5 qt
PTO Type
Independent
Independent 540
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
No mid-PTO offered
Category, 3-Point Hitch
Category II, convertible to I
Category I
Hitch Lift Capacity
Not Published
3,130 lb
Hitch Lift Capacity (at 24”)
3,192 lb
2,500 lb
Lift Control Type
Position control with top link draft sensing
Position control
Transmission Type
SyncShuttle
12F/12R PowrReverser
No. of Speeds
9F/3R
12F/12R
Max Travel Speed (Forward)
Not Published
18.6 mph
Max Travel Speed (Reverse)
Not Published
18.6 mph
Clutch
Dry
Wet disc
Differential Lock & Limited Slip Options
Mechanical, pedal controlled
Differential lock: standard, rear
Frame Type
Not Published
ROPS - Foldable
Steering
Hydrostatic power steering
Power
Brakes
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle)
17.1 ft
Height to Top of ROPS
94.4 in
100.2 in
Height to Top of ROPS (folded)
75.8 in
80.5 in
Height to Top of Cab Model
Not Published
Not Published
Overall Length
137.8 in
130.6 in (with 3-point hitch)
Tractor Weight (Base)
2WD: 4,414 lb; MFWD: 5,401 lb
3,770 lb (operating weight)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
MFWD: 9.5-24
8.00-16 (6PR)
R1 Agricultural - Rear
13.6-28
13.6-28
R3 Turf - Front
9.5-16
27X10.50-15
R3 Turf - Rear
21.5L-16.1; 22.5LL-16.1 (Turf Special)
44X18.00-20 (4PR)
R4 Industrial - Front
12.5/80-18
10-16.5 (6PR, R4 Industrial, 2 Position)
R4 Industrial - Rear
16.9-24
16.9-24 (6PR, R4 Industrial, 2 Position)
Quick Attach Loader System
H240 (NSL or MSL); 520M
400E loader: a dealer parking kit allows the loader to be attached and detached; without it the loader is fixed and cannot be detached; optional parking stands
Loader Model
H240NSL
400E
Loader Lift Height
131 in
400E: 112 in (to pivot pin)
Loader Lift Capacity (Full Height)
3,671 lb
400E: 2,396 lb (at pivot, full height)
Loader Breakout Force
4,504 lb
400E: 3,853 lbf at pivot; 2,902 lbf at 19.7 in ahead of pivot
Warranty Length & Coverage
Not Published
Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
