John Deere 5045E vs John Deere 4052M Heavy Duty | Side-by-side comparison | ITC Resource Center
Compare Tractors

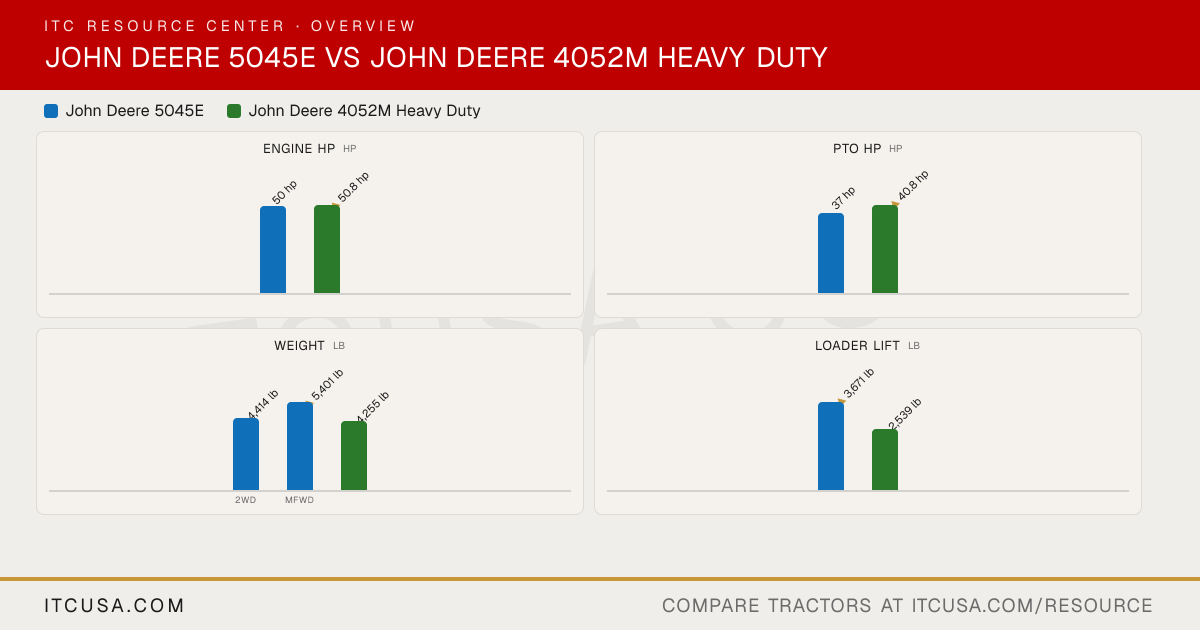

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
John Deere4052M Heavy Duty
Engine Manufacturer
John Deere
Yanmar
Engine Model
John Deere PowerTech 3029
4TNV86CT-MJT
Engine Type
Diesel, turbocharged, liquid-cooled
Turbocharged 4-cylinder Diesel
No. of Cylinders
3
4
Displacement
179 in³
127.6 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
50 hp
50.8 hp
PTO Power
37 hp
40.8 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid
Air Cleaner
Dry Type Air Cleaner with Safety Element
Dual element
Fuel System
Not Published
High-pressure common rail direct injection
Alternator
40 A
75 A
Pump Type
Not Published
Dual Independent
Implement Flow
11.4 gpm
10.2 gpm
Steering Flow
6.8 gpm
5.7 gpm
Total Hydraulic Flow
18.2 gpm
15.9 gpm
Overall Hydraulic Pump Flow
18.2 gpm
15.9 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
2
None
Fuel Tank Capacity
19.6 gal
15.0 gal
Coolant Capacity
10 qt
Not Published
Crankcase Capacity
9 qt
Not Published
Transmission / Hydraulic System Capacity
10.3 gal
12.5 gal
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
5.3 qt
PTO Type
Independent
Independent 540
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
No mid-PTO offered
Category, 3-Point Hitch
Category II, convertible to I
Category I/II
Hitch Lift Capacity
Not Published
3,130 lb
Hitch Lift Capacity (at 24”)
3,192 lb
2,500 lb
Lift Control Type
Position control with top link draft sensing
Position control
Transmission Type
SyncShuttle
eHydro (3-range hydrostatic); no PowrReverser gear option offered
No. of Speeds
9F/3R
EHydro: infinitely variable, 3-range
Max Travel Speed (Forward)
Not Published
18.6 mph
Max Travel Speed (Reverse)
Not Published
18.6 mph
Clutch
Dry
Wet; wet clutch disk diameter 5.08 in
Differential Lock & Limited Slip Options
Mechanical, pedal controlled
Differential lock: Yes
Frame Type
Not Published
ROPS - Foldable
Steering
Hydrostatic power steering
Power
Brakes
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
