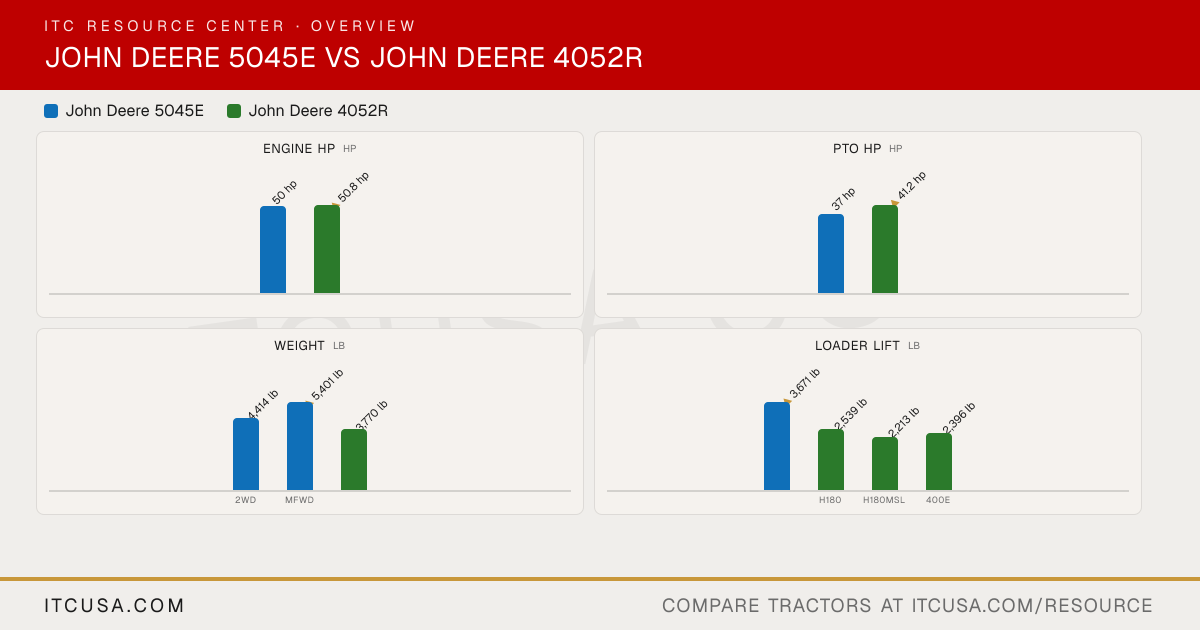

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
John Deere4052R
Engine Manufacturer
John Deere
Yanmar
Engine Model
John Deere PowerTech 3029
4TNV86CT-MJT
Engine Type
Diesel, turbocharged, liquid-cooled
Turbocharged 4-cylinder Diesel
No. of Cylinders
3
4
Displacement
179 in³
127.6 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
50 hp
50.8 hp
PTO Power
37 hp
41.2 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry Type Air Cleaner with Safety Element
Dual element (dry type with safety element)
Fuel System
Not Published
High-pressure common rail direct injection
Alternator
40 A
75 A, 12 V
Pump Type
Not Published
Dual Independent
Implement Flow
11.4 gpm
10.2 gpm
Steering Flow
6.8 gpm
5.7 gpm
Total Hydraulic Flow
18.2 gpm
15.9 gpm
Overall Hydraulic Pump Flow
18.2 gpm
15.9 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
2
3rd, 4th, and 5th optional (up to 5 total)
Fuel Tank Capacity
19.6 gal
OOS: 15 gal; Cab: 14.7 gal
Coolant Capacity
10 qt
OOS: 6.8 qt; Cab: 8.0 qt
Crankcase Capacity
9 qt
5.6 qt (with filter)
Transmission / Hydraulic System Capacity
10.3 gal
12.5 gal
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
