John Deere 5045E vs John Deere 4320 | Side-by-side comparison | ITC Resource Center
Compare Tractors

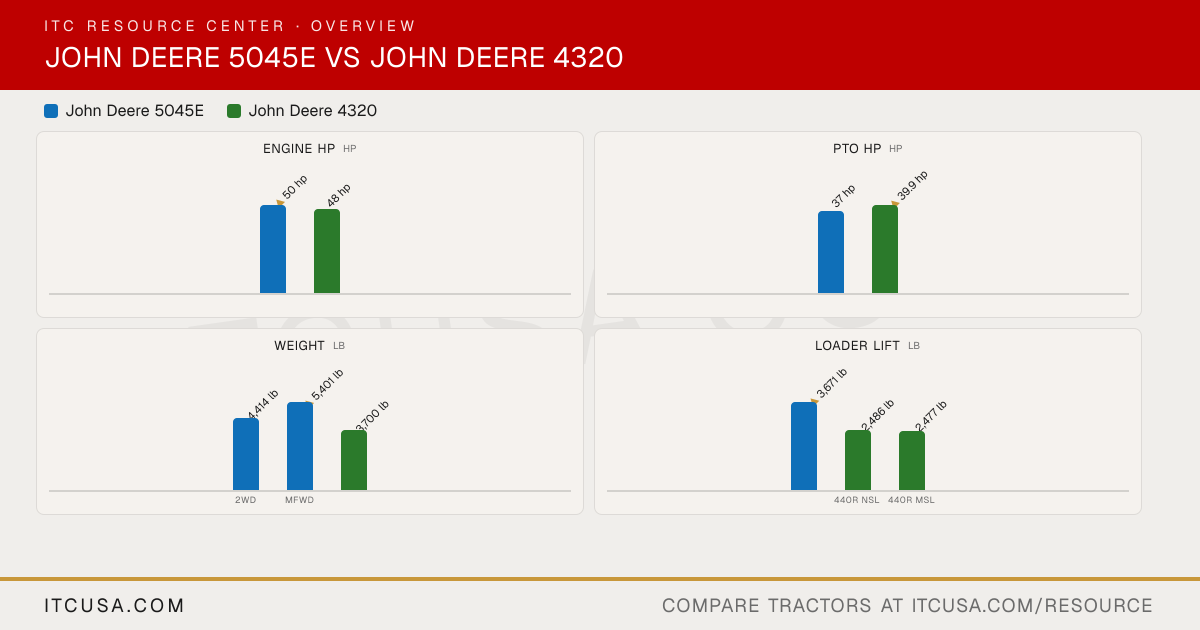

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
John Deere4320
Engine Manufacturer
John Deere
John Deere
Engine Model
John Deere PowerTech 3029
PowerTech 4024T
Engine Type
Diesel, turbocharged, liquid-cooled
4-cylinder, turbocharged, direct injection diesel
No. of Cylinders
3
4
Displacement
179 in³
149 in³
Rated Engine Speed
2100 rpm
2400 rpm
Engine Power (Gross)
50 hp
48 hp
PTO Power
37 hp
39.9 hp
Engine Emissions Constraints
Tier 4
Not Published
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry Type Air Cleaner with Safety Element
Dry type with safety element
Fuel System
Not Published
Direct injection, mechanical fuel pump
Alternator
40 A
70 A
Pump Type
Not Published
Dual tandem gear pump
Implement Flow
11.4 gpm
12 gpm
Steering Flow
6.8 gpm
5.1 gpm
Total Hydraulic Flow
18.2 gpm
17.1 gpm
Overall Hydraulic Pump Flow
18.2 gpm
17.1 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
Not Published
No. of Optional Remote Valves
2
Not Published
Fuel Tank Capacity
19.6 gal
14.5 gal (open station); 13.8 gal (cab)
Coolant Capacity
10 qt
1.6 gal (open station); 2.2 gal (cab)
Crankcase Capacity
9 qt
7.9 qt
Transmission / Hydraulic System Capacity
10.3 gal
10.3 gal (PowrReverser); 9.6 gal (eHydro)
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase
80.7 in
71.5 in
Ground Clearance
2WD: 18.8 in; MFWD: 13.4 in
Not Published
Min. Turn Radius without Brakes
11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle)
Not Published
Height to Top of ROPS
94.4 in
97.2 in
Height to Top of ROPS (folded)
75.8 in
Not Published
Height to Top of Cab Model
Not Published
92.4 in
Overall Length
137.8 in
128.2 in (with 3-point hitch)
Tractor Weight (Base)
2WD: 4,414 lb; MFWD: 5,401 lb
3,700 lb (open station); 4,345 lb (cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front
MFWD: 9.5-24
8.00-16
R1 Agricultural - Rear
13.6-28
13.6-28
R3 Turf - Front
9.5-16
27x10.5-15
R3 Turf - Rear
21.5L-16.1; 22.5LL-16.1 (Turf Special)
44x18.00-20
R4 Industrial - Front
12.5/80-18
10.00-16.5
R4 Industrial - Rear
16.9-24
17.5L-24
Quick Attach Loader System
H240 (NSL or MSL); 520M
Not Published
Loader Model
H240NSL
440R (NSL and MSL)
Loader Lift Height
131 in
440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)
3,671 lb
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
