John Deere 5045E vs Kioti NX5010CH | Side-by-side comparison | ITC Resource Center
Compare Tractors

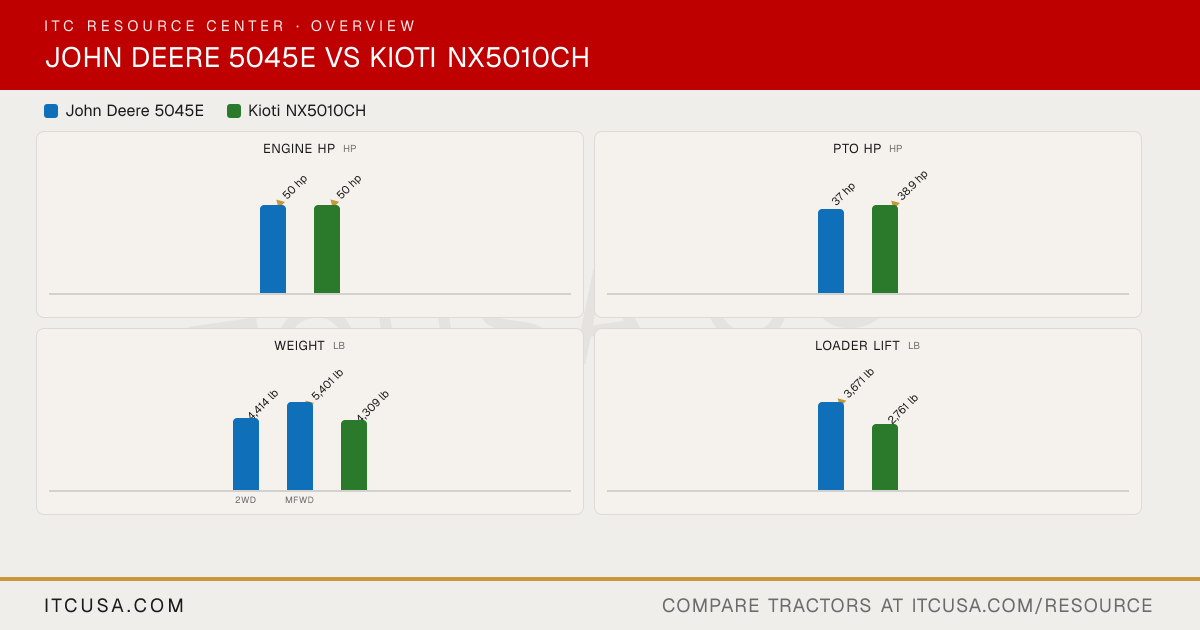

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5045E
KiotiNX5010CH
Engine Manufacturer
John Deere
KIOTI
Engine Model
John Deere PowerTech 3029
3F183T
Engine Type
Diesel, turbocharged, liquid-cooled
3-cylinder, in-line vertical, water-cooled, 4-cycle, turbocharged, common rail diesel
No. of Cylinders
3
3
Displacement
179 in³
111.4 in³
Rated Engine Speed
2100 rpm
2600 rpm
Engine Power (Gross)
50 hp
50 hp
PTO Power
37 hp
38.9 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Dry Type Air Cleaner with Safety Element
Dry type element
Fuel System
Not Published
Common Rail Diesel (CRDI)
Alternator
40 A
Not Published
Pump Type
Not Published
Gear
Implement Flow
11.4 gpm
Not Published
Steering Flow
6.8 gpm
Not Published
Total Hydraulic Flow
18.2 gpm
17.9 gpm
Overall Hydraulic Pump Flow
18.2 gpm
17.9 gpm
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
1
No. of Optional Remote Valves
2
1
Fuel Tank Capacity
19.6 gal
14.8 gal
Coolant Capacity
10 qt
2.0 gal
Crankcase Capacity
9 qt
1.58 gal
Transmission / Hydraulic System Capacity
10.3 gal
11.89 gal
Front Axle Fluid Capacity
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
1.8 gal
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional (2,000 rpm)
Category, 3-Point Hitch
Category II, convertible to I
Category I
Hitch Lift Capacity
Not Published
3,538 lb
Hitch Lift Capacity (at 24”)
3,192 lb
3,177 lb
Lift Control Type
Position control with top link draft sensing
Position with Draft Control
Transmission Type
SyncShuttle
Hydrostatic
No. of Speeds
9F/3R
3 Range
Max Travel Speed (Forward)
Not Published
16.52 mph
Max Travel Speed (Reverse)
Not Published
16.52 mph
Clutch
Dry
Not Published
Differential Lock & Limited Slip Options
Mechanical, pedal controlled
Differential Lock: Rear (Standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic Power Steering
Brakes
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
