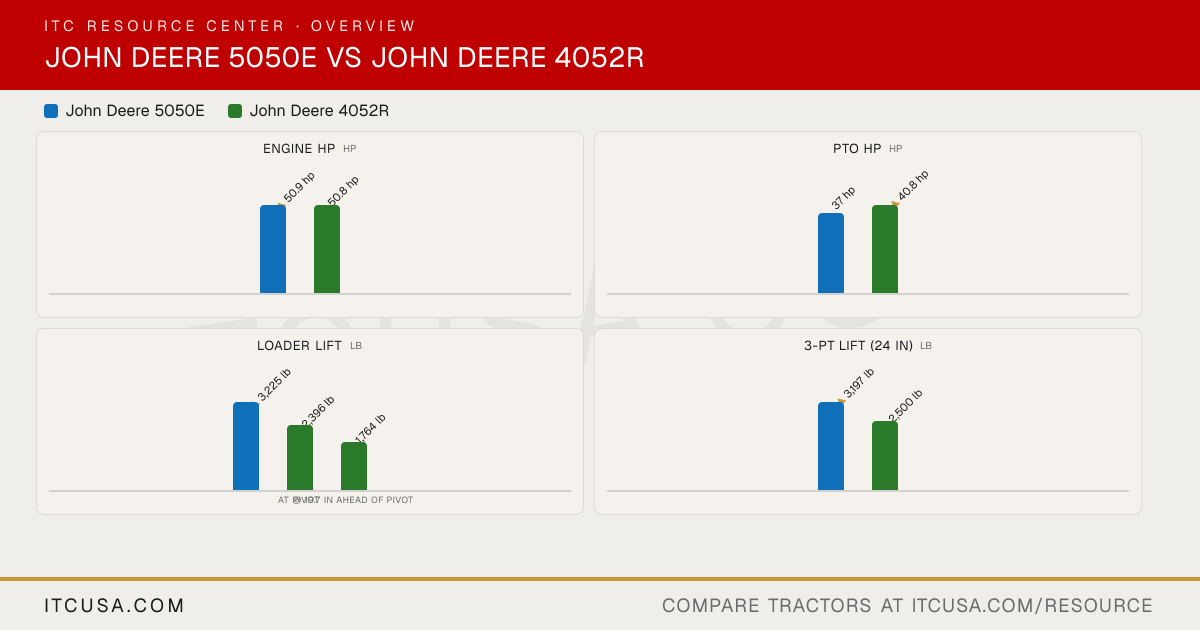

▶ EngineEngine Manufacturer John Deere Yanmar Engine Model PowerTech 3029 (2.9L) EWR 4TNV86CT-MJT Engine Type Diesel, turbocharged Turbocharged 4-cylinder Diesel No. of Cylinders 3 4 Displacement 179 in³ 127.6 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 50 hp 50.8 hp PTO Power 38 hp 41.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled with overflow reservoir Liquid-cooled Air Cleaner Dry type with safety element Dual element (dry type with safety element) Fuel System Electronically controlled, high-pressure common rail High-pressure common rail direct injection Alternator 70 A 75 A, 12 V ▶ HydraulicsPump Type Tandem gear pump (implement + steering) Dual Independent Implement Flow 11.4 gpm 10.2 gpm Steering Flow 6.8 gpm 5.7 gpm Total Hydraulic Flow 18.2 gpm 15.9 gpm Overall Hydraulic Pump Flow 18.2 gpm 15.9 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow 11.4 gpm at a single rear SCV Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves Not Published 3rd, 4th, and 5th optional (up to 5 total) ▶ Fluid CapacityFuel Tank Capacity 19 gal OOS: 15 gal; Cab: 14.7 gal Coolant Capacity Not Published OOS: 6.8 qt; Cab: 8.0 qt Crankcase Capacity 9.0 qt (with filter) 5.6 qt (with filter) Transmission / Hydraulic System Capacity Not Published 12.5 gal Front Axle Fluid Capacity MFWD (Dana axle): 1.18 gal differential; 0.21 gal each wheel hub 5.3 qt ▶ PTO & HitchPTO Type Independent, mechanical engagement Independent, 540 rpm (wet disc clutch) PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch Category II, convertible to I Category I Hitch Lift Capacity 3,968 lb 3,130 lb Hitch Lift Capacity (at 24”) 3,192 lb 2,500 lb Lift Control Type Position control, draft control, adjustable rate of drop Position control ▶ Transmission & DrivetrainTransmission Type SyncShuttle Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser No. of Speeds 9F/3R Infinitely-variable, 3 range Max Travel Speed (Forward) Not Published 18.6 mph Max Travel Speed (Reverse) Not Published 18.6 mph Clutch Dry Wet disc (PowrReverser); n/a (eHydro) Differential Lock & Limited Slip Options Mechanical, rear Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published ROPS - Foldable Steering Hydrostatic power steering Power Brakes Hydraulically actuated wet disc brakes, self-equalizing and self-adjusting Wet disc Seat Suspension & Adjustability Deluxe adjustable vinyl seat with retractable seat belt Deluxe adjustable vinyl seat with armrests and swivel Front Axle Type 2WD or MFWD Mechanical front wheel drive (MFWD) - Standard Front Axle Rating Not Published (Continuous) 3,307 lb Drawbar Capacity 1,675 lb (fully extended); 2,470 lb (short position) Max vertical load 1,103 lb ▶ Dimensions & ManeuverabilityOverall Width Not Published 78.2 in Wheelbase 80.7 in 73.0 in Ground Clearance Not Published Front axle: 15.6 in Min. Turn Radius without Brakes 11.5 ft (2WD); 15.3 ft (MFWD) 17.1 ft Height to Top of ROPS Not Published 100.2 in Height to Top of ROPS (folded) Not Published 80.5 in Height to Top of Cab Model Not Published 97.4 in Overall Length 144.5 in 130.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 5,335 to 5,809 lb (shipping weight) 3,770 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front MFWD: 9.5-24; 11.2-24; 12.4-24 8-16 (6PR) R1 Agricultural - Rear 14.9-28 13.6-28 R3 Turf - Front Not Published 27X10.50-15 R3 Turf - Rear Not Published 44X18.00-20 (4PR) R4 Industrial - Front Not Published 10-16.5 (6PR) R4 Industrial - Rear Not Published 16.9-24 (6PR) ▶ Loader & AttachmentsQuick Attach Loader System 520M and H240 loaders (Loader Prep Package includes loader mounting frames and hood guard); not compatible with the 512 loader Quik-Park easy-to-attach/detach loader Loader Model 500E, 500M or 520M 440R or 440R MSL; 400E on open-station tractors Loader Lift Height 500M: 124 in 440R: 110 in; 400E: 112 in (to pivot pin) Loader Lift Capacity (Full Height) 500M: 3,225 lb (at pivot, full height) 440R (H180): 2,539 lb; 440R MSL (H180MSL): 2,213 lb; 400E: 2,396 lb (at pivot, full height) Loader Breakout Force 500M: 4,354 lb (at pivot) 400E: 3,853 lbf at pivot; 2,902 lbf at 500 mm forward of pivot; 440R (non self-leveling): 4,027 lbf at pivot; 3,037 lbf at 500 mm forward of pivot ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours
