John Deere 5050E vs John Deere 5045E | Side-by-side comparison | ITC Resource Center
Compare Tractors

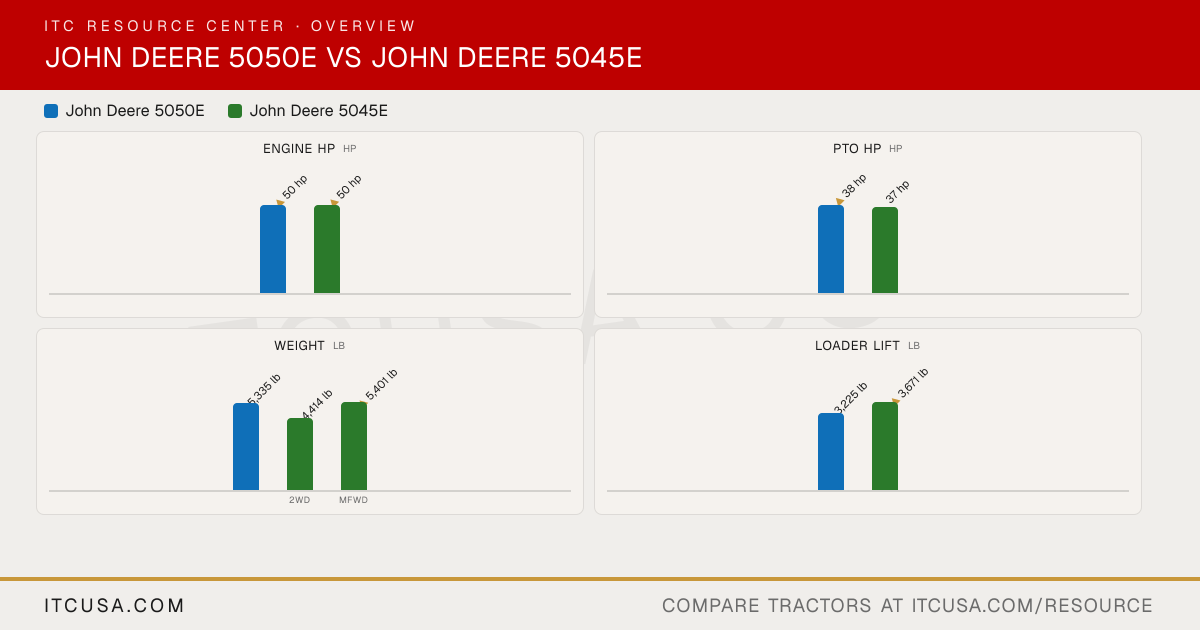

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5050E
John Deere5045E
Engine Manufacturer
John Deere
John Deere
Engine Model
PowerTech 3029 (2.9L) EWR
John Deere PowerTech 3029
Engine Type
Diesel, turbocharged
Diesel, turbocharged, liquid-cooled
No. of Cylinders
3
3
Displacement
179 in³
179 in³
Rated Engine Speed
2100 rpm
2100 rpm
Engine Power (Gross)
50 hp
50 hp
PTO Power
38 hp
37 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid cooled with overflow reservoir
Liquid-cooled
Air Cleaner
Dry type with safety element
Dry Type Air Cleaner with Safety Element
Fuel System
Electronically controlled, high-pressure common rail
Not Published
Alternator
70 A
40 A
Pump Type
Tandem gear pump (implement + steering)
Not Published
Implement Flow
11.4 gpm
11.4 gpm
Steering Flow
6.8 gpm
6.8 gpm
Total Hydraulic Flow
18.2 gpm
18.2 gpm
Overall Hydraulic Pump Flow
18.2 gpm
18.2 gpm
Hydraulic System Type
Open Center
Open Center
Rear Remote Hydraulic Flow
11.4 gpm at a single rear SCV
Not Published
No. of Standard Remote Valves
1
1
No. of Optional Remote Valves
Not Published
2
Fuel Tank Capacity
19 gal
19.6 gal
Coolant Capacity
Not Published
10 qt
Crankcase Capacity
9.0 qt (with filter)
9 qt
Transmission / Hydraulic System Capacity
Not Published
10.3 gal
Front Axle Fluid Capacity
MFWD (Dana axle): 1.18 gal differential; 0.21 gal each wheel hub
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
PTO Type
Independent, mechanical engagement
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II, convertible to I
Category II, convertible to I
Hitch Lift Capacity
3,968 lb
Not Published
Hitch Lift Capacity (at 24”)
3,192 lb
3,192 lb
Lift Control Type
Position control, draft control, adjustable rate of drop
Position control with top link draft sensing
Transmission Type
SyncShuttle
SyncShuttle
No. of Speeds
9F/3R
9F/3R
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Dry
Dry
Differential Lock & Limited Slip Options
Mechanical, rear
Mechanical, pedal controlled
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Hydraulically actuated wet disc brakes, self-equalizing and self-adjusting
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
Seat Suspension & Adjustability
Deluxe adjustable vinyl seat with retractable seat belt
