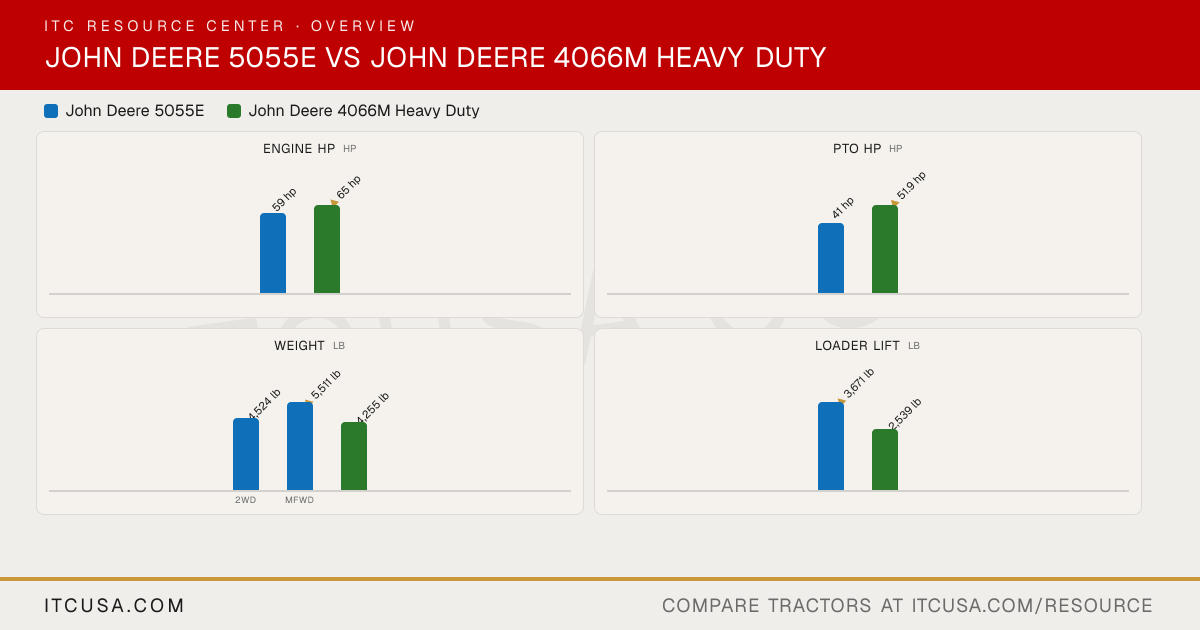

▶ EngineEngine Manufacturer John Deere Yanmar Engine Model John Deere PowerTech 3029 4TNV86CHT-MJT Engine Type Diesel, turbocharged, liquid-cooled Turbocharged 4-cylinder Diesel No. of Cylinders 3 4 Displacement 179 in³ 127.6 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 59 hp 65 hp PTO Power 41 hp 51.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Dry type, dual element (primary and secondary) Dual element Fuel System Not Published High-pressure common rail direct injection Alternator 40 A 75 A ▶ HydraulicsPump Type Not Published Dual Independent Implement Flow 11.4 gpm 10.2 gpm Steering Flow 6.8 gpm 5.7 gpm Total Hydraulic Flow 18.2 gpm 15.9 gpm Overall Hydraulic Pump Flow 18.2 gpm 15.9 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity OOS: 19.6 gal; Cab: 21.6 gal 15.0 gal Coolant Capacity 10 qt Not Published Crankcase Capacity 9 qt 5.6 qt Transmission / Hydraulic System Capacity 10.3 gal 12.5 gal Front Axle Fluid Capacity Dana axle: differential housing 1.18 gal, wheel hub (each) 0.21 gal; Carraro axle: differential housing 1.03 gal, reduction gear oil (each side) 0.15 gal Not Published ▶ PTO & HitchPTO Type Independent; mechanical engagement (SyncShuttle); electrohydraulic engagement (PowrReverser) Independent, 540 rpm PTO Rear 540 rpm (540E optional with PowrReverser) 540 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch Category II, convertible to I Category I/II Hitch Lift Capacity Not Published 3,130 lb Hitch Lift Capacity (at 24”) 3,192 lb 2,500 lb Lift Control Type Position control with top link draft sensing Position control ▶ Transmission & DrivetrainTransmission Type SyncShuttle (standard); PowrReverser (optional) eHydro (3-range hydrostatic); no PowrReverser gear option offered No. of Speeds 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) EHydro: infinitely variable, 3-range Max Travel Speed (Forward) Not Published 18.6 mph Max Travel Speed (Reverse) Not Published 18.6 mph Clutch Dry (SyncShuttle); wet (12F/12R PowrReverser) n/a Differential Lock & Limited Slip Options Differential lock, standard; pedal-operated, mechanical Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published ROPS - Foldable Steering Power steering Power Brakes Hydraulic wet disc brakes Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 2WD or MFWD Mechanical front wheel drive (MFWD) - Standard Front Axle Rating Not Published (Continuous) 3,307 lb Drawbar Capacity 1,675 lb (fully extended); 2,470 lb (short position) Not Published ▶ Dimensions & ManeuverabilityOverall Width 57.3 in 71.3 in Wheelbase 80.7 in 73.0 in Ground Clearance 2WD: 18.8 in; MFWD: 13.4 in Not Published Min. Turn Radius without Brakes 11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle) Not Published Height to Top of ROPS 96.4 in Not Published Height to Top of ROPS (folded) 77.1 in Not Published Height to Top of Cab Model 94.3 in Not Published Overall Length 137.8 in 134.7 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 2WD: 4,524 lb; MFWD: 5,511 lb 4,255 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R4 Industrial R1 Agricultural - Front MFWD: 9.5-24; 280/85R24 (11.2R24) R1W Radial Not Published R1 Agricultural - Rear 14.9-28 Not Published R3 Turf - Front 9.5-16 Not Published R3 Turf - Rear 21.5L-16.1; 22.5LL-16.1 (Turf Special) Not Published R4 Industrial - Front 12.5/80-18 31.5x13-16.5 (10PR) R4 Industrial - Rear 16.9-24 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System 520M; H240 (NSL or MSL) Not Published Loader Model H240NSL 440R Quik-Park loader; 440R Mechanical Self-Leveling (MSL) option Loader Lift Height 131 in 440R: 110 in (to pivot pin) Loader Lift Capacity (Full Height) 3,671 lb (H240NSL, at pivot) 440R: 2,539 lb (at pivot, full height) Loader Breakout Force 4,504 lb (H240NSL, at pivot) 440R: 4,027 lbf at pivot; 3,037 lbf at 19.7 in ahead of pivot ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours
