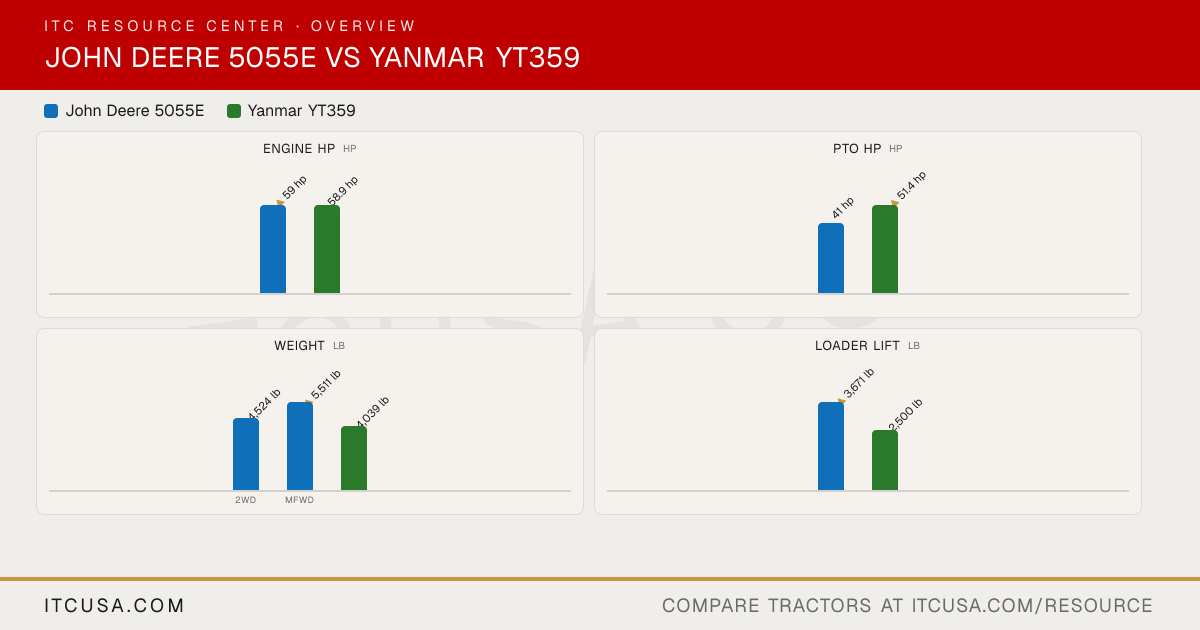

▶ EngineEngine Manufacturer John Deere YANMAR Engine Model John Deere PowerTech 3029 4TNV98C Engine Type Diesel, turbocharged, liquid-cooled 4-cylinder, naturally aspirated diesel No. of Cylinders 3 4 Displacement 179 in³ 202.5 in³ Rated Engine Speed 2100 rpm 2500 rpm Engine Power (Gross) 59 hp 58.9 hp PTO Power 41 hp 51.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Dry type, dual element (primary and secondary) Dual stage cyclonic (resin 6.5") Fuel System Not Published Common rail direct injection Alternator 40 A 55 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11.4 gpm 9.4 gpm Steering Flow 6.8 gpm 5.3 gpm Total Hydraulic Flow 18.2 gpm 14.7 gpm (9.4 + 5.3, computed) Overall Hydraulic Pump Flow 18.2 gpm 14.7 gpm (9.4 + 5.3, computed) Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 1 ▶ Fluid CapacityFuel Tank Capacity OOS: 19.6 gal; Cab: 21.6 gal 12.7 gal Coolant Capacity 10 qt 7.8 qt Crankcase Capacity 9 qt 8.0 qt Transmission / Hydraulic System Capacity 10.3 gal 7.7 gal Front Axle Fluid Capacity Dana axle: differential housing 1.18 gal, wheel hub (each) 0.21 gal; Carraro axle: differential housing 1.03 gal, reduction gear oil (each side) 0.15 gal 2.4 gal ▶ PTO & HitchPTO Type Independent; mechanical engagement (SyncShuttle); electrohydraulic engagement (PowrReverser) Independent (electro-hydraulic) PTO Rear 540 rpm (540E optional with PowrReverser) 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II, convertible to I Category I Hitch Lift Capacity Not Published 3,307 lb Hitch Lift Capacity (at 24”) 3,192 lb 2,756 lb Lift Control Type Position control with top link draft sensing Position control ▶ Transmission & DrivetrainTransmission Type SyncShuttle (standard); PowrReverser (optional) I-HMT (Integrated Hydro Mechanical Transmission) No. of Speeds 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) 3 ranges (variable speed) Max Travel Speed (Forward) Not Published 18 mph (with R1 tires) Max Travel Speed (Reverse) Not Published 18 mph (with R1 tires) Clutch Dry (SyncShuttle); wet (12F/12R PowrReverser) Clutch-less shifting (i-HMT) Differential Lock & Limited Slip Options Differential lock, standard; pedal-operated, mechanical Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Fully hydraulic power steering Brakes Hydraulic wet disc brakes Mechanical wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 2WD or MFWD 2WD/4WD selectable engagement Front Axle Rating Not Published Not Published Drawbar Capacity 1,675 lb (fully extended); 2,470 lb (short position) Not Published ▶ Dimensions & ManeuverabilityOverall Width 57.3 in 70.6 in (with R4 tires) Wheelbase 80.7 in 77.4 in Ground Clearance 2WD: 18.8 in; MFWD: 13.4 in 12.8 in (with R4 tires) Min. Turn Radius without Brakes 11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle) Not Published Height to Top of ROPS 96.4 in 95.7 in (with R4 tires) Height to Top of ROPS (folded) 77.1 in Not Published Height to Top of Cab Model 94.3 in Not Published Overall Length 137.8 in 132.1 in (with 3-point hitch and R4 tires) ▶ WeightTractor Weight (Base) 2WD: 4,524 lb; MFWD: 5,511 lb 4,039 lb (with ROPS, R4 tires, full fluid) Weight with ROPS and Loader Not Published 5,135 lb (4,039 + 1,096, computed) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front MFWD: 9.5-24; 280/85R24 (11.2R24) R1W Radial 8-16 R1 Agricultural - Rear 14.9-28 14.9-24 R3 Turf - Front 9.5-16 27x10.5-15 R3 Turf - Rear 21.5L-16.1; 22.5LL-16.1 (Turf Special) 44x18-20 R4 Industrial - Front 12.5/80-18 10-16.5 R4 Industrial - Rear 16.9-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System 520M; H240 (NSL or MSL) YL610: Skid-steer-style loader quick attachment system Loader Model H240NSL YL610 Loader Lift Height 131 in YL610: 113 in (to bucket pivot pin) Loader Lift Capacity (Full Height) 3,671 lb (H240NSL, at pivot) YL610: 2,500 lb at pivot pins Loader Breakout Force 4,504 lb (H240NSL, at pivot) YL610: 3,969 lb at pivot pins ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours; powertrain 10 years or 3,000 hours; attachments 1 year
