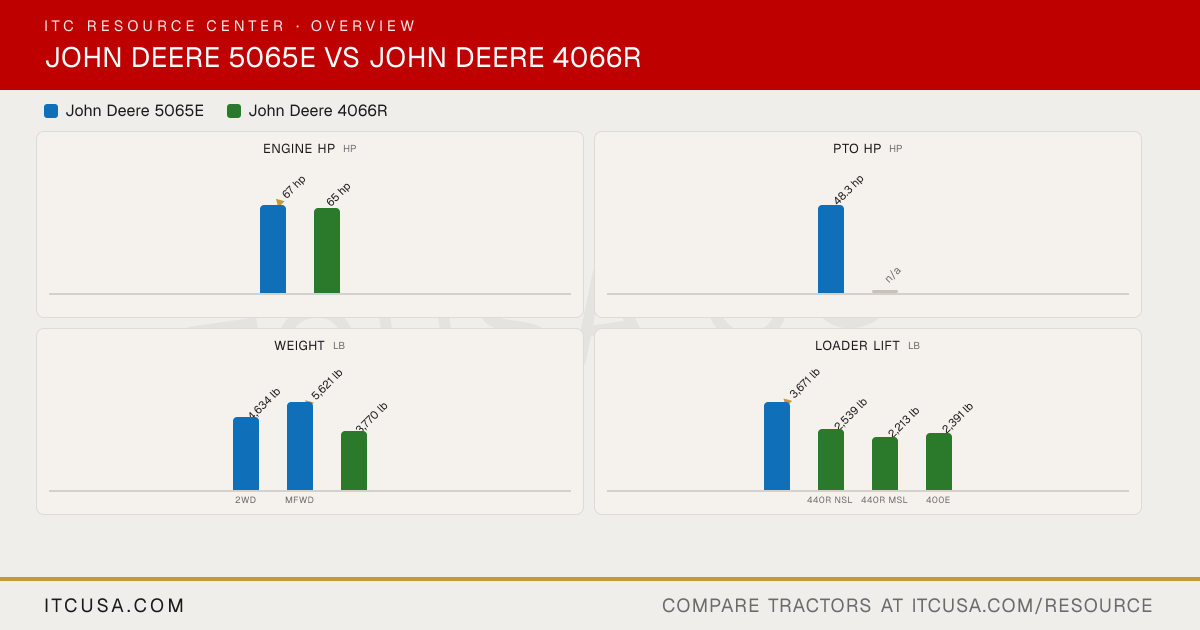

▶ EngineEngine Manufacturer John Deere Yanmar Engine Model John Deere PowerTech 3029 4TNV86CHT-MJT Engine Type Diesel, turbocharged, liquid-cooled Turbocharged 4-cylinder Diesel No. of Cylinders 3 4 Displacement 179 in³ 127.6 in³ Rated Engine Speed 2100 rpm 2600 rpm Engine Power (Gross) 67 hp 65 hp PTO Power 48.3 hp PowrReverser (Gear): 58 hp; eHydro: 57 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Two paper elements Dual element (dry type with safety element) Fuel System Not Published High-pressure common rail direct injection Alternator 40 A 75 A, 12 V ▶ HydraulicsPump Type Not Published Dual Independent Implement Flow 11.4 gpm 10.2 gpm Steering Flow 6.8 gpm 5.7 gpm Total Hydraulic Flow 18.2 gpm 15.9 gpm Overall Hydraulic Pump Flow 18.2 gpm 15.9 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 2 3rd, 4th, and 5th optional (up to 5 total) ▶ Fluid CapacityFuel Tank Capacity 19.6 gal ROPS: 15.0 gal; Cab: 13.8 gal Coolant Capacity 10 qt OOS: 6.8 qt; Cab: 8.0 qt Crankcase Capacity 9 qt 5.6 qt (with filter) Transmission / Hydraulic System Capacity 2WD: 10 gal; 4WD: 10.3 gal 12.5 gal Front Axle Fluid Capacity 4.8 qt 5.3 qt ▶ PTO & HitchPTO Type OOS: independent, mechanical actuation; Cab: independent, mechanical or electrohydraulic actuation Independent, 540 rpm (wet disc clutch) PTO Rear 540 rpm (540E optional with PowrReverser) 540 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch Category II, convertible to I Category I Hitch Lift Capacity Not Published 3,130 lb Hitch Lift Capacity (at 24”) 3,192 lb 2,500 lb Lift Control Type Position control with top link draft sensing Position control ▶ Transmission & DrivetrainTransmission Type SyncShuttle (standard); PowrReverser (optional) Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser No. of Speeds 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) Infinitely-variable, 3 range Max Travel Speed (Forward) Not Published 18.6 mph Max Travel Speed (Reverse) Not Published 18.6 mph Clutch Dry (SyncShuttle); dry or wet (12F/12R PowrReverser) Wet disc (PowrReverser); n/a (eHydro) Differential Lock & Limited Slip Options Rear diff lock, standard Differential lock: standard, rear, mechanical ▶ Chassis, Steering & ControlsFrame Type Not Published ROPS - Foldable Steering Power steering Power steering (hydrostatic) Brakes Hydraulic wet disc brakes Wet disc Seat Suspension & Adjustability Not Published Air suspension seat with swivel Front Axle Type 2WD or MFWD Mechanical front wheel drive (MFWD) - Standard Front Axle Rating Not Published (Continuous) 3,307 lb Drawbar Capacity Not Published Max vertical load 1,103 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 137.8 in 130.6 in Overall Width 57.3 in 78.2 in Wheelbase 80.7 in 73.0 in Ground Clearance 2WD: 18.8 in; MFWD: 13.4 in Front axle: 13.8 in Min. Turn Radius without Brakes 138 in Not Published Height to Top of ROPS 98.4 in 100.2 in Height to Top of ROPS (folded) 78.5 in 80.5 in Height to Top of Cab Model 95.6 in 97.4 in ▶ WeightTractor Weight (Base) 2WD: 4,634 lb; MFWD: 5,621 lb 3,770 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 2WD: 7.5-16; MFWD: 9.5-24 8.00-16 (6PR) R1 Agricultural - Rear 16.9-28 13.6-28 R3 Turf - Front 9.5-16 (4WD) 27X10.50-15 R3 Turf - Rear 21.5L-16.1; 22.5LL-16.1 (Turf Special) 44X18.00-20 (4PR) R4 Industrial - Front 12.5-80-18 (4WD) 260/70D16.5 R4 Industrial - Rear 16.9-24 420/85D24 ▶ Loader & AttachmentsQuick Attach Loader System H240 (NSL or MSL) Rigid-mounted; parking stand kit BW16127 available Loader Model H240NSL 440R or 440R MSL (formerly H180 / H180MSL); 400E on open-station tractors Loader Lift Height 131 in 440R: 110 in; 400E: 112 in (to pivot pin) Loader Lift Capacity (Full Height) 3,671 lb 440R (H180): 2,539 lb; 440R MSL (H180MSL): 2,213 lb; 400E: 2,391 lb (at pivot, full height) Loader Breakout Force 4,504 lb 400E: 3,853 lbf at pivot; 2,902 lbf at 19.7 in ahead of pivot; 440R: 4,027 lbf at pivot; 3,037 lbf at 19.7 in ahead of pivot ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
