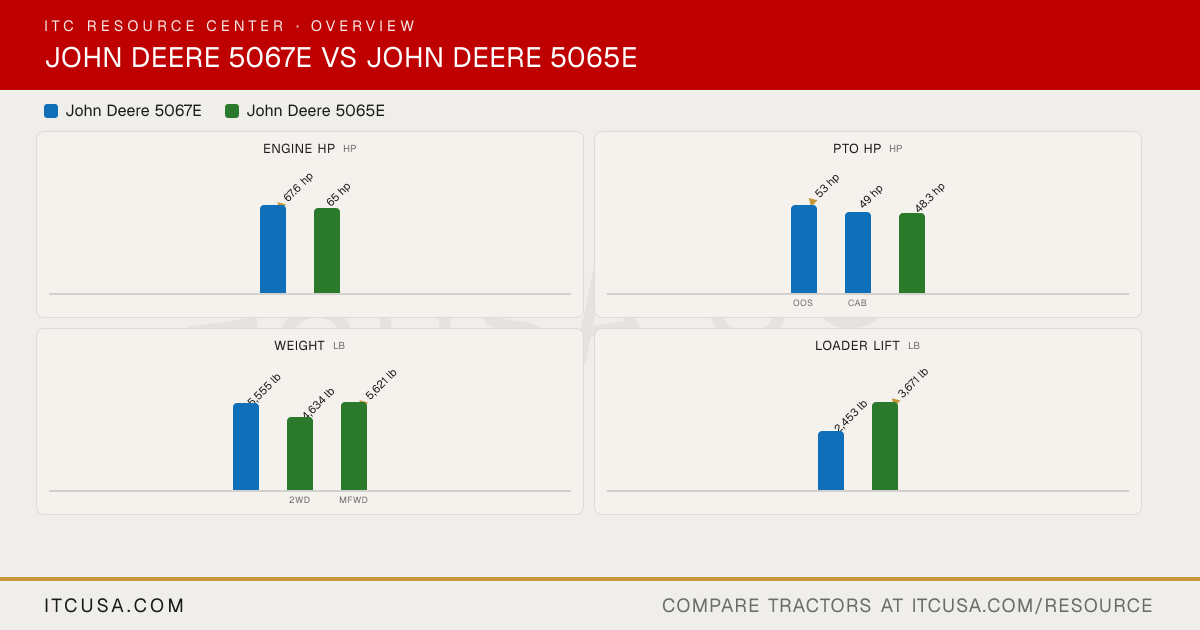

▶ EngineEngine Manufacturer John Deere John Deere Engine Model 3029H PowerTech 3029H Engine Type Diesel, turbocharged Diesel, turbocharged, liquid-cooled No. of Cylinders 3 3 Displacement 179 in³ 179 in³ Rated Engine Speed 2100 rpm 2100 rpm Engine Power (Gross) 67.6 hp 65 hp PTO Power OOS: 53 hp; Cab: 49 hp 48.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid cooled with overflow reservoir Liquid-cooled Air Cleaner Dry type with safety element Two paper elements Fuel System Electronically controlled, high-pressure common rail Not Published Alternator OOS: 70 A; Cab: 110 A 40 A ▶ HydraulicsPump Type Tandem gear pump (implement + steering) Not Published Implement Flow 11.4 gpm 11.4 gpm Steering Flow 6.8 gpm 6.8 gpm Total Hydraulic Flow 18.2 gpm 18.2 gpm Overall Hydraulic Pump Flow 18.2 gpm 18.2 gpm Hydraulic System Type Open Center Open Center Rear Remote Hydraulic Flow 11.4 gpm at a single rear SCV Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves 2 2 ▶ Fluid CapacityFuel Tank Capacity OOS: 19.6 gal; Cab: 21.6 gal OOS: 18.0 gal; Cab: 21.6 gal Coolant Capacity Open operator station: 2.85 gal; Cab: 3.08 gal Not Published Crankcase Capacity 9.0 qt (with filter) 9 qt Transmission / Hydraulic System Capacity 8.36 gal (9x3); 9.46 gal (12x12) 2WD: 10 gal; 4WD: 10.3 gal Front Axle Fluid Capacity DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side 4.8 qt ▶ PTO & HitchPTO Type Independent OOS: Independent, mechanical actuation; Cab: Independent, mechanical or electrohydraulic actuation PTO Rear 540 rpm (SyncShuttle); 540/540E rpm (PowrReverser) 540 rpm (540E optional with PowrReverser) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II, convertible to I Category II, convertible to I Hitch Lift Capacity 3,968 lb Not Published Hitch Lift Capacity (at 24”) 3,192 lb 3,192 lb Lift Control Type Position control, draft control, adjustable rate of drop Position control with top link draft sensing ▶ Transmission & DrivetrainTransmission Type SyncShuttle (standard); PowrReverser (optional) SyncShuttle (standard); PowrReverser (optional) No. of Speeds 9F/3R (SyncShuttle); 12F/12R (PowrReverser) 9F/3R (SyncShuttle); 12F/12R (PowrReverser optional) Max Travel Speed (Forward) 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) Not Published Max Travel Speed (Reverse) 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) Not Published Clutch Dual clutch, 11 in (PowrReverser) Dry (SyncShuttle); Dry/Wet with 12F/12R PowrReverser Differential Lock & Limited Slip Options Mechanical, rear Rear diff lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Hydraulically actuated wet disk brakes, self-equalizing and self-adjusting Hydraulic wet disc brakes Seat Suspension & Adjustability Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment Not Published Front Axle Type 2WD or MFWD 2WD or MFWD Front Axle Rating Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) Not Published Drawbar Capacity Adjustable drawbar with interchangeable hitch balls Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 143.3 in 137.8 in Overall Width Not Published 57.3 in Wheelbase 80.7 in 80.7 in Ground Clearance Not Published 2WD: 18.8 in; MFWD: 13.4 in Min. Turn Radius without Brakes 137.8 in (2WD); 183.1 in (4WD) 138 in Height to Top of ROPS Not Published 98.4 in Height to Top of ROPS (folded) Not Published 78.5 in Height to Top of Cab Model Not Published 95.6 in ▶ WeightTractor Weight (Base) 5,555 to 6,812 lb 2WD: 4,634 lb; MFWD: 5,621 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 7,165 lb ▶ Tire OptionsTire Size & Options R1 Ag / R3 Turf / R4 Industrial / Snow Not Published R1 Agricultural - Front 11L-15 2WD: 7.5-16; MFWD: 9.5-24 R1 Agricultural - Rear 16.9-28 16.9-28 R3 Turf - Front 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) 9.5-16 (4WD) R3 Turf - Rear 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) 21.5L-16.1 R4 Industrial - Front 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 12.5-80-18 (4WD) R4 Industrial - Rear 17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System 512 or 520M H240 (NSL or MSL) Loader Model 512 or 520M H240NSL Loader Lift Height 512: 113 in; 520M: 132 in 131 in Loader Lift Capacity (Full Height) 512: 2,453 lb; 520M: 3,523 lb 3,671 lb Loader Breakout Force 512: 4,781 lb; 520M: 4,641 lb 4,504 lb ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) Not Published
