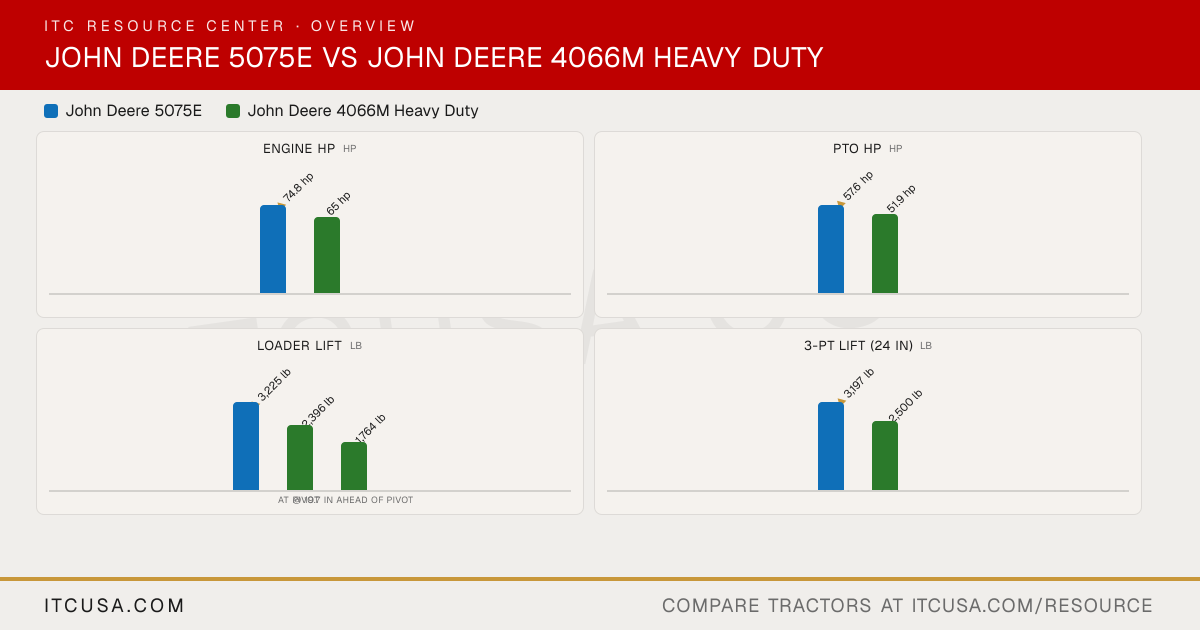

▶ EnginePTO Power 57.6 hp 51.9 hp Alternator 60 A, 12 V 75 A, 12 V Air Cleaner Dry type air cleaner with safety element Dual element Engine Type Diesel, turbocharged and aftercooled Diesel Fuel System Electronically controlled, high-pressure common rail High-pressure common rail direct injection Displacement 179 in³ 127.6 in³ No. of Cylinders 3 4 Rated Engine Speed 2100 rpm 2600 rpm Cooling System Type Liquid-cooled Liquid Engine Manufacturer John Deere PowerTech 3029 EWR Yanmar Engine Power (Gross) 74.8 hp @ 100 rpm 65 hp @ 600 rpm Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ HydraulicsPump Type Tandem gear pump (implement + steering) Single gear Steering Flow 6.8 gpm 6.2 gpm Implement Flow 11.4 gpm 11.2 gpm Total Hydraulic Flow 18.2 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 11.4 gpm at a single rear SCV Not Published Overall Hydraulic Pump Flow 18.2 gpm Not Published No. of Optional Remote Valves 2 Not Published No. of Standard Remote Valves 1 2 ▶ PTO & HitchPTO Rear 540 @ 2083 engine rpm; 540E @ 1588 engine rpm 540 rpm PTO Type Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Independent (electrohydraulic) Lift Control Type Position and draft control; adjustable rate of drop Position control Hitch Lift Capacity 3,968 lb @ hitch points Not Published Mid-PTO Availability Not Applicable Available Category, 3-Point Hitch Category II; convertible to Category I Category 1/2 (telescopic) Hitch Lift Capacity (at 24”) 3,197 lb @ 24 in behind hitch balls 2,500 lb ▶ Tire OptionsR3 Turf - Rear 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) Not Published R3 Turf - Front 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Not Published Tire Size & Options R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial R4 Industrial - Rear 4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 16.9-24 (8PR) or 5.2 gal-24 (10PR) R4 Industrial - Front 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 31.5X13.00-16.5 (10PR) R1 Agricultural - Rear 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W Not Published R1 Agricultural - Front 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W Not Published ▶ Fluid CapacityCoolant Capacity Open operator station: 2.85 gal; Cab: 3.08 gal Open station: 6.8 qt; Cab: 8.0 qt (if equipped) Crankcase Capacity 9.0 qt (with filter) 5.6 qt (with filter) Fuel Tank Capacity Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal) Open station: 15.0 gal; Cab: 14.7 gal (if equipped) Front Axle Fluid Capacity DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side 5.3 qt Transmission / Hydraulic System Capacity 8.36 gal (9x3); 9.46 gal (12x12) 12.5 gal ▶ Loader & AttachmentsLoader Lift Height 124 in 112.1 in Loader Breakout Force 4,354 lb (measured at pivot) At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf Quick Attach Loader System Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable) Loader Lift Capacity (Full Height) 3,225 lb (measured at pivot) At pivot: 2,396 lb; @ 19.7 in ahead of pivot: 1,764 lb ▶ Transmission & DrivetrainClutch Dual clutch, 11 in (PowrReverser) Wet; wet clutch disk diameter 5.08 in No. of Speeds 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) eHydro: Infinitely-variable, 3 range; PowrReverser: 12F/12R Transmission Type SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional) Standard: eHydro (eHST), 3-range hydrostatic; Optional: 12/12 PowrReverser (PRT) Max Travel Speed (Forward) 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) 18.6 mph Max Travel Speed (Reverse) 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) 18.6 mph Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Differential lock: Yes ▶ Chassis, Steering & ControlsBrakes Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting) Multi-plate wet disc Steering Hydrostatic power steering Hydrostatic power steering Frame Type Not Published ROPS - Foldable Front Axle Type 2WD (standard) or MFWD (optional) Mechanical front wheel drive (MFWD) - Standard; engagement On-the-Go Drawbar Capacity 1,675 lb (fully extended); 2,470 lb (short position) Max vertical load 1103 lb Front Axle Rating Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) (Continuous) 3307 lb Seat Suspension & Adjustability Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment Not Published ▶ Dimensions & ManeuverabilityWheelbase 80.7 in 73.0 in Overall Width Not Published 71.3 in Ground Clearance Not Published Front axle: 15.2 in; Drawbar support: 14.5 in Height to Top of ROPS Not Published 91.1 in Height to Top of Cab Model Not Published Not Applicable Height to Top of ROPS (folded) Not Published 65.9 in Min. Turn Radius without Brakes 137.8 in (2WD); 183.1 in (4WD) 17.1 ft (5.2 m) Overall Length with 3-Point Hitch 143.3 in 134.7 in
