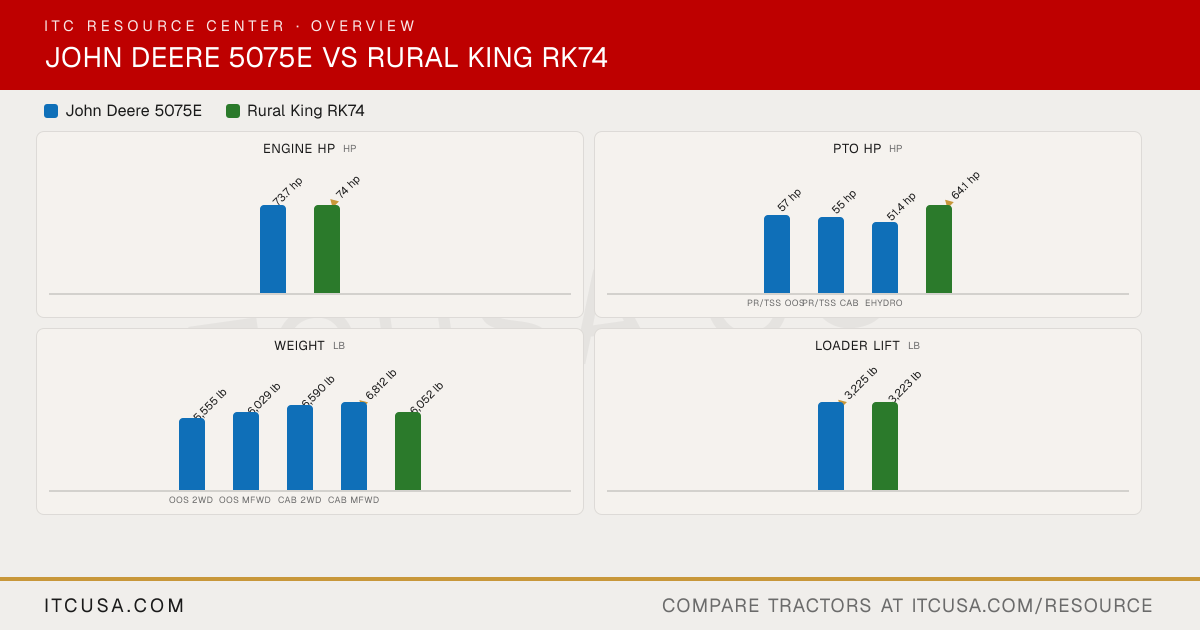

▶ EngineEngine Manufacturer John Deere Deutz Engine Model PowerTech 3029 (2.9L) EWR TCD2.9 L4 Engine Type Diesel, turbocharged Turbocharged No. of Cylinders 3 4 Displacement 179 in³ 177.0 in³ Rated Engine Speed 2100 rpm 2200 rpm Engine Power (Gross) 73.7 hp 74 hp PTO Power PR/TSS OOS: 57 hp; PR/TSS Cab: 55 hp; eHydro: 51.4 hp 64.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry type with safety element Not Published Fuel System Electronically controlled, high-pressure common rail Common Rail Direct Injection Alternator 110 A 95 A, 12 V ▶ HydraulicsPump Type PR/TSS: tandem gear pump (implement + steering); eHydro: three pumps Not Published Implement Flow 11.4 gpm 10.3 gpm Steering Flow 6.8 gpm 5.8 gpm Total Hydraulic Flow PR/TSS: 18.2 gpm; eHydro: 29.6 gpm 16.1 gpm Overall Hydraulic Pump Flow PR/TSS: 18.2 gpm; eHydro: 29.6 gpm 16.1 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow 11.4 gpm at a single rear SCV Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity OOS: 19 gal; Cab: 21 gal 23.8 gal Coolant Capacity Not Published 10.6 qt Crankcase Capacity 9.0 qt (with filter) 8.5 qt Transmission / Hydraulic System Capacity Not Published 18.0 gal Front Axle Fluid Capacity DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side 17.4 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (SyncShuttle); 540/540E rpm (PowrReverser) 540/750 rpm Mid-PTO Availability Not Published No mid-PTO offered Category, 3-Point Hitch Category II, convertible to I Category II Hitch Lift Capacity 3,968 lb @ hitch points 5,115 lb Hitch Lift Capacity (at 24”) 3,192 lb 3,414 lb Lift Control Type Position control, draft control, adjustable rate of drop Position / Draft / Mechanical ▶ Transmission & DrivetrainTransmission Type SyncShuttle (standard); PowrReverser or eHydro (optional) RK74 Power Shuttle Cab (RK74PSC): 16F/16R power shuttle with creeper; RK74 Shuttle Shift Cab: 16F/16R synchronized shuttle with creeper No. of Speeds 9F/3R (SyncShuttle); 12F/12R (PowrReverser) 16 forward, 16 reverse (creeper interlock) Max Travel Speed (Forward) 15.5 mph (SyncShuttle) 18.9 mph Max Travel Speed (Reverse) Not Published Not Published Clutch SyncShuttle: dry; PowrReverser: wet; eHydro: hydrostatic Single plate dry clutch (11.81 in diameter); hydraulic clutch assembly for Independent PTO models Differential Lock & Limited Slip Options Mechanical, rear 4WD, differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly Steering Hydrostatic power steering Hydrostatic power steering Brakes Hydraulically actuated wet disc brakes, self-equalizing and self-adjusting Wet disc Seat Suspension & Adjustability Not Published High-back suspension seat with extension Front Axle Type 2WD or MFWD Center-pivot, reverse Eliot type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Adjustable drawbar Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 76.4 in Wheelbase 80.7 in 86.1 in Ground Clearance 2WD: 18.8 in; MFWD: 13.4 in 18.3 in Min. Turn Radius without Brakes 11.5 ft (2WD); 15.3 ft (MFWD) 162.8 in Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 103.3 in Overall Length 144.5 in 157.5 in (with 3-point hitch) ▶ WeightTractor Weight (Base) OOS 2WD: 5,555 lb; OOS MFWD: 6,029 lb; Cab 2WD: 6,590 lb; Cab MFWD: 6,812 lb (shipping weight) 6,052 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Titan (USA): R4 Industrial (Std), R3 Turf (Opt), R1 Agricultural (Opt) R1 Agricultural - Front MFWD: 11.2-24; 12.4-24 11.2-24 R1 Agricultural - Rear 16.9-28 16.9-30 R3 Turf - Front Not Published 12.0-20.5 R3 Turf - Rear Not Published 22.4-25.5 R4 Industrial - Front Not Published 15-19.5 R4 Industrial - Rear Not Published 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System 520M and H240 loaders (Loader Prep Package includes loader mounting frames and hood guard); not compatible with the 512 loader L135SL: Skid-steer compatible quick coupler, self-leveling Loader Model 500E, 500M or 520M L135SL Loader Lift Height 500M: 124 in L135SL: 135.5 in Loader Lift Capacity (Full Height) 500M: 3,225 lb (at pivot, full height) L135SL: 3,223 lb at pivot pin to full height Loader Breakout Force 500M: 4,354 lb (at pivot) L135SL: 5,335 lb at pivot pin ▶ WarrantyWarranty Length & Coverage Not Published Government and non-institutional: basic 24 months or 2,000 hours, powertrain 60 months or 3,000 hours; all other use: basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours
