Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

JohnDeere5075M

n/a

NewHollandT3.80F

Comparison loaded for 2 tractors.

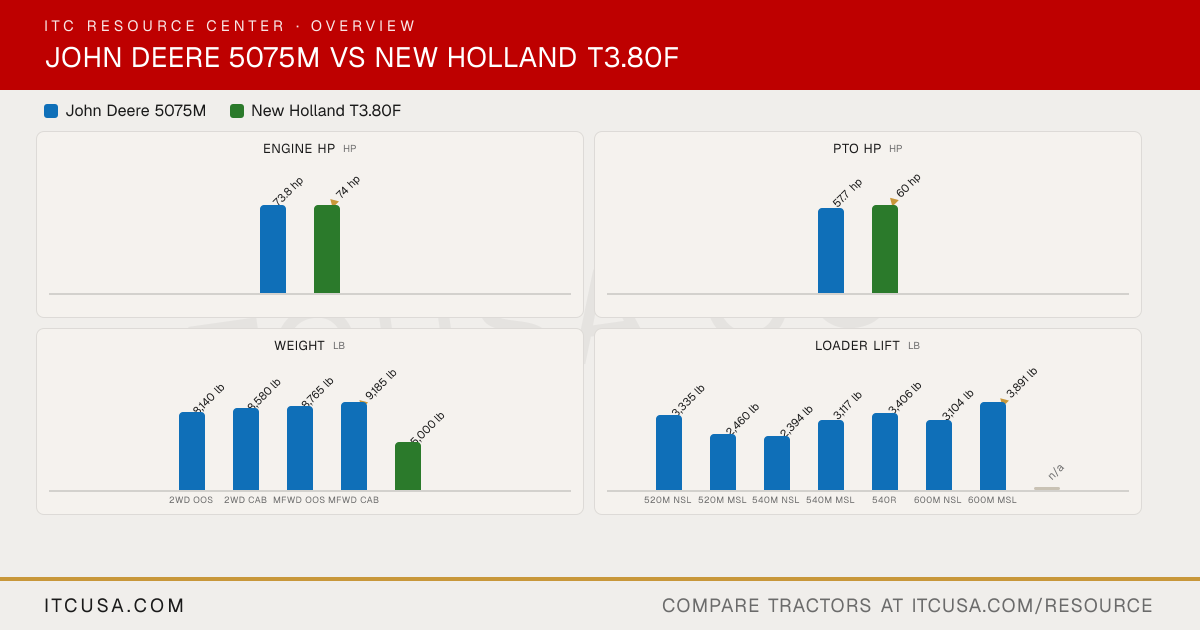

The headline numbers at a glance.

John Deere 5075MNew Holland T3.80F

Engine HPhp

73.8 hp

▲74 hp

PTO HPhp

57.7 hp

▲60 hp

Weightlb

8,140 lb

8,580 lb

8,765 lb

▲9,185 lb

5,000 lb

2WD OOS2WD CabMFWD OOSMFWD Cab

Loader Liftlb

3,335 lb

2,460 lb

2,394 lb

3,117 lb

3,406 lb

3,104 lb

▲3,891 lb

n/a

520M NSL520M MSL540M NSL540M MSL540R600M NSL600M MSL

3-Pt Lift (24 in)lb

▲5,150 lb

4,000 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5075M	New HollandT3.80F


Engine Manufacturer	John Deere	Not Published
Engine Model	PowerTech 3-cylinder (2.9 L) EWX	S8000
Engine Type	Diesel, turbocharged, aftercooled	Turbocharged, intercooled 3-cylinder diesel
No. of Cylinders	3	3
Displacement	177 in³	179 in³
Rated Engine Speed	2200 rpm	2300 rpm
Engine Power (Gross)	73.8 hp	74 hp
PTO Power	57.7 hp @ 100 rpm	60 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled (Cool-Gard II coolant)	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Common rail fuel injection
Alternator	OOS: 90 A; Cab: 120 A	Not Published

Pump Type	Tandem gear pump	Dual-pump
Implement Flow	18.4 gpm	12.6 gpm
Steering Flow	6.3 gpm	7.6 gpm
Total Hydraulic Flow	24.7 gpm	20.2 gpm
Overall Hydraulic Pump Flow	24.7 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2 (rear); 2 (mid)	2
No. of Optional Remote Valves	Up to 3 total (rear); up to 3 total (mid)	3

Fuel Tank Capacity	OOS: 39.2 gal; OOS (High Capacity): 47.1 gal; Cab: 43.7 gal; Cab (High Capacity): 52 gal	Not Published
Coolant Capacity	OOS: 3.6 gal; Cab: 4.2 gal	Not Published
Crankcase Capacity	2.2 gal	Not Published
Transmission / Hydraulic System Capacity	10.4 gal	Not Published
Front Axle Fluid Capacity	Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal	Not Published

PTO Type	Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional	Not Published
PTO Rear	540/540E rpm standard; 1000 rpm optional	540/540E
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category II (convertible to I)	Not Published
Hitch Lift Capacity	5,305 lb standard; 6,114 lb optional	Not Published
Hitch Lift Capacity (at 24”)	5,150 lb standard; 5,950 lb optional	4,000 lb
Lift Control Type	Mechanical or Electrohydraulic	Lift-O-Matic

Transmission Type	PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo	12x12 Mechanical Shuttle
No. of Speeds	16F/16R (standard PowrReverser); 32F/16R (optional PowrReverser Hi-Lo)	12F/12R
Max Travel Speed (Forward)	24 mph	Not Published
Max Travel Speed (Reverse)	16F/16R PowrReverser, top gear D-4: 20.5 mph (30K gearing); 23.9 mph (40K gearing), with 480/70R28 rear tires at 2200 rpm	Not Published
Clutch	Wet	Not Published
Differential Lock & Limited Slip Options	Electrohydraulic rear differential lock	Not Published

Frame Type	Cast iron mid-frame	Straddle-deck platform
Steering	Not Published	Not Published
Brakes	Hydraulically actuated wet disc brakes	Not Published
Seat Suspension & Adjustability	OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb	Vinyl suspension seat
Front Axle Type	MFWD	4WD front axle, electronic engagement
Front Axle Rating	6,613 lb max permissible front axle load	Not Published
Drawbar Capacity	Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb	Not Published

Overall Width	Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in	57 in
Wheelbase	92.5 in	73 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	13.1 ft	Not Published
Height to Top of ROPS	102.1 in (with standard rear tires)	97 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	102.9 in (with standard rear tires)	Not Published
Overall Length	149.5 in (including draft links)	143 in

Tractor Weight (Base)	2WD OOS: 8,140 lb; 2WD Cab: 8,580 lb; MFWD OOS: 8,765 lb; MFWD Cab: 9,185 lb (approximate ship weight, less weights)	5,000 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Not Published
R1 Agricultural - Front	12.4R24 (320/85R24) R1W Radial	Not Published
R1 Agricultural - Rear	18.4R30 (460/85R30) R1W Radial	320/70R20
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Not Published
Loader Model	520M (4WD only); 540M NSL; 540M MSL; 540R; 600M NSL; 600M MSL	Not Published
Loader Lift Height	520M: 130-132 in; 540M NSL: 137-141 in; 540M MSL: 138-141 in; 540R: 141.85 in; 600M NSL: 148.8-152.8 in; 600M MSL: 148-153 in	Not Published
Loader Lift Capacity (Full Height)	520M NSL: 3,335-3,612 lb; 520M MSL: 2,460-2,661 lb; 540M NSL: 2,394-2,666 lb; 540M MSL: 3,117-3,309 lb; 540R: 3,406 lb; 600M NSL: 3,104-3,236 lb; 600M MSL: 3,891-4,085 lb	Not Published
Loader Breakout Force	540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot; H310 for MFWD tractors)	Not Published

Warranty Length & Coverage	Not Published	Not Published
