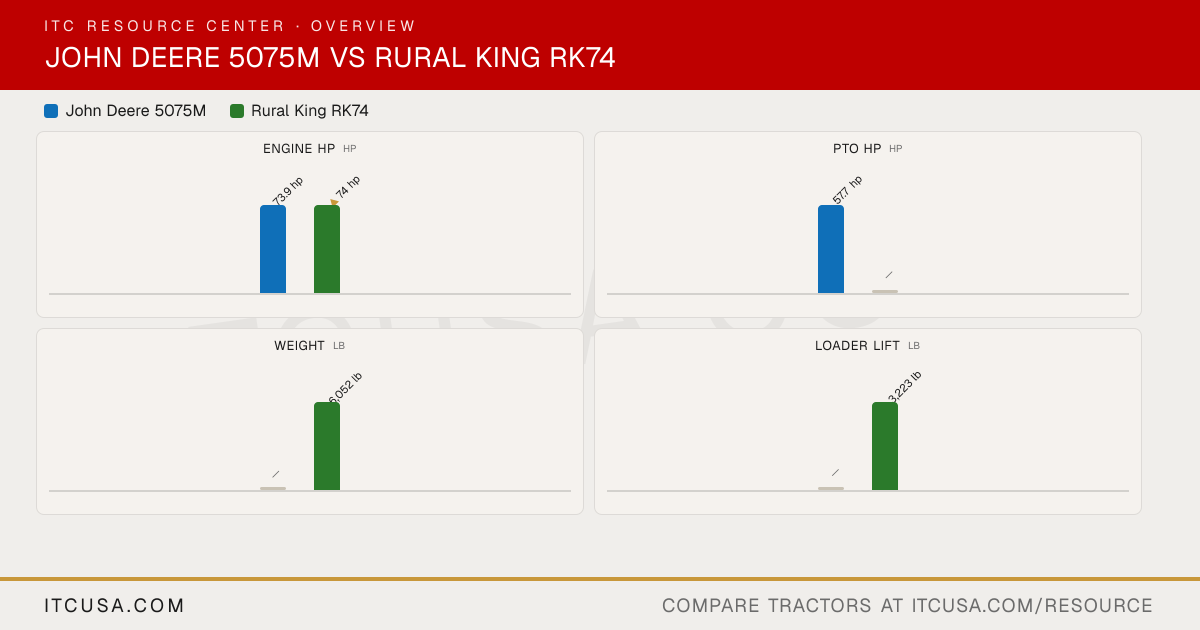

▶ EnginePTO Power 57.7 hp @ 100 rpm — Alternator 90 A — Air Cleaner Dry air cleaner — Engine Type Diesel, turbocharged and air-to-air aftercooled Turbocharged Fuel System High Pressure Common Rail (HPCR) electronic fuel injection — Displacement 177 in³ — No. of Cylinders 3 4 Rated Engine Speed 2200 rpm 2200 Cooling System Type Not Published — Engine Manufacturer John Deere PowerTech 3029 EWR Deutz Engine Power (Gross) 73.9 hp @ 200 rpm 74 hp Engine Emissions Constraints Tier 4 Tier 4 Engine Model — Deutz TCD2.9 L4 ▶ WeightWeight with ROPS and Loader Not Published 6,052 lbs. Weight with Cab and Loader Not Published — ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) — ▶ HydraulicsPump Type Tandem Gear — Steering Flow 6.3 gpm — Implement Flow 18.4 gpm — Total Hydraulic Flow 24.7 gpm — Hydraulic System Type Not Published open center Rear Remote Hydraulic Flow Not Published — Overall Hydraulic Pump Flow 24.7 gpm 10.3 gpm No. of Optional Remote Valves Up to 1 additional (rear) (max 3 total) — No. of Standard Remote Valves 2 (rear) — ▶ PTO & HitchPTO Rear 540 @2100 engine rpm; 540E @1645 engine rpm; 1000 @2100 engine rpm (if equipped) 540/750 PTO Type Independent rear PTO (wet disc clutch, electrohydraulic activation): 540/540E standard; 1000 optional Independent Lift Control Type Mechanical or electrohydraulic (draft control) Draft Control Hitch Lift Capacity 5,305 lb @ hitch ball (standard 2.6 in cylinders); 6,114 lb optional (65 & 3 in cylinders) 5,115 lbs Mid-PTO Availability Not Published — Category, 3-Point Hitch Category II (convertible to Category I) — Hitch Lift Capacity (at 24”) 5,161 lb @ 24 in behind lift point (standard); 5,958 lb optional — ▶ Tire OptionsR3 Turf - Rear Not Published R 22.4x25.5 R3 Turf - Front Not Published F 12.0x20.5 Tire Size & Options R1 Ag / R3 Turf / R4 Industrial — R4 Industrial - Rear Not Published R 18.4x24 R4 Industrial - Front Not Published F 15x9.5 R1 Agricultural - Rear Not Published — R1 Agricultural - Front Not Published — ▶ Fluid CapacityCoolant Capacity OOS: 3.6 gal; Cab: 4.2 gal — Crankcase Capacity 2.2 gal — Fuel Tank Capacity Cab: 48.2 gal; OOS: 44.6 gal — Front Axle Fluid Capacity Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal — Transmission / Hydraulic System Capacity Open center: 10.4 gal; Closed center: 12.5 gal — ▶ Loader & AttachmentsLoader Lift Height Not Published 135.5 Loader Breakout Force Not Published 5,335 Quick Attach Loader System Not Published — Loader Lift Capacity (Full Height) Not Published 3,223 Loader Model — L135SL Front-End Loader ▶ Transmission & DrivetrainClutch Not Published Wet Disc No. of Speeds 16 forward / 16 reverse; 32 forward / 16 reverse (Hi-Lo) 16F/16R Transmission Type PowrReverser 16F/16R or 32F/16R Hi-Lo 16F/16R Power Shuttle w/creeper Max Travel Speed (Forward) Not Published 18.9 (30.4) Max Travel Speed (Reverse) Not Published — Differential Lock & Limited Slip Options Not Published — ▶ Chassis, Steering & ControlsBrakes Hydraulically actuated wet disc brakes Wet Disc Steering Not Published power Frame Type Not Published 4x4 MFWD 4WD Front Axle Type MFWD — Drawbar Capacity Not Published — Front Axle Rating 6,613 lb max permissible front axle load — Seat Suspension & Adjustability Not Published — ▶ Dimensions & ManeuverabilityWheelbase 92.5 in — Overall Width 74.0 in (without fender extension); 85.6 in (with fender extension) 76.4 (1940) Ground Clearance Not Published 18.3 (465) Height to Top of ROPS Not Published — Height to Top of Cab Model 105.3 in 103.3 (2624) Height to Top of ROPS (folded) Not Published — Min. Turn Radius without Brakes 157.5 in — Overall Length with 3-Point Hitch Cab overall length: 157.3 in 157.5 (4002)
