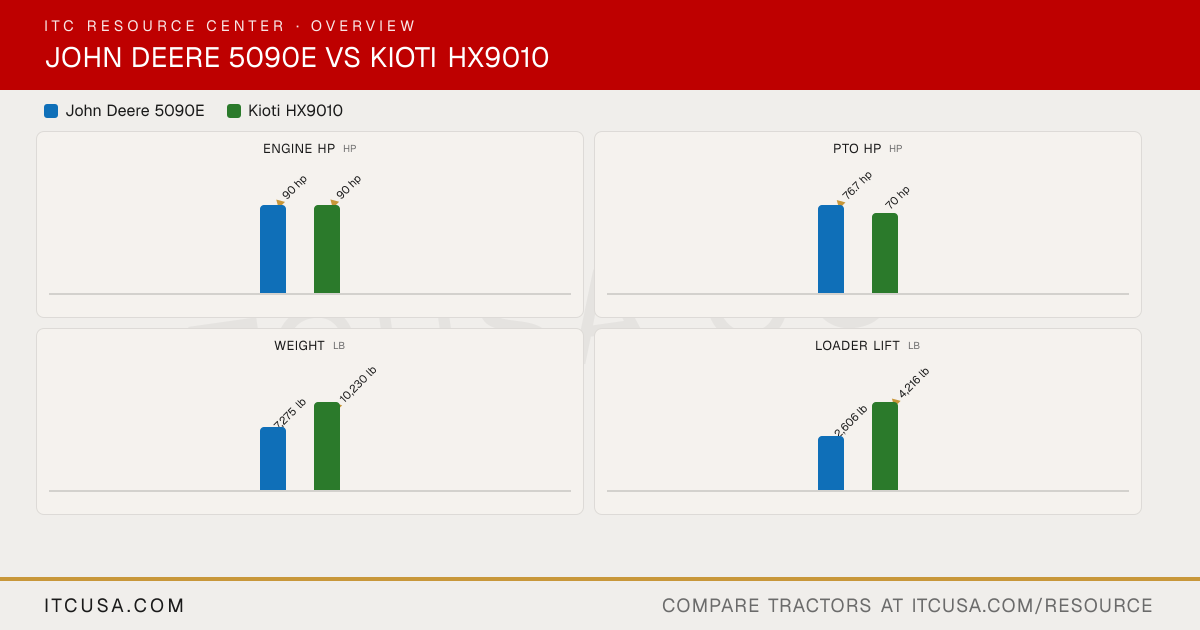

▶ EngineEngine Manufacturer John Deere KIOTI Engine Model PowerTech 4045 (4.5L) PWL 4J243TA-TP5B Engine Type 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control 4-cylinder, in-line vertical, water-cooled, turbocharged and intercooled CRDI diesel (4J243TA-TP5B) No. of Cylinders 4 4 Displacement 276 in³ 233.9 in³ Rated Engine Speed 2400 rpm 2200 rpm Engine Power (Gross) 90 hp 90 hp PTO Power 76.7 hp 70 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry type with safety element Dry element with evacuator valve Fuel System High pressure common rail, electronic fuel control CRDI Alternator OOS: 90 A; Cab: 120 A Not Published ▶ HydraulicsPump Type Tandem gear pump, two engine-mounted pumps Gear Implement Flow 15.9 gpm 19.8 gpm Steering Flow 6.6 gpm 12.2 gpm Total Hydraulic Flow 22.5 gpm 32 gpm Overall Hydraulic Pump Flow 22.5 gpm 32 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear; 0 mid 3 No. of Optional Remote Valves 3 rear; up to 3 mid 4th remote valve ▶ Fluid CapacityFuel Tank Capacity 25 gal (open operator station); 30 gal (cab) 47.6 gal Coolant Capacity 2.5 gal (open operator station); 3 gal (cab) 4.6 gal Crankcase Capacity 3.2 gal 3.9 gal Transmission / Hydraulic System Capacity 11.5 gal 20.34 gal Front Axle Fluid Capacity 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) 2.6 gal ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement, wet PTO clutch Independent PTO Rear 540/540E standard; 540/1000 optional 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2, convertible to Category 1 Category II Hitch Lift Capacity 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range 8,079 lb Hitch Lift Capacity (at 24”) 4,630 lb (electrohydraulic hitch) 8,002 lb Lift Control Type Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing Electronic control ▶ Transmission & DrivetrainTransmission Type PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional Power Shuttle w/ Hi-Lo Shift No. of Speeds 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) 24 forward / 24 reverse Max Travel Speed (Forward) 21.7 mph (electronically limited) 23.83 mph Max Travel Speed (Reverse) 21.7 mph (electronically limited) 23.67 mph Clutch Wet Wet Multi Disc Differential Lock & Limited Slip Options Rear differential lock Mechanical rear differential lock (standard); front limited-slip differential ▶ Chassis, Steering & ControlsFrame Type Foldable ROPS (open operator station); standard or premium cab; MFWD Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage Wet Disc Seat Suspension & Adjustability Mechanical seat standard; air-suspension seat optional for cab Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft Front Axle Type MFWD 4WD, outboard planetary drives, limited-slip differential Front Axle Rating 6,615 lb Not Published Drawbar Capacity 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb ▶ Dimensions & ManeuverabilityOverall Width 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) 88.6 in Wheelbase 92.5 in 94.9 in Ground Clearance 17 in (front axle) 18.9 in Min. Turn Radius without Brakes 11.6 ft (MFWD) 12.7 ft (with brake applied) Height to Top of ROPS 101.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.4 in 111.9 in Overall Length 159.13 in 170.8 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) 10,230 lb (with AG tires) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) R1 Agricultural - Front 12.4-24 13.6-24 R1 Agricultural - Rear 18.4-30 R1 bias 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach option with integrated parking stand KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator Loader Model 520M (NSL and MSL); 540M (NSL) KL1155 Loader Lift Height 520M MSL: 132.0 in KL1155: 150.6 in (to pivot pin) Loader Lift Capacity (Full Height) 520M MSL: 2,606 lb (to maximum height, measured at pivot) KL1155: 4,216 lb (at pivot pins) Loader Breakout Force 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) KL1155: 8,554 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Powertrain 5 years or 2,000 hours, as sold new Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 48 months, unlimited hours, HX series
