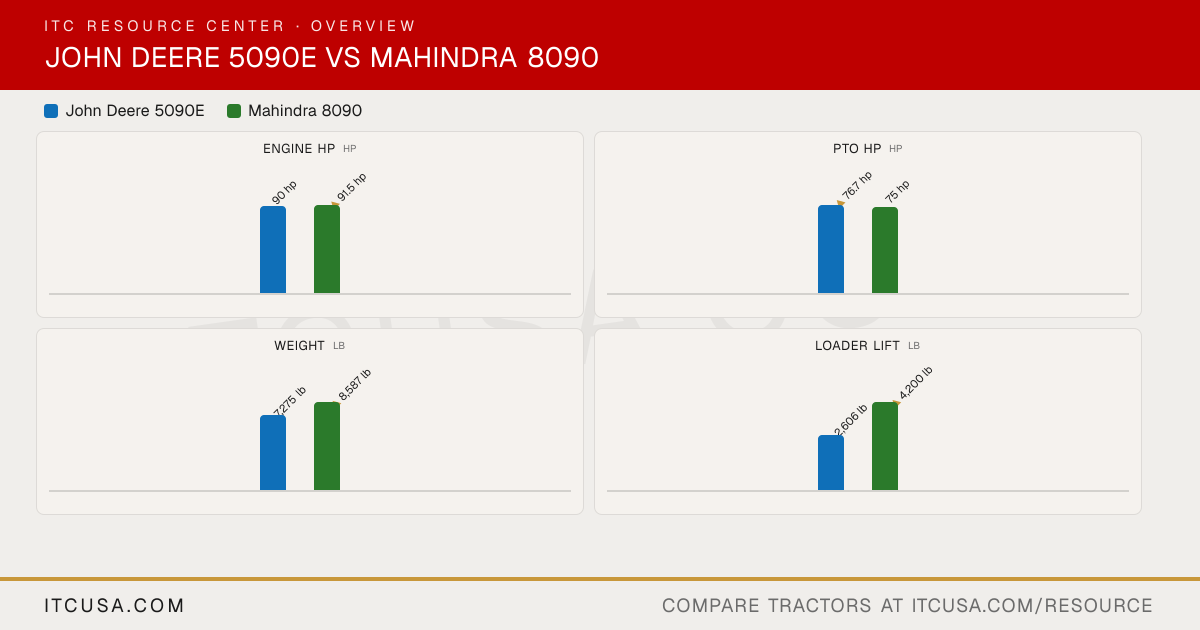

▶ EngineEngine Manufacturer John Deere Mahindra Engine Model PowerTech 4045 (4.5L) PWL Not Published Engine Type 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control Four-stroke, turbocharged, direct injection, water-cooled diesel No. of Cylinders 4 4 Displacement 276 in³ 215.4 in³ Rated Engine Speed 2400 rpm 2300 rpm Engine Power (Gross) 90 hp 91.5 hp PTO Power 76.7 hp 75 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry type with safety element Not Published Fuel System High pressure common rail, electronic fuel control Common rail direct injection Alternator OOS: 90 A; Cab: 120 A 140 A ▶ HydraulicsPump Type Tandem gear pump, two engine-mounted pumps Not Published Implement Flow 15.9 gpm 17 gpm Steering Flow 6.6 gpm 5.2 gpm Total Hydraulic Flow 22.5 gpm 22.2 gpm Overall Hydraulic Pump Flow 22.5 gpm 22.2 gpm Hydraulic System Type Open center Open center with position and draft control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear; 0 mid 2 No. of Optional Remote Valves 3 rear; up to 3 mid 3rd valve optional ▶ Fluid CapacityFuel Tank Capacity 25 gal (open operator station); 30 gal (cab) 25.9 gal Coolant Capacity 2.5 gal (open operator station); 3 gal (cab) Not Published Crankcase Capacity 3.2 gal Not Published Transmission / Hydraulic System Capacity 11.5 gal Not Published Front Axle Fluid Capacity 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement, wet PTO clutch 2-speed independent single lever PTO PTO Rear 540/540E standard; 540/1000 optional 540/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2, convertible to Category 1 CAT II with telescoping stabilizers & flex links Hitch Lift Capacity 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range 5,500 lb Hitch Lift Capacity (at 24”) 4,630 lb (electrohydraulic hitch) Not Published Lift Control Type Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing Position and draft control ▶ Transmission & DrivetrainTransmission Type PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional Full synchro mesh with forward/reverse power shuttle and constant-mesh range No. of Speeds 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) 12F / 12R Max Travel Speed (Forward) 21.7 mph (electronically limited) Not Published Max Travel Speed (Reverse) 21.7 mph (electronically limited) Not Published Clutch Wet Power shuttle with torsional damper (wet) Differential Lock & Limited Slip Options Rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Foldable ROPS (open operator station); standard or premium cab; MFWD Steel frame Steering Hydrostatic power steering Power steering Brakes Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage Oil-immersed brakes, 7-in disc, mechanically actuated Seat Suspension & Adjustability Mechanical seat standard; air-suspension seat optional for cab Seat with integrated folding armrests, recline, and air-suspension standard Front Axle Type MFWD Not Published Front Axle Rating 6,615 lb Not Published Drawbar Capacity 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) Not Published ▶ Dimensions & ManeuverabilityOverall Width 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) 83 in Wheelbase 92.5 in 95.6 in Ground Clearance 17 in (front axle) 14.1 in Min. Turn Radius without Brakes 11.6 ft (MFWD) 15.5 ft Height to Top of ROPS 101.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.4 in 111.2 in Overall Length 159.13 in 176.6 in ▶ WeightTractor Weight (Base) 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) 8,587 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed Not Published R1 Agricultural - Front 12.4-24 12.4 x 24 R1 Agricultural - Rear 18.4-30 R1 bias 18.4 x 30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach option with integrated parking stand Skid steer style quick attach Loader Model 520M (NSL and MSL); 540M (NSL) 8100CL Loader Lift Height 520M MSL: 132.0 in 8100CL: 139 in Loader Lift Capacity (Full Height) 520M MSL: 2,606 lb (to maximum height, measured at pivot) 8100CL: 4,200 lb (at pivot pin) Loader Breakout Force 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) 8100CL: 6,050 lb ▶ WarrantyWarranty Length & Coverage Powertrain 5 years or 2,000 hours, as sold new Not Published
