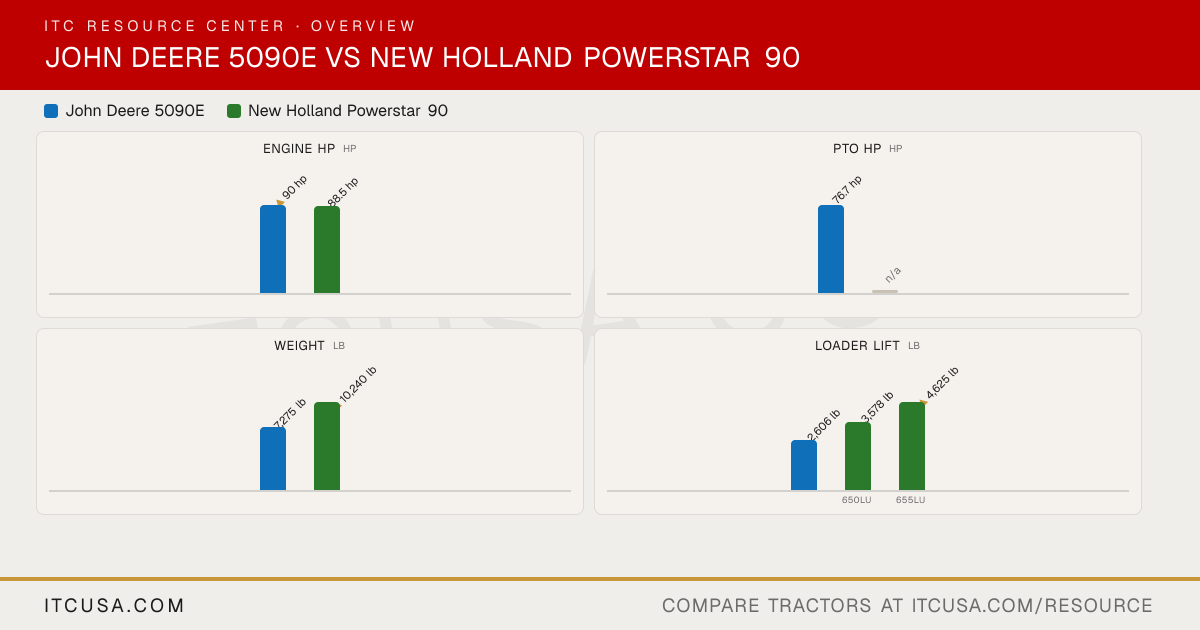

▶ EngineEngine Manufacturer John Deere FPT Engine Model PowerTech 4045 (4.5L) PWL F36 Engine Type 4-cylinder, turbocharged and aftercooled diesel, electronic fuel control 4-cylinder diesel, turbocharged and aftercooled No. of Cylinders 4 4 Displacement 276 in³ 219.7 in³ Rated Engine Speed 2400 rpm 2300 rpm Engine Power (Gross) 90 hp 88.5 hp PTO Power 76.7 hp Not Published Engine Emissions Constraints Tier 4 Stage V (ECOBlue Compact HI-eSCR + Light CEGR) Cooling System Type Liquid-cooled Not Published Air Cleaner Dry type with safety element Not Published Fuel System High pressure common rail, electronic fuel control Common rail fuel injection Alternator OOS: 90 A; Cab: 120 A Not Published ▶ HydraulicsPump Type Tandem gear pump, two engine-mounted pumps Open center, dual pumps: implement pump plus dedicated steering pump Implement Flow 15.9 gpm 21.7 gpm Steering Flow 6.6 gpm 9.7 gpm Total Hydraulic Flow 22.5 gpm 31.4 gpm (21.7 + 9.7, computed) Overall Hydraulic Pump Flow 22.5 gpm 31.4 gpm (21.7 + 9.7, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 rear; 0 mid 2 rear remotes (four couplers) No. of Optional Remote Valves 3 rear; up to 3 mid 1 (3rd rear remote); 1 with diverter (3rd rear remote with 1 diverter) ▶ Fluid CapacityFuel Tank Capacity 25 gal (open operator station); 30 gal (cab) 34.3 gal Coolant Capacity 2.5 gal (open operator station); 3 gal (cab) Not Published Crankcase Capacity 3.2 gal Not Published Transmission / Hydraulic System Capacity 11.5 gal Not Published Front Axle Fluid Capacity 1.3 gal (MFWD differential housing); 0.74 qt (each wheel hub) Not Published ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement, wet PTO clutch Fully independent electrohydraulic PTO, wet clutch PTO Rear 540/540E standard; 540/1000 optional 540/1000 rpm (interchangeable, standard) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 2, convertible to Category 1 Category II Hitch Lift Capacity 5,159 lb (maximum lift force at hitch ball); 3,846 lb throughout lift range Not Published Hitch Lift Capacity (at 24”) 4,630 lb (electrohydraulic hitch) 4,123 lb Lift Control Type Electro-hydraulic hitch with electronic quick raise and lower (premium cab); top-link draft sensing Electronic draft control (Dual Command); single-lever Lift-O-Matic PLUS (standard) ▶ Transmission & DrivetrainTransmission Type PowrReverser 12F/12R standard; PowrReverser Hi-Lo 24F/12R optional 24x24 Dual Command hi-lo power shuttle, column-mounted No. of Speeds 12 forward, 12 reverse (standard); 24 forward, 12 reverse (Hi-Lo) 24F/24R (Dual Command) Max Travel Speed (Forward) 21.7 mph (electronically limited) 25 mph Max Travel Speed (Reverse) 21.7 mph (electronically limited) Not Published Clutch Wet Not Published Differential Lock & Limited Slip Options Rear differential lock Electrohydraulic rear differential lock ▶ Chassis, Steering & ControlsFrame Type Foldable ROPS (open operator station); standard or premium cab; MFWD Not Published Steering Hydrostatic power steering Not Published Brakes Hydraulic wet disc, self-equalizing and self-adjusting, dual-stage Not Published Seat Suspension & Adjustability Mechanical seat standard; air-suspension seat optional for cab Air-suspension cloth seat Front Axle Type MFWD Heavy-duty class 1.5 4WD front axle Front Axle Rating 6,615 lb Not Published Drawbar Capacity 2,755 lb (standard drawbar, 9.8 in extended); 2,425 lb (standard drawbar, 350 and 15.7 in extended); 3,195 lb (heavy-duty drawbar, 9.8 in extended); 2,645 lb (heavy-duty drawbar, 350 and 15.7 in extended) Not Published ▶ Dimensions & ManeuverabilityOverall Width 83.6 in (minimum, 16.9-30 R1 tires); 85.1 in (minimum, 18.4-30 R1 tires) 56.9 in min to 84.8 in max (front wheels); 56.1 in min to 84.2 in max (rear wheels) Wheelbase 92.5 in 92.5 in Ground Clearance 17 in (front axle) Not Published Min. Turn Radius without Brakes 11.6 ft (MFWD) Not Published Height to Top of ROPS 101.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.4 in 103.6 in Overall Length 159.13 in 158.2 in ▶ WeightTractor Weight (Base) 7,275 lb (MFWD open operator station, shipping weight); 8,150 lb (MFWD cab, shipping weight) 10,240 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4-30 R1 bias rear standard; 16.9-30 R1 also listed 420/85R38 (reference tire for weight and dimensions); rear tires as large as R38 available R1 Agricultural - Front 12.4-24 Not Published R1 Agricultural - Rear 18.4-30 R1 bias Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach option with integrated parking stand Skid-steer-style or Euro-style quick attach faceplate (available, both LU loaders) Loader Model 520M (NSL and MSL); 540M (NSL) 650LU (NSL); 655LU (MSL) Loader Lift Height 520M MSL: 132.0 in 650LU: 149.7 in; 655LU: 149.7 in Loader Lift Capacity (Full Height) 520M MSL: 2,606 lb (to maximum height, measured at pivot) 650LU: 3,578 lb; 655LU: 4,625 lb (at 31.5 in from pivot point) Loader Breakout Force 520M NSL: 4,511 lbf; 520M MSL: 4,793 lbf (at pivot point) Not Published ▶ WarrantyWarranty Length & Coverage Powertrain 5 years or 2,000 hours, as sold new Not Published
