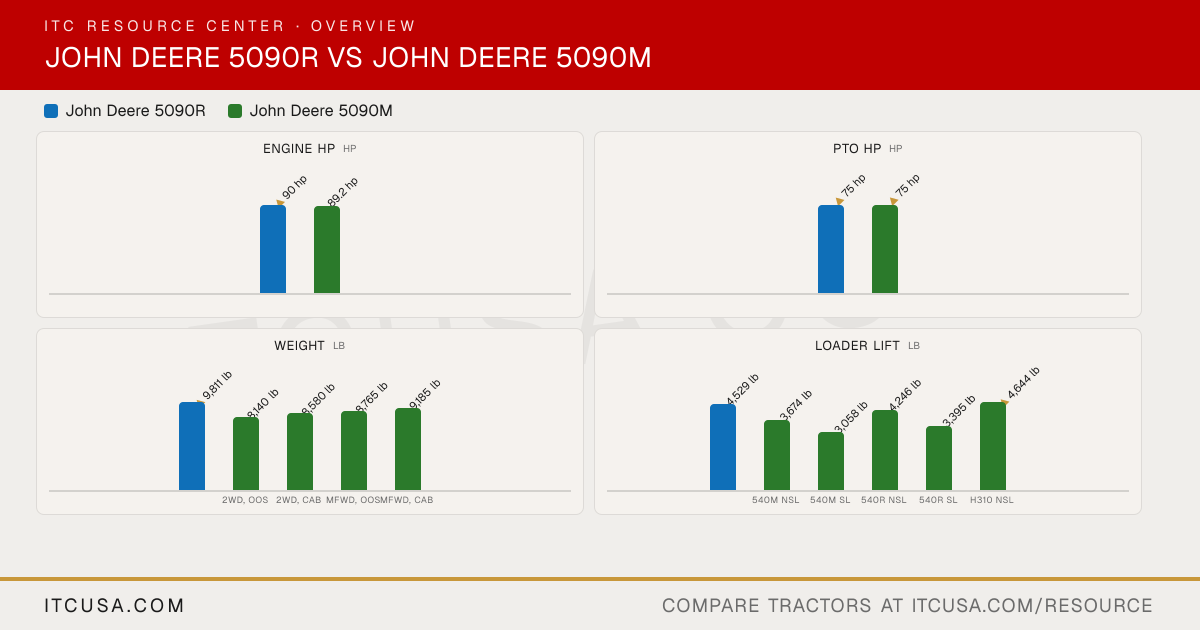

John Deere 5090R vs John Deere 5090M | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Category II (telescoping draft links with Category II balls)
Category II (convertible to I)
Hitch Lift Capacity
7,158 lb; 8,157 lb throughout lift range at hitch ball; 11,122 lb / 12,515 lb maximum
5,305 lb; 6,114 lb, at hitch ball throughout lift range
Hitch Lift Capacity (at 24”)
6,975 lb; 7,868 lb throughout lift range
5,159 lb standard; 5,954 lb optional
Lift Control Type
Electro-hydraulic hitch with fender controls, lower-link draft sensing
Mechanical or electrohydraulic (draft control)
Transmission Type
CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional)
PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus
Electro-hydraulic rear differential lock, engage on the go
Frame Type
Cab standard with air conditioning; mechanical front-wheel drive (MFWD)
Cast iron mid-frame
Steering
Hydrostatic power steering
Not Published
Brakes
Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake
Not Published
Seat Suspension & Adjustability
Not Published
OOS: isolated mechanical seat, mechanical seat, or air suspension seat (fore/aft, weight and lumbar adjustment); Cab: mechanical suspension seat or air suspension seat; adjustable weight range 88-330 lb
Front Axle Type
MFWD, electro-hydraulic engagement, planetary final drives
MFWD (standard); 2WD (optional)
Front Axle Rating
7,937 lb (MFWD closed center); 7,055 lb (MFWD open center)
6,613 lb (MFWD, max permissible front axle load)
Drawbar Capacity
2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended)
