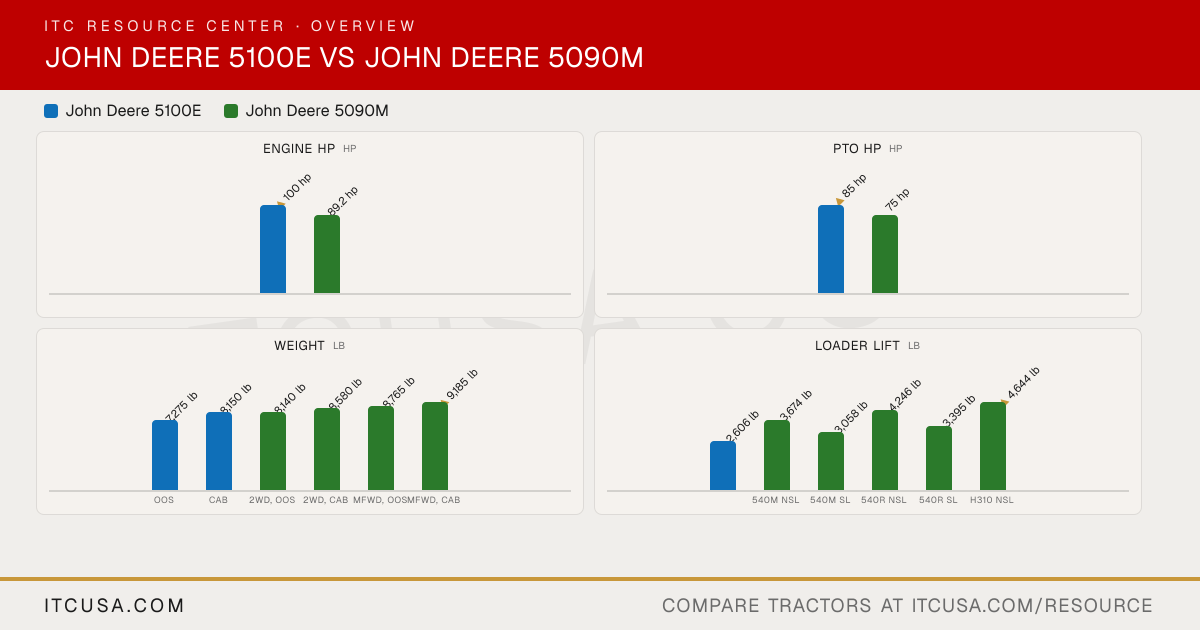

▶ EngineEngine Manufacturer John Deere John Deere Engine Model PowerTech PWL 4045 PowerTech 4045 PWL Engine Type Diesel, turbocharged, aftercooled Diesel, turbocharged, air-to-air aftercooled No. of Cylinders 4 4 Displacement 276 in³ 276 in³ Rated Engine Speed 2400 rpm 2200 rpm Engine Power (Gross) 100 hp 89.2 hp PTO Power 85 hp 75 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Cool-Gard II coolant Air Cleaner Dry type with safety element Primary and secondary air cleaner elements Fuel System High Pressure Common Rail High pressure common rail; electronic fuel control Alternator OOS: 90 A; Cab: 120 A OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V ▶ HydraulicsPump Type Tandem gear pump (implement + steering) Tandem gear pump Implement Flow 15.9 gpm 18.4 gpm Steering Flow 6.6 gpm 6.3 gpm Total Hydraulic Flow 22.5 gpm 24.7 gpm Overall Hydraulic Pump Flow 22.5 gpm 24.7 gpm Hydraulic System Type Open Center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 (rear, Dual SCV) No. of Optional Remote Valves 3 Up to 1 additional rear valve (3 total with Triple SCV); up to 3 mid SCVs (XI, XII, XIII) for loader functions ▶ Fluid CapacityFuel Tank Capacity OOS: 25 gal; Cab: 30 gal OOS: 29.6 gal; OOS (High Capacity): 37.2 gal; Cab: 37 gal; Cab (High Capacity): 44.9 gal Coolant Capacity Cab: 3 gal; OOS: 2.5 gal OOS: 5.2 gal; Cab: 5.8 gal Crankcase Capacity 3.2 gal (with filter) 3.4 gal Transmission / Hydraulic System Capacity 11.5 gal 10.4 gal Front Axle Fluid Capacity MFWD differential housing: 1.3 gal; MFWD wheel hub (each): 0.74 qt Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal ▶ PTO & HitchPTO Type Independent, electrohydraulic engagement Independent rear PTO, electro-hydraulic actuation: 540/540E standard, 540/540E/1000 optional PTO Rear 540/540E rpm 540/540E rpm standard; 1000 rpm optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II (convertible to I) Hitch Lift Capacity Not Published 5,305 lb; 6,114 lb, at hitch ball throughout lift range Hitch Lift Capacity (at 24”) 4,630 lb 5,159 lb standard; 5,954 lb optional Lift Control Type Top link draft sensing; mechanical hitch controls Mechanical or electrohydraulic (draft control) ▶ Transmission & DrivetrainTransmission Type PowrReverser PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo or 12F/4R SyncShuttle Plus No. of Speeds 12F/12R (standard); 24F/12R (optional) 16F/16R (standard PowrReverser); 12F/4R (optional SyncShuttle Plus); 32F/16R (optional PowrReverser Hi-Lo) Max Travel Speed (Forward) 12F/12R: 21.7 mph; 24F/12R: 24.9 mph (electronically limited) 16F/16R PowrReverser, top gear (D-4): 30K config: 18.6 mph; 40K config: 21.7 mph Max Travel Speed (Reverse) Not Published 16F/16R PowrReverser, top gear (D-4): 30K config: 20.5 mph; 40K config: 23.9 mph Clutch Wet traction clutch Wet Differential Lock & Limited Slip Options Pedal-operated differential lock Electro-hydraulic rear differential lock, engage on the go ▶ Chassis, Steering & ControlsFrame Type Not Published Cast iron mid-frame Steering Hydrostatic power steering Not Published Brakes Hydraulic wet disc brakes, self-equalizing and self-adjusting Not Published Seat Suspension & Adjustability Not Published OOS: isolated mechanical seat, mechanical seat, or air suspension seat (fore/aft, weight and lumbar adjustment); Cab: mechanical suspension seat or air suspension seat; adjustable weight range 88-330 lb Front Axle Type Mechanical front wheel drive (MFWD) MFWD (standard); 2WD (optional) Front Axle Rating 6,615 lb 6,613 lb (MFWD, max permissible front axle load) Drawbar Capacity Standard: 2,755 lb; 2,425 lb (350 and 15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350 and 15.7 in extended) Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb ▶ Dimensions & ManeuverabilityOverall Width Not Published Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in Wheelbase 92.5 in 92.5 in Ground Clearance ROPS: 17 in; Cab: 15.2 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 100.8 in 102.1 in Height to Top of ROPS (folded) 78.6 in Not Published Height to Top of Cab Model 101.2 in 102.9 in Overall Length 159.13 in 149.5 in (including draft links) ▶ WeightTractor Weight (Base) OOS: 7,275 lb (shipping weight); Cab: 8,150 lb (shipping weight) 2WD, OOS: 8,140 lb; 2WD, Cab: 8,580 lb; MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front 12.4-24 12.4R24 (320/85R24) R1W Radial R1 Agricultural - Rear 18.4-30 18.4R30 (460/85R30) R1W Radial R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 19.5L-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System 520M; 540M Not Published Loader Model 520M and 540M (previously H240 and H260) 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) Loader Lift Height 520M MSL: 132.0 in 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in Loader Lift Capacity (Full Height) 520M MSL: 2,606 lb (to maximum height, measured at pivot) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) Loader Breakout Force 520M MSL: 4,793 lb (measured at pivot) 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
