John Deere 5115M vs John Deere 5100E | Side-by-side comparison | ITC Resource Center
Compare Tractors

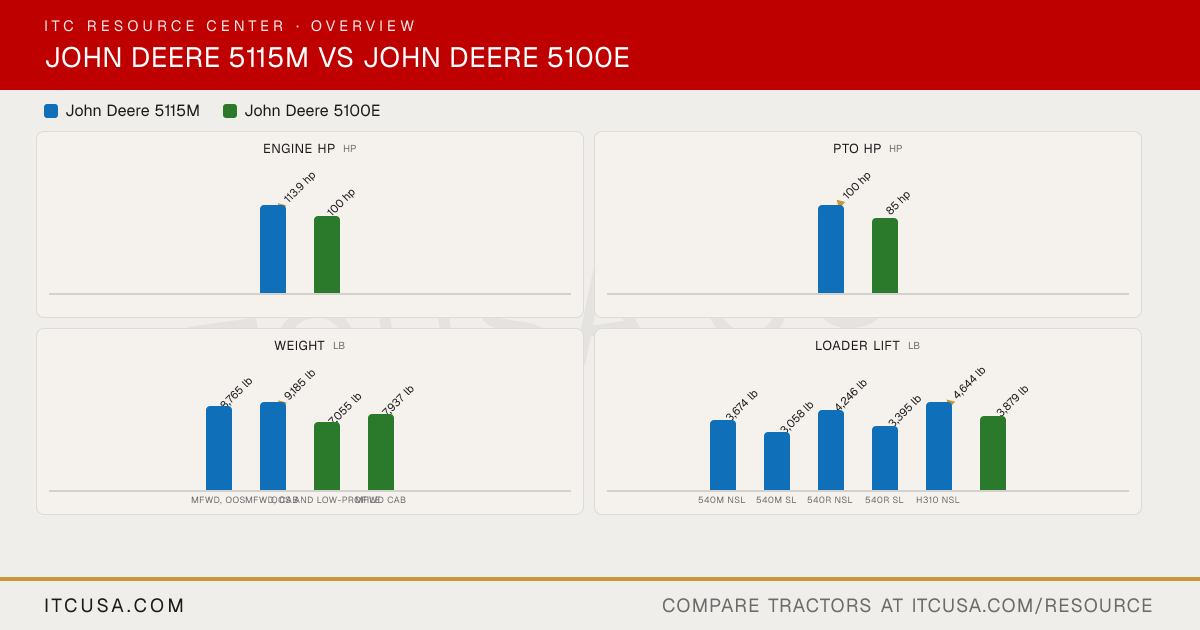

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Electro-hydraulic rear differential lock, engage on the go
Mechanical
Frame Type
Cast iron mid-frame
Not Published
Steering
Not Published
Hydrostatic power steering
Brakes
Not Published
Hydraulic wet disk brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability
OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb
Standard: 2,755 lb; 2,425 lb (350/15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350/15.7 in extended)
Overall Length with 3-Point Hitch
149.5 in
154.5 in
Overall Width
Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
69.6 in
Wheelbase
92.5 in
90.6 in
Ground Clearance
Not Published
ROPS: 17 in; Cab: 15.2 in
Min. Turn Radius without Brakes
Not Published
Not Published
Height to Top of ROPS
102.1 in
100.8 in
Height to Top of ROPS (folded)
Not Published
78.6 in
Height to Top of Cab Model
102.9 in
101.2 in
Tractor Weight (Base)
MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (2WD not offered on 5115M)
