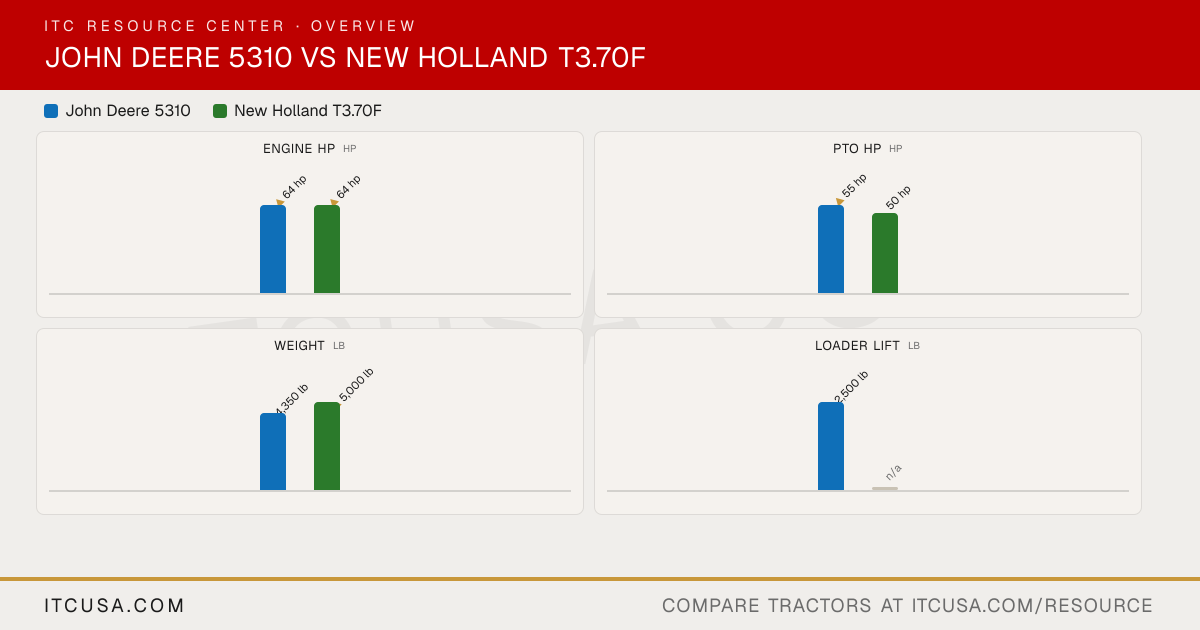

▶ EngineEngine Manufacturer John Deere FPT Industrial Engine Model 3029T S8000 Engine Type 3-cylinder liquid-cooled diesel, turbocharged, direct injection Turbocharged, intercooled 3-cylinder diesel No. of Cylinders 3 3 Displacement 179 in³ 179 in³ Rated Engine Speed 2400 rpm 2300 rpm Engine Power (Gross) 64 hp 64 hp PTO Power 55 hp 50 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Dry type with safety element Not Published Fuel System Direct injection, rotary injection pump with electric shutoff Common rail fuel injection Alternator 40 A Not Published ▶ HydraulicsPump Type Tandem gear pump Dual-pump Implement Flow 11.4 gpm 12.6 gpm Steering Flow 6.8 gpm 7.6 gpm Total Hydraulic Flow 18.2 gpm 20.2 gpm Overall Hydraulic Pump Flow 18.2 gpm 20.2 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow 11.4 gpm Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity 18 gal (open station); 23 gal (cab) Not Published Coolant Capacity 10 qt Not Published Crankcase Capacity 9 qt Not Published Transmission / Hydraulic System Capacity 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) Not Published Front Axle Fluid Capacity 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) Not Published ▶ PTO & HitchPTO Type Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch Not Published PTO Rear 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) 540/540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I and II Not Published Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3374 lb 4,000 lb Lift Control Type Position and depth control, top link draft sensing Lift-O-Matic ▶ Transmission & DrivetrainTransmission Type CollarShift standard; SyncShuttle optional; PowrReverser optional 12x12 Mechanical Shuttle No. of Speeds 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) 12F/12R Max Travel Speed (Forward) 15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4) Not Published Max Travel Speed (Reverse) 13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse) Not Published Clutch Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS; cab optional; two-wheel drive or MFWD Straddle-deck platform Steering Hydrostatic power steering Not Published Brakes Wet disk, self-equalizing, self-adjusting Not Published Seat Suspension & Adjustability Not Published Vinyl suspension seat Front Axle Type Two-wheel drive or mechanical front wheel drive (MFWD) 4WD front axle, electronic engagement Front Axle Rating 2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader) Not Published Drawbar Capacity 1675 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch) 143 in Overall Width 66.7 in 57 in Wheelbase 80.7 in 73 in Ground Clearance 18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar) Not Published Min. Turn Radius without Brakes 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) Not Published Height to Top of ROPS 88.7 in 97 in Height to Top of ROPS (folded) 75.5 in Not Published Height to Top of Cab Model 97.9 in Not Published ▶ WeightTractor Weight (Base) 4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab 5,000 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 Not Published R1 Agricultural - Front 7.50-16 (2WD); 9.5-24 (MFWD) Not Published R1 Agricultural - Rear 14.9-28 320/70R20 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 521; 541; 541 self-leveling Not Published Loader Lift Height 521: 122 in; 541: 126 in; 541 self-leveling: 130 in Not Published Loader Lift Capacity (Full Height) 521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin) Not Published Loader Breakout Force 521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
