Compare Tractors

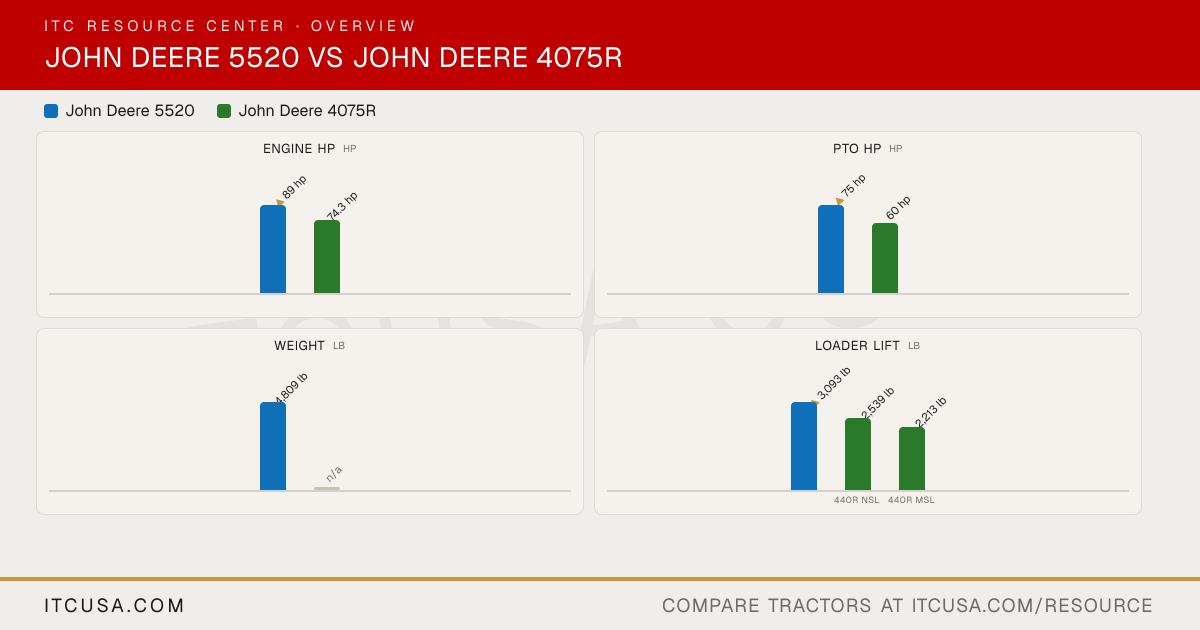

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5520
John Deere4075R
Engine Manufacturer
John Deere
Yanmar
Engine Model
4045T
4TNV86CHT-MJT
Engine Type
4-cylinder turbocharged diesel
Turbocharged 4-cylinder Diesel
No. of Cylinders
4
4
Displacement
278 in³
127.6 in³
Rated Engine Speed
2400 rpm
2600 rpm
Engine Power (Gross)
89 hp
74.3 hp
PTO Power
75 hp
60 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry type with safety element
Fuel System
Not Published
High pressure common-rail direct injection
Alternator
40 A
75 A, 12 V
Pump Type
Tandem gear pump
Dual Independent
Implement Flow
15.9 gpm
10.2 gpm
Steering Flow
6.6 gpm
5.7 gpm
Total Hydraulic Flow
22.5 gpm (15.9 + 6.6, computed)
15.9 gpm
Overall Hydraulic Pump Flow
Not Published
15.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
15.9 gpm
Not Published
No. of Standard Remote Valves
2 to 3 rear
Not Published
No. of Optional Remote Valves
Not Published
3rd, 4th, and 5th optional (up to 5 total)
Fuel Tank Capacity
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
14.7 gal
Coolant Capacity
11.4 qt
8.0 qt
Crankcase Capacity
9 qt
5.7 qt (with filter)
Transmission / Hydraulic System Capacity
10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
