John Deere 5520 vs John Deere 5090M | Side-by-side comparison | ITC Resource Center
Compare Tractors

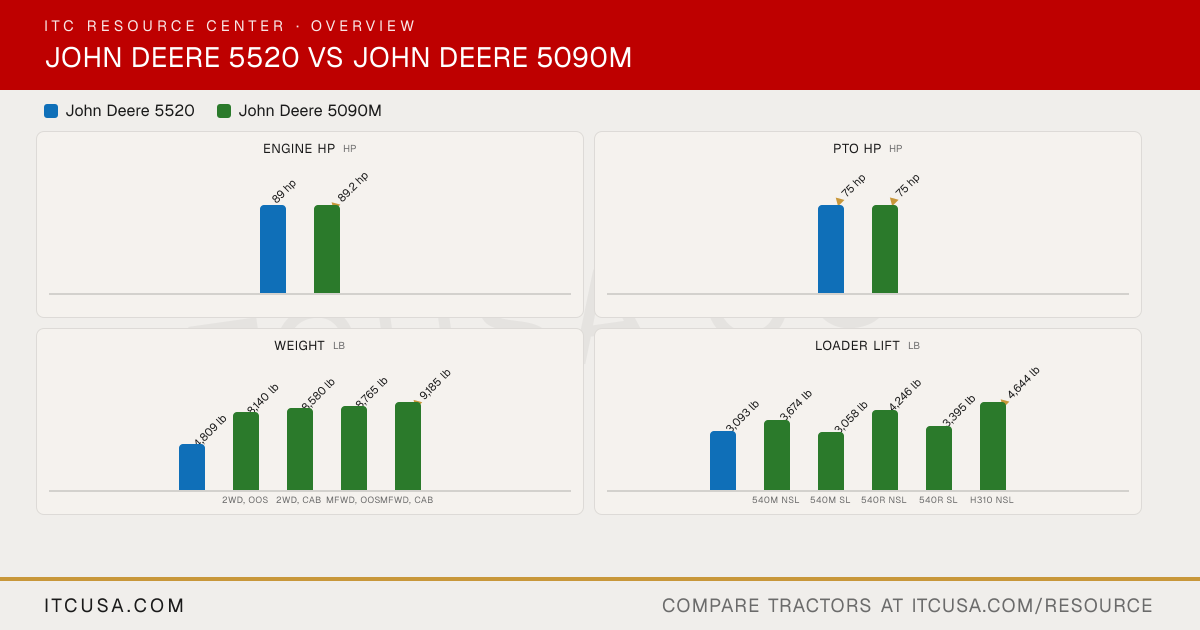

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5520
John Deere5090M
Engine Manufacturer
John Deere
John Deere
Engine Model
4045T
PowerTech 4045 PWL
Engine Type
4-cylinder turbocharged diesel
Diesel, turbocharged, air-to-air aftercooled
No. of Cylinders
4
4
Displacement
278 in³
276 in³
Rated Engine Speed
2400 rpm
2200 rpm
Engine Power (Gross)
89 hp
89.2 hp
PTO Power
75 hp
75 hp @ 100 rpm
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled (Cool-Gard II coolant)
Air Cleaner
Not Published
Dry air cleaner, primary and secondary elements
Fuel System
Not Published
High Pressure Common Rail (HPCR) electronic fuel injection
Alternator
40 A
OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V
Pump Type
Tandem gear pump
Tandem gear pump
Implement Flow
15.9 gpm
18.4 gpm
Steering Flow
6.6 gpm
6.3 gpm
Total Hydraulic Flow
22.5 gpm (15.9 + 6.6, computed)
24.7 gpm
Overall Hydraulic Pump Flow
Not Published
24.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
15.9 gpm
Not Published
No. of Standard Remote Valves
2 to 3 rear
2 (rear, Dual SCV)
No. of Optional Remote Valves
Not Published
Up to 1 additional rear (3 total, Deluxe Triple SCV); mid SCVs up to 3 (XI, XII, XIII) for loader functions
Fuel Tank Capacity
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
OOS: isolated mechanical seat standard (fore/aft, weight, lumbar adjust) or air suspension seat optional; Cab: mechanical seat standard or air suspension seat optional; adjustable weight range 88-330 lb
Front Axle Type
Two-wheel drive or mechanical front wheel drive (MFWD)
MFWD
Front Axle Rating
2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader)
151.5 in (straddle mount and IOOS, 2WD and MFWD); 145.5 in (cab 2WD); 148 in (cab MFWD)
149.5 in
Overall Width
74 in (straddle mount and IOOS, outside edge of tires); 77 in (cab, 60.4 in tread setting)
Cab, with fender extension: 85.6 in; Cab, without fender extension: 74.0 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase
86 in (straddle mount and IOOS); 85 in (cab 2WD); 86 in (cab MFWD)
92.5 in
Ground Clearance
19 in (2WD); 18 in (MFWD) crop clearance, straddle mount and IOOS; 19 in (2WD cab); 15.75 in (MFWD cab)
Not Published
Min. Turn Radius without Brakes
154 in (2WD); 172 in (MFWD engaged); 155 in (MFWD disengaged)
Not Published
Height to Top of ROPS
97 in (straddle mount); 105 in (isolated open operator station)
102.1 in
Height to Top of ROPS (folded)
78.5 in (straddle mount); 86 in (isolated open operator station)
