John Deere 5520 vs Kubota M5-091 | Side-by-side comparison | ITC Resource Center
Compare Tractors

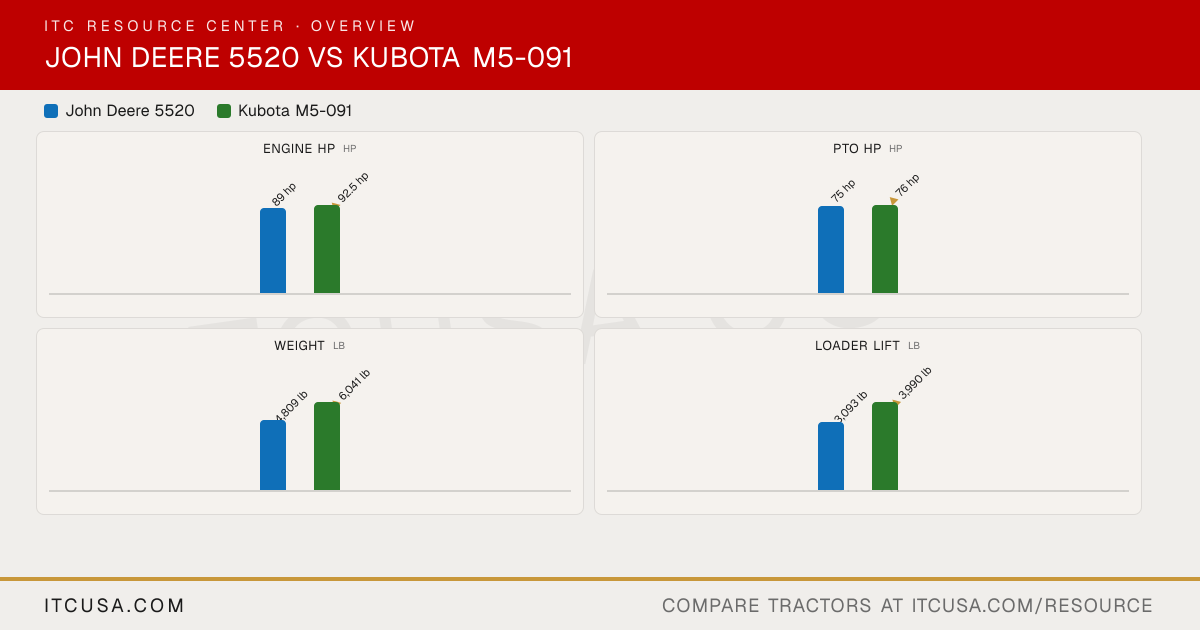

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5520
KubotaM5-091
Engine Manufacturer
John Deere
Kubota
Engine Model
4045T
V3800CR-TIEF4
Engine Type
4-cylinder turbocharged diesel
4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel
No. of Cylinders
4
4
Displacement
278 in³
230 in³
Rated Engine Speed
2400 rpm
2400 rpm
Engine Power (Gross)
89 hp
92.5 hp
PTO Power
75 hp
76 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry paper, dual element, 8 in diameter, with pre-cleaner
Fuel System
Not Published
Common rail direct injection
Alternator
40 A
60 A, 12 V
Pump Type
Tandem gear pump
Gear pump
Implement Flow
15.9 gpm
15.9 gpm
Steering Flow
6.6 gpm
5.4 gpm
Total Hydraulic Flow
22.5 gpm (15.9 + 6.6, computed)
21.3 gpm
Overall Hydraulic Pump Flow
Not Published
21.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
15.9 gpm
15.7 gpm
No. of Standard Remote Valves
2 to 3 rear
1 standard (3 maximum)
No. of Optional Remote Valves
Not Published
2 optional (3 maximum)
Fuel Tank Capacity
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
27.7 gal
Coolant Capacity
11.4 qt
11 qt
Crankcase Capacity
9 qt
11.3 qt
Transmission / Hydraulic System Capacity
10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
