Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

JohnDeere5520

n/a

NewHollandPowerstar90

Comparison loaded for 2 tractors.

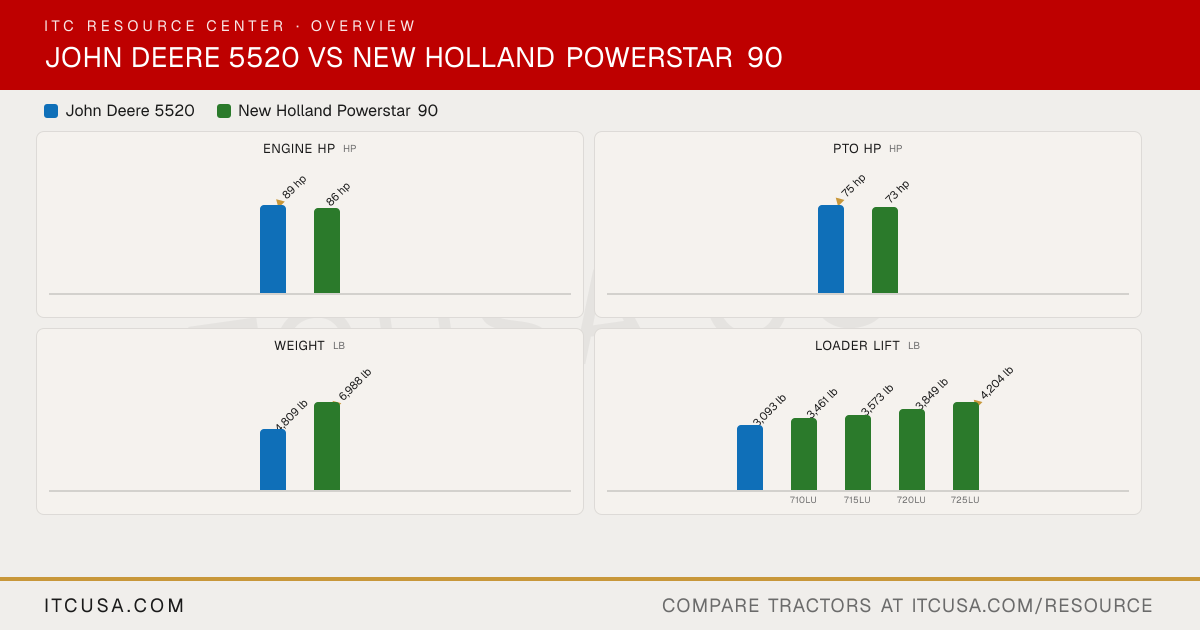

The headline numbers at a glance.

John Deere 5520New Holland Powerstar 90

Engine HPhp

▲89 hp

86 hp

PTO HPhp

▲75 hp

73 hp

Weightlb

4,809 lb

▲6,988 lb

Loader Liftlb

3,093 lb

3,461 lb

3,573 lb

3,849 lb

▲4,204 lb

710LU715LU720LU725LU

3-Pt Lift (24 in)lb

3,374 lb

▲5,620 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere5520	New HollandPowerstar 90


Engine Manufacturer	John Deere	FPT Industrial
Engine Model	4045T	F5G
Engine Type	4-cylinder turbocharged diesel	4-cylinder diesel, turbocharged and aftercooled
No. of Cylinders	4	4
Displacement	278 in³	207 in³
Rated Engine Speed	2400 rpm	2300 rpm
Engine Power (Gross)	89 hp	86 hp
PTO Power	75 hp	73 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Electronic high-pressure common rail fuel injection
Alternator	40 A	ROPS: 120 A; Cab: 150 A

Pump Type	Tandem gear pump	Open-center; dual pumps (implement pump plus dedicated steering pump)
Implement Flow	15.9 gpm	16.9 gpm
Steering Flow	6.6 gpm	9.7 gpm
Total Hydraulic Flow	22.5 gpm (15.9 + 6.6, computed)	26.6 gpm
Overall Hydraulic Pump Flow	Not Published	26.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	15.9 gpm	Not Published
No. of Standard Remote Valves	2 to 3 rear	2 rear remotes (open center with detent)
No. of Optional Remote Valves	Not Published	1 (third rear remote, DIA kit)

Fuel Tank Capacity	22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)	30.3 gal
Coolant Capacity	11.4 qt	Not Published
Crankcase Capacity	9 qt	Not Published
Transmission / Hydraulic System Capacity	10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)	Not Published
Front Axle Fluid Capacity	5.2 qt (MFWD differential housing); 0.74 qt (each wheel hub); 6.6 qt (assembly)	Not Published

PTO Type	Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch	Fully independent hydraulic PTO
PTO Rear	540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle)	540 rpm (standard); 540/1000 rpm with interchangeable shafts (optional)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I and II	Category II
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	3374 lb	5,620 lb
Lift Control Type	Top link draft sensing	Mechanical draft control; Lift-O-Matic PLUS single-lever raise/lower (standard)

Transmission Type	CollarShift 9F/3R standard; SyncShuttle 9F/3R optional (also with shiftable 540/540E PTO); PowrReverser 12F/12R optional	12x12 power shuttle, column-mounted (standard); 20x20 power shuttle with creeper (optional)
No. of Speeds	9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser)	12F/12R (standard); 20F/20R with creeper (optional)
Max Travel Speed (Forward)	16.8 mph (CollarShift and SyncShuttle, gear C-3); 16.8 mph (PowrReverser, gear C-4)	27 mph (4WD front axle); 20 mph (2WD front axle)
Max Travel Speed (Reverse)	14.4 mph (CollarShift and SyncShuttle, gear R-3); 19.5 mph (PowrReverser, gear C-4 reverse)	27.25 mph (12x12, 4WD front axle, 18R34 tires)
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock (pedal); limited-slip 4WD front axle with electrohydraulic engagement

Frame Type	Straddle mount, isolated open operator station (IOOS) or cab; 2WD or MFWD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Hydraulic wet disk, self-adjusting, self-equalizing	Hydraulic wet disc
Seat Suspension & Adjustability	Not Published	Cab: air-suspension cloth seat with armrests, 10° swivel (standard); ROPS: vinyl mechanical-suspension seat with armrests
Front Axle Type	Two-wheel drive or mechanical front wheel drive (MFWD)	Limited-slip 4WD front axle with electrohydraulic engagement (standard); heavy-duty 2WD front axle (optional)
Front Axle Rating	2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader)	9,480 lb (standard limited-slip 4WD front axle, maximum capacity); 10,360 lb (optional heavy-duty 4WD front axle); 7,716 lb (optional 2WD heavy-duty front axle)
Drawbar Capacity	1675 lb (drawbar fully extended); 2470 lb (short position)	Not Published

Overall Length with 3-Point Hitch	151.5 in (straddle mount and IOOS, 2WD and MFWD); 145.5 in (cab 2WD); 148 in (cab MFWD)	163.1 in (2WD); 160.9 in (4WD)
Overall Width	74 in (straddle mount and IOOS, outside edge of tires); 77 in (cab, 60.4 in tread setting)	75.7 in
Wheelbase	86 in (straddle mount and IOOS); 85 in (cab 2WD); 86 in (cab MFWD)	92.2 in (2WD); 89.9 in (4WD)
Ground Clearance	19 in (2WD); 18 in (MFWD) crop clearance, straddle mount and IOOS; 19 in (2WD cab); 15.75 in (MFWD cab)	Not Published
Min. Turn Radius without Brakes	154 in (2WD); 172 in (MFWD engaged); 155 in (MFWD disengaged)	134 in (optional 2WD front axle, w/o brakes)
Height to Top of ROPS	97 in (straddle mount); 105 in (isolated open operator station)	106.5 in
Height to Top of ROPS (folded)	78.5 in (straddle mount); 86 in (isolated open operator station)	Not Published
Height to Top of Cab Model	100 in	102.1 in

Tractor Weight (Base)	4809 lb (2WD straddle mount); 5849 lb (MFWD straddle mount); 5124 lb (2WD IOOS); 6164 lb (MFWD IOOS); 6224 lb (2WD cab); 7264 lb (MFWD cab)	6,988 lb (ROPS/2WD); 7,672 lb (ROPS/4WD); 7,473 lb (cab/2WD); 8,157 lb (cab/4WD)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5-15, 11L-15 (2WD); 9.5-16, 8.3-24, 9.5-24, 12.5/80-18, 11.2-24 (MFWD). Rear: 14.9-28, 16.9-24, 16.9-28, 16.9-30	2WD: 10.00-16 front, 18.4-30 rear; 4WD: 12.4-24 front, 18.4-30 rear (standard); 18.4R34 rear is the reference tire for weights and dimensions
R1 Agricultural - Front	11.2-24 (MFWD)	2WD: 10.00-16; 4WD: 12.4-24
R1 Agricultural - Rear	16.9-30	18.4R34 (reference tire for OEM weights and dimensions)
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published

Quick Attach Loader System	Not Published	Skid-steer-style or Euro-style quick attach faceplate (optional, all four LU loaders)
Loader Model	541 (NSL and MSL); 520M (NSL and MSL); 521	710LU (NSL); 715LU (MSL); 720LU (NSL); 725LU (MSL)
Loader Lift Height	541 NSL: 127 in; 541 MSL: 132 in; 520M NSL: 127 in; 520M MSL: 127 in; 521: 122 in	710LU: 126.3 in; 715LU: 125.9 in; 720LU: 134 in; 725LU: 135 in
Loader Lift Capacity (Full Height)	541 NSL: 3093 lb; 541 MSL: 3214 lb; 520M NSL: 3671 lb; 520M MSL: 2687 lb; 521: 2500 lb (to maximum height at pivot pin)	710LU: 3,461 lb; 715LU: 3,573 lb; 720LU: 3,849 lb; 725LU: 4,204 lb
Loader Breakout Force	541 NSL: 3484 lbf; 541 MSL: 4137 lbf; 520M NSL: 4504 lbf; 520M MSL: 4542 lbf; 521: 3485 lbf (at pivot pin)	710LU: 3,739 lb; 715LU: 3,860 lb; 720LU: 4,455 lb; 725LU: 5,661 lb (31.5 in forward of the bucket pivot point)

Warranty Length & Coverage	Not Published	Not Published
