Compare Tractors

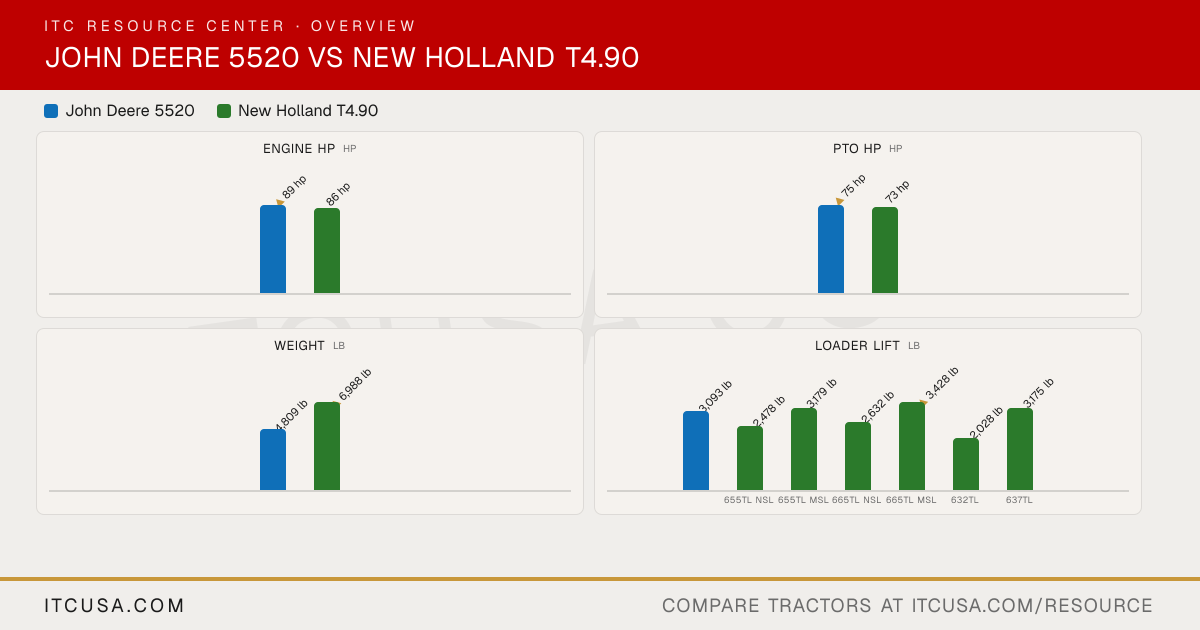

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere5520
New HollandT4.90
Engine Manufacturer
John Deere
FPT Industrial
Engine Model
4045T
F5G
Engine Type
4-cylinder turbocharged diesel
4-cylinder diesel, turbocharged and aftercooled
No. of Cylinders
4
4
Displacement
278 in³
207 in³
Rated Engine Speed
2400 rpm
2300 rpm
Engine Power (Gross)
89 hp
86 hp
PTO Power
75 hp
73 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Not Published
Fuel System
Not Published
Electronic high-pressure common rail fuel injection
Alternator
40 A
Not Published
Pump Type
Tandem gear pump
Open-center tandem gear pumps (implement pump + steering and services pump)
Implement Flow
15.9 gpm
16.9 gpm
Steering Flow
6.6 gpm
9.7 gpm
Total Hydraulic Flow
22.5 gpm (15.9 + 6.6, computed)
26.6 gpm
Overall Hydraulic Pump Flow
Not Published
26.6 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
15.9 gpm
Not Published
No. of Standard Remote Valves
2 to 3 rear
2 or 3 (base)
No. of Optional Remote Valves
Not Published
1 (third rear remote)
Fuel Tank Capacity
22 gal (straddle mount, early model); 25 gal (straddle mount, late model); 27 gal (IOOS or cab, small filler neck); 29.5 gal (IOOS or cab, large filler neck)
30.3 gal
Coolant Capacity
11.4 qt
Not Published
Crankcase Capacity
9 qt
Not Published
Transmission / Hydraulic System Capacity
10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch)
5,620 lb (7,351 lb with optional auxiliary lift ram)
Lift Control Type
Top link draft sensing
Mechanical draft and position control (12x12 models); Electronic Draft Control (EDC) with fender switches (Dual Command cab models); Lift-O-Matic Plus single-lever control (optional on 12x12, standard on Dual Command ROPS)
12x12 mechanical shuttle (standard); 12x12 power shuttle, 20x20 power shuttle with creeper, 24x24 Dual Command Hi-Lo powershift with electrohydraulic power shuttle, or 40x40 Dual Command with creeper (optional)
Ag: 16.9-30 rear with 11.2-24 front; 16.9-34 rear with 13.6-24 front; 18.4-30 rear with 12.4-24 front; 18.4-34 rear with 14.9-24 front. Turf: 16.9-24 rear with 13.6-16.1 front. Industrial: 19.5L24 rear with 12.5/80-18 front
R1 Agricultural - Front
11.2-24 (MFWD)
4WD: 11.2-24, 13.6-24, 12.4-24 or 14.9-24 (paired with 16.9-30, 16.9-34, 18.4-30 or 18.4-34 rears)
R1 Agricultural - Rear
16.9-30
16.9-30, 16.9-34, 18.4-30 or 18.4-34
R3 Turf - Front
Not Published
13.6-16.1
R3 Turf - Rear
Not Published
16.9-24
R4 Industrial - Front
Not Published
12.5/80-18
R4 Industrial - Rear
Not Published
19.5L24
Quick Attach Loader System
Not Published
Skid-steer-style or Euro-style quick attach faceplate
Loader Model
541 (NSL and MSL); 520M (NSL and MSL); 521
Factory-fit: 655TL (NSL or MSL), 665TL (NSL or MSL); field-fit: 632TL (NSL), 637TL (MSL)
