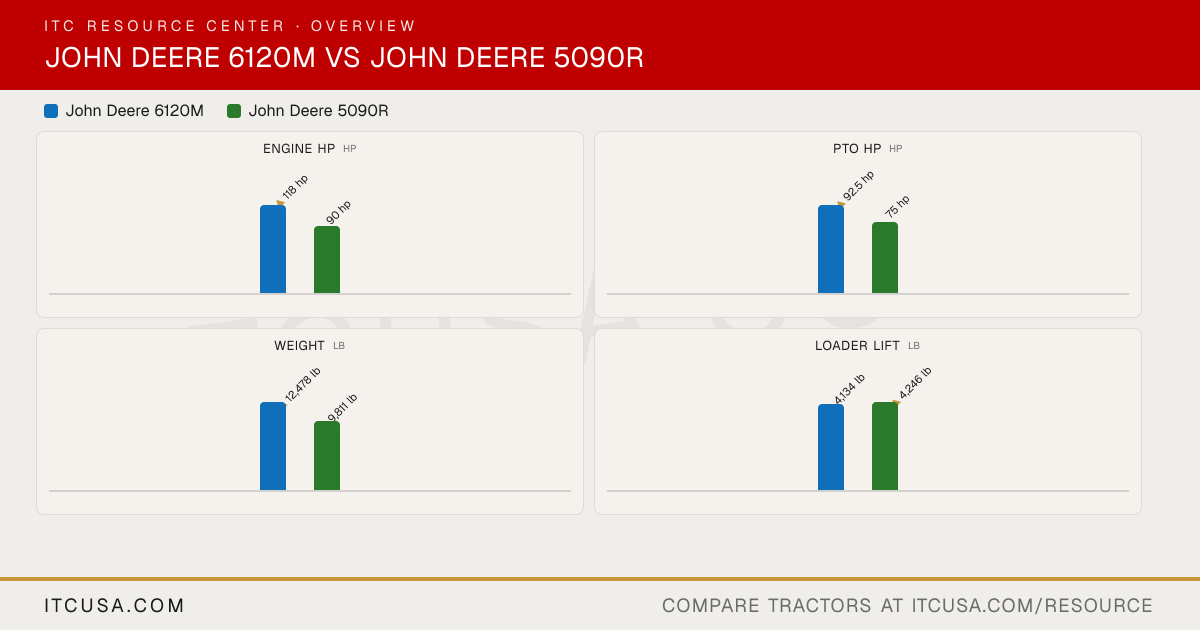

John Deere 6120M vs John Deere 5090R | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Open center (standard); closed center PFC (optional)
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2 (mechanical, 200 Series; rear)
2 rear and 2 mid (stackable)
No. of Optional Remote Valves
Up to 4 total (rear, 450 Series electronic)
Rear: 3 (mechanical or proportional EH, optional; 4th rear by conversion kit); Mid: 3 Deluxe (mechanical or EH, optional)
Fuel Tank Capacity
51.5 gal
38 gal
Coolant Capacity
5.8 gal
4.25 gal
Crankcase Capacity
4.2 gal
3.1 gal
Transmission / Hydraulic System Capacity
13.7 gal (PowrQuad Plus/AutoQuad Plus)
11.75 gal (open center); 12.5 gal (closed center PFC)
Front Axle Fluid Capacity
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
1.3 gal (MFWD differential housing); 0.2 gal (each wheel hub)
PTO Type
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional)
Cab standard with air conditioning; mechanical front-wheel drive (MFWD)
Steering
Hydrostatic steering
Hydrostatic power steering
Brakes
Hydraulically boosted service brakes
Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake
Seat Suspension & Adjustability
Economy: seat with mechanical suspension, standard; standard: seat with air-suspension, optional
Not Published
Front Axle Type
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
MFWD, electro-hydraulic engagement, planetary final drives
Front Axle Rating
9,655 lb (MFWD)
7,937 lb (MFWD closed center); 7,055 lb (MFWD open center)
Drawbar Capacity
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended)
Overall Width
100.4 in (maximum width for road travel)
87 in (with fender extension); 74 in (without fender extension); 66.9 in (narrow cab, without fender extension)
Wheelbase
94.5 in
88.6 in
Ground Clearance
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Not Published
Min. Turn Radius without Brakes
14 ft (4.36 m) (6110M & 6120M)
Not Published
Height to Top of ROPS
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
