John Deere 6120M vs John Deere 5100E | Side-by-side comparison | ITC Resource Center
Compare Tractors

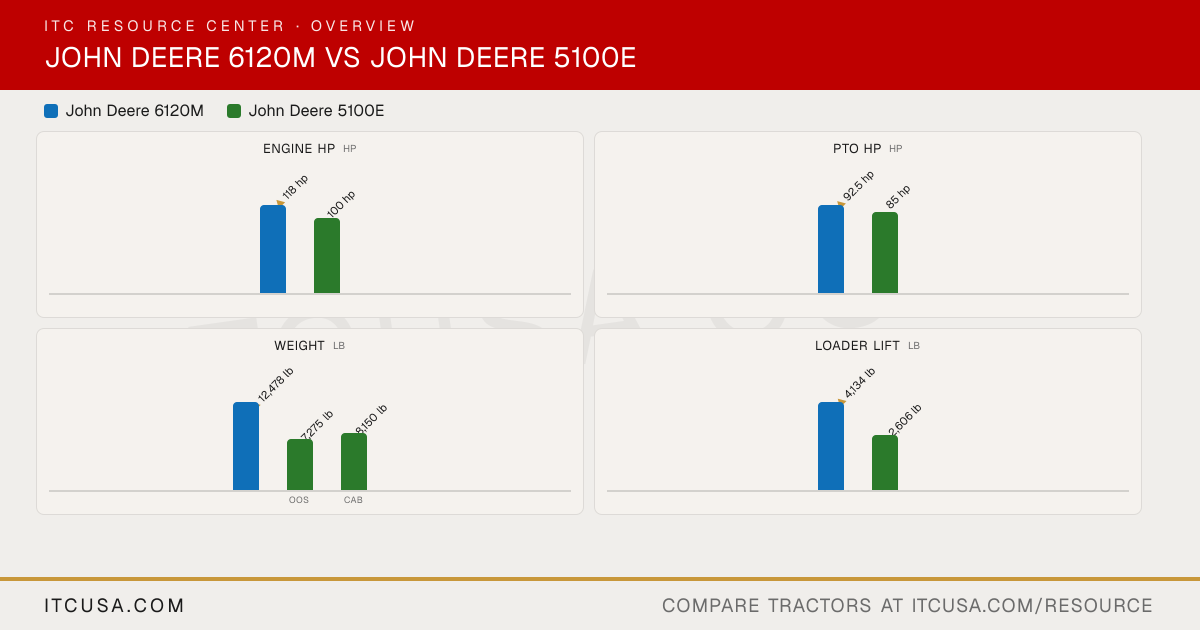

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere6120M
John Deere5100E
Engine Manufacturer
John Deere
John Deere
Engine Model
PowerTech EWL
PowerTech PWL 4045
Engine Type
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
Diesel, turbocharged, aftercooled
No. of Cylinders
4
4
Displacement
275 in³
276 in³
Rated Engine Speed
2100 rpm
2400 rpm
Engine Power (Gross)
118 hp @ 2,100 rpm
100 hp
PTO Power
92.5 hp
85 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Cool-Gard II coolant, 5.8 gal system capacity
Liquid-cooled
Air Cleaner
Primary and secondary air filter elements
Dry type with safety element
Fuel System
Not Published
High Pressure Common Rail
Alternator
125 A, 14 V
OOS: 90 A; Cab: 120 A
Pump Type
Not Published
Tandem gear pump (implement + steering)
Implement Flow
Not Published
15.9 gpm
Steering Flow
Not Published
6.6 gpm
Total Hydraulic Flow
21.1 gpm standard; 30.1 gpm optional
22.5 gpm
Overall Hydraulic Pump Flow
21.1 gpm standard; 30.1 gpm optional
22.5 gpm
Hydraulic System Type
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2 (mechanical, 200 Series; rear)
2
No. of Optional Remote Valves
Up to 4 total (rear, 450 Series electronic)
3
Fuel Tank Capacity
51.5 gal
OOS: 25 gal; Cab: 30 gal
Coolant Capacity
5.8 gal
Cab: 3 gal; OOS: 2.5 gal
Crankcase Capacity
4.2 gal
3.2 gal (with filter)
Transmission / Hydraulic System Capacity
13.7 gal (PowrQuad Plus/AutoQuad Plus)
11.5 gal
Front Axle Fluid Capacity
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
Hydraulic wet disc brakes, self-equalizing and self-adjusting
Seat Suspension & Adjustability
Economy: seat with mechanical suspension, standard; standard: seat with air-suspension, optional
Not Published
Front Axle Type
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
Mechanical front wheel drive (MFWD)
Front Axle Rating
9,655 lb (MFWD)
6,615 lb
Drawbar Capacity
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
Standard: 2,755 lb; 2,425 lb (350 and 15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350 and 15.7 in extended)
Overall Width
100.4 in (maximum width for road travel)
Not Published
Wheelbase
94.5 in
92.5 in
Ground Clearance
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
ROPS: 17 in; Cab: 15.2 in
Min. Turn Radius without Brakes
14 ft (4.36 m) (6110M & 6120M)
Not Published
Height to Top of ROPS
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
100.8 in
Height to Top of ROPS (folded)
Not Published
78.6 in
Height to Top of Cab Model
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
