John Deere 6120M vs John Deere 5100M | Side-by-side comparison | ITC Resource Center
Compare Tractors

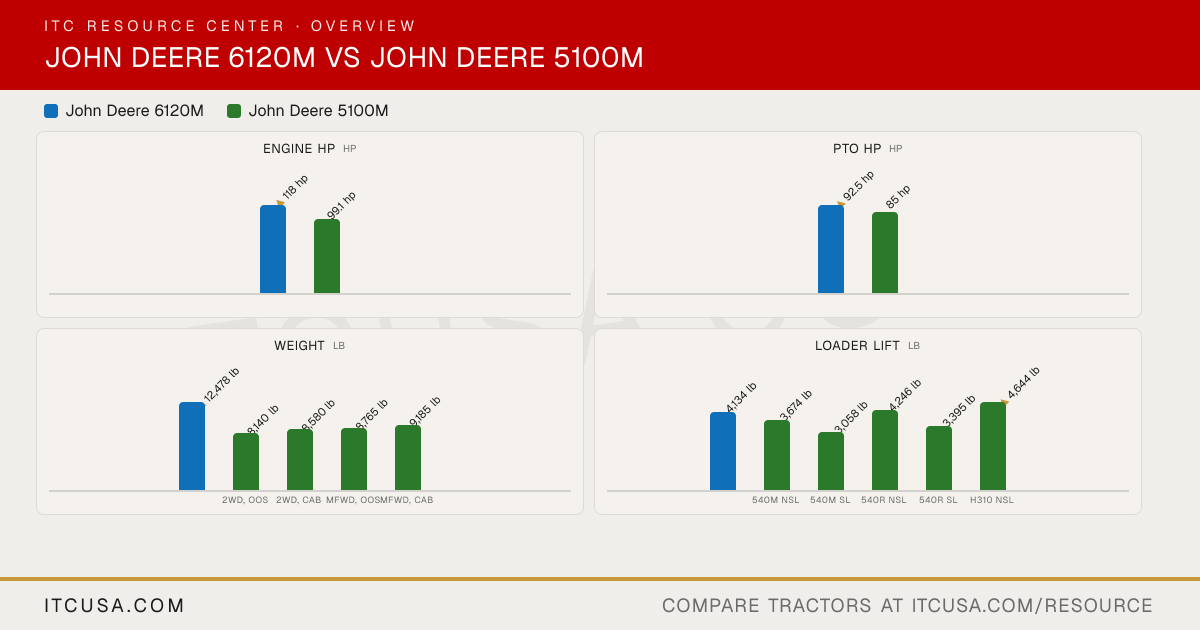

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere6120M
John Deere5100M
Engine Manufacturer
John Deere
John Deere
Engine Model
PowerTech EWL
PowerTech 4045 PWL
Engine Type
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
Diesel, turbocharged, air-to-air aftercooled
No. of Cylinders
4
4
Displacement
275 in³
276 in³
Rated Engine Speed
2100 rpm
2100 rpm
Engine Power (Gross)
118 hp @ 2,100 rpm
99.1 hp
PTO Power
92.5 hp
85 hp @ 100 rpm
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Cool-Gard II coolant, 5.8 gal system capacity
Liquid-cooled (Cool-Gard II coolant)
Air Cleaner
Primary and secondary air filter elements
Dry air cleaner, primary and secondary elements
Fuel System
Not Published
High pressure common rail (HPCR); electronic fuel control
Alternator
125 A, 14 V
OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V
Pump Type
Not Published
Tandem gear pump
Implement Flow
Not Published
18.4 gpm
Steering Flow
Not Published
6.3 gpm
Total Hydraulic Flow
21.1 gpm standard; 30.1 gpm optional
24.7 gpm
Overall Hydraulic Pump Flow
21.1 gpm standard; 30.1 gpm optional
24.7 gpm
Hydraulic System Type
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2 (mechanical, 200 Series; rear)
2 (rear, Dual SCV)
No. of Optional Remote Valves
Up to 4 total (rear, 450 Series electronic)
3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal
PTO Type
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in
Wheelbase
94.5 in
92.5 in
Ground Clearance
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Not Published
Min. Turn Radius without Brakes
14 ft (4.36 m) (6110M & 6120M)
Not Published
Height to Top of ROPS
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
102.1 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
