Compare Tractors

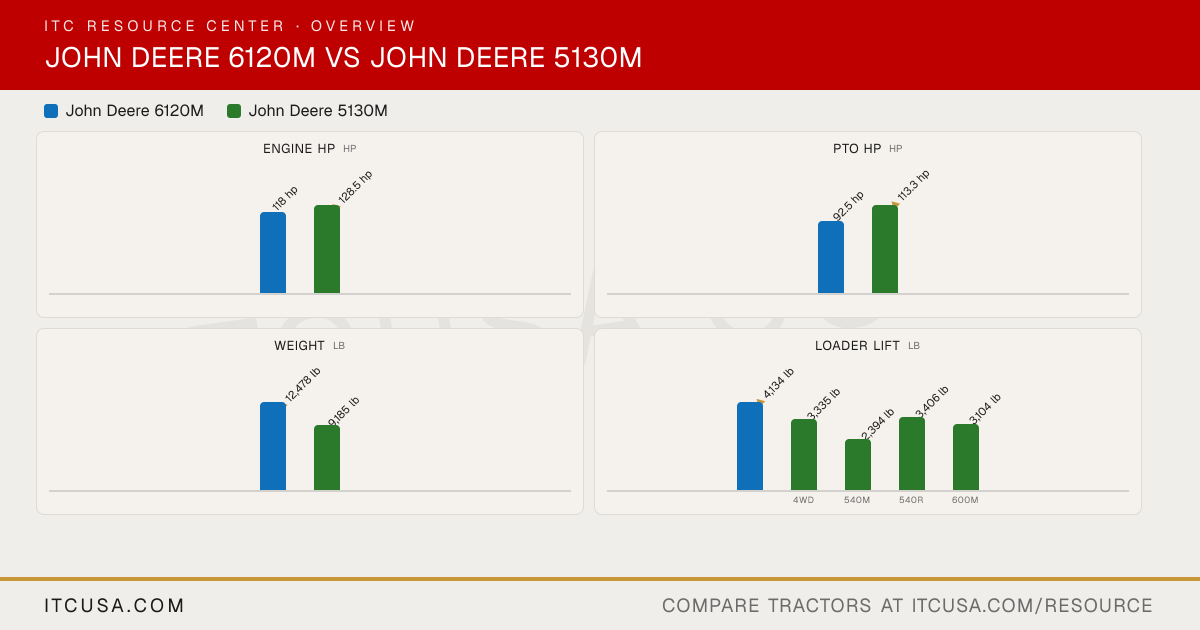

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere6120M
John Deere5130M
Engine Manufacturer
John Deere
John Deere
Engine Model
PowerTech EWL
PowerTech 4045 EWL
Engine Type
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
Diesel, turbocharged with intercooler, 4-valve HPCR
No. of Cylinders
4
4
Displacement
275 in³
276 in³
Rated Engine Speed
2100 rpm
2200 rpm
Engine Power (Gross)
118 hp @ 2,100 rpm
128.5 hp
PTO Power
92.5 hp
113.3 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Cool-Gard II coolant, 5.8 gal system capacity
Not Published
Air Cleaner
Primary and secondary air filter elements
Dry type air cleaner with safety element
Fuel System
Not Published
High-pressure common rail (HPCR), 4-valve
Alternator
125 A, 14 V
120 A, 12 V
Pump Type
Not Published
Tandem gear pump
Implement Flow
Not Published
18.4 gpm
Steering Flow
Not Published
6.3 gpm
Total Hydraulic Flow
21.1 gpm standard; 30.1 gpm optional
25.6 gpm
Overall Hydraulic Pump Flow
21.1 gpm standard; 30.1 gpm optional
25.6 gpm
Hydraulic System Type
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2 (mechanical, 200 Series; rear)
2 (rear); 2 (mid)
No. of Optional Remote Valves
Up to 4 total (rear, 450 Series electronic)
Up to 3 total (rear); up to 3 total (mid)
Fuel Tank Capacity
51.5 gal
43.7 gal (Standard Cab)
Coolant Capacity
5.8 gal
Not Published
Crankcase Capacity
4.2 gal
Not Published
Transmission / Hydraulic System Capacity
13.7 gal (PowrQuad Plus/AutoQuad Plus)
Not Published
Front Axle Fluid Capacity
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
Not Published
PTO Type
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
MFWD
Front Axle Rating
9,655 lb (MFWD)
Not Published
Drawbar Capacity
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
3,197 lb
Overall Width
100.4 in (maximum width for road travel)
Not Published
Wheelbase
94.5 in
92.5 in
Ground Clearance
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Not Published
Min. Turn Radius without Brakes
14 ft (4.36 m) (6110M & 6120M)
13.1 ft
Height to Top of ROPS
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Applicable
Height to Top of Cab Model
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
Not Published
Overall Length
172.3 in
Not Published
Tractor Weight (Base)
12,478 lb (total weight, without fuel in tank)
9,185 lb
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural
R1 Agricultural - Front
Not Published
12.4R24
R1 Agricultural - Rear
Not Published
18.4R30
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
12.5/80-18 in, 12PR R4 Bias
R4 Industrial - Rear
Not Published
19.5L-24 in, 10PR R4 Bias
Quick Attach Loader System
Automatic mast latch
Not Published
Loader Model
600R; 620R (up to MY19); 640R (up to MY19)
520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only)
Loader Lift Height
600R: 154 in
520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in
