Tractor Comparison

Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.

—

JohnDeere8RX410

—

JohnDeere1023E

Comparison loaded for 2 tractors.

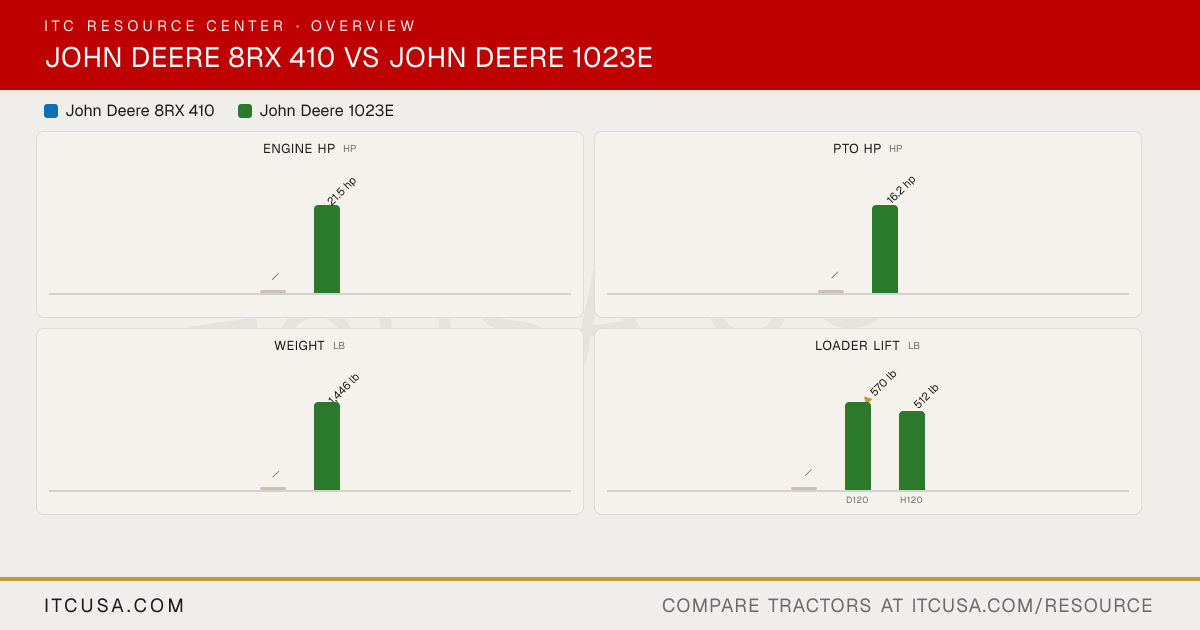

Spec	John Deere8RX 410	John Deere1023E


PTO Power	—	14.5 hp
Mid PTO (Type / RPM)	—	Mid PTO Standard Equipment
Rear PTO (Type / RPM)	—	540-RPM Rear PTO

Three-Point Hitch Category	—	Limited Category 1, 3-Pt. Hitch
Lift Capacity at 24 in Behind	—	758 lb

PTO Power	—	16.2 hp
Alternator	—	40 A
Air Cleaner	—	Dual element
Engine Type	—	Diesel
Fuel System	—	Indirect injection
Displacement	—	60.6 in³
No. of Cylinders	—	3
Rated Engine Speed	—	3200 rpm
Cooling System Type	—	Water pump
Engine Manufacturer	—	Yanmar
Engine Emissions Constraints	—	Tier 4
Engine Power (Gross)	—	21.5 hp @ 200 rpm

Tractor Weight (Base)	—	Open station: 1446 lb
Weight with ROPS and Loader	—	1446 lb

Pump Type	—	Single gear
Steering Flow	—	3.5 gpm
Implement Flow	—	3.5 gpm
Pump Flow (Total)	—	6.3 GPM
Pump Flow (Steering)	—	3.5 gpm
Total Hydraulic Flow	—	6.3 gpm 23.8 lpm
Hydraulic System Type	—	Open center
Pump Flow (Implement)	—	3.5 gpm
System Operating Pressure	—	2000 PSI
Rear Remote Hydraulic Flow	—	3.5 gpm (13.3 lpm) implement circuit
Overall Hydraulic Pump Flow	—	6.3 gpm total (2.8 gpm steering + 3.5 gpm implement)
No. of Optional Remote Valves	—	1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs)

Wheelbase	—	57.1 in.
Ground Clearance	—	7.7 in.

PTO Rear	—	540 rpm
PTO Type	—	independent
Lift Control Type	—	Position control (rockshaft lever)
Hitch Lift Capacity	—	1,433 lbs 1,433 lb
Mid-PTO Availability	—	2100 rpm
Category, 3-Point Hitch	—	Limited Category 1
Hitch Lift Capacity (at 24”)	—	758 lb

R3 Turf - Rear	—	26x12-12
R3 Turf - Front	—	18x8.50-10
R4 Industrial - Rear	—	26x12-12
R4 Industrial - Front	—	18x8.5-10
R1 Agricultural - Rear	—	26x12-12
R1 Agricultural - Front	—	18x8.5-10

Transmission Type	—	Hydrostatic Transmission: Infinitely Variable - 2 Speed Transaxle

Coolant Capacity	—	0.98 gal
Crankcase Capacity	—	0.71 gal
Fuel Tank Capacity	—	5.6 gal
Front Axle Fluid Capacity	—	0.74 gal
Transmission / Hydraulic System Capacity	—	3.3 gal
Transmission/Hydraulic Capacity	—	3.3 gal

Loader Lift Height	—	71.2 in (D120 and H120 loaders)
Quick Attach Loader System	—	Quik-Park Loader System
Loader Lift Capacity (Full Height)	—	D120: 570 lb; H120: 512 lb (at full height, 71.2 in)

Clutch	—	Wet disk
No. of Speeds	—	Infinite (hydrostatic, 2-range)
Transmission Type	—	Hydrostatic - two range
Max Travel Speed (Forward)	—	9.1 mph
Max Travel Speed (Reverse)	—	9.1 mph
Differential Lock & Limited Slip Options	—	Differential lock Yes; Limited slip differential No

Brakes	—	Wet disc (left-hand pedal)
Steering	—	Power
Frame Type	—	Open center frame with two-post foldable ROPS
Front Axle Type	—	MFWD (Mechanical Front-Wheel Drive) 4WD
Front Axle Rating	—	1349 lb
Seat Suspension & Adjustability	—	Spring suspension seat, adjusts fore/aft

Wheelbase	—	57.1 in.
Overall Width	—	47.2 in with R3 tires; 47.3 in with R4 tires
Ground Clearance	—	7.7 in.
Height to Top of ROPS	—	78.6 in
Min. Turn Radius without Brakes	—	2.51 m 8.2 ft
Overall Length with 3-Point Hitch	—	87.6 in

Financing Options	—	0% APR fixed rate for 60 months; $140 Low Monthly Payment Option
Warranty Length & Coverage	—	6-year powertrain warranty (as stated in 2016 review; current terms may vary)

Accessories that fit	ITC SawBoss - Lifetime Warranty Chainsaw Scabbard $180.00 The best chainsaw carrier ever built for a tractor. ITC Tractor Recovery Kit $300.00 The one and only Kinetic Recovery Kit designed with tractor owners in mind with some major upgrades over the entire marketplace. Milwaukee Packout Mount for Tractors $100.00 Universal-fitting Milwaukee Packout bracket. Major upgrade to on tractor storage. ITC Tractor Toolbox Kit $120.00 Toolbox kit from out Modular Tool System. Part of a larger ecosystem of attachments. Semi Universal Tractor Grab Handle $75.00 Quick Clamp on grab handle that fits most tractors, check the product listing for fitment details.	ITC SawBoss - Lifetime Warranty Chainsaw Scabbard $180.00 The best chainsaw carrier ever built for a tractor. ITC Tractor Recovery Kit $300.00 The one and only Kinetic Recovery Kit designed with tractor owners in mind with some major upgrades over the entire marketplace. Milwaukee Packout Mount for Tractors $100.00 Universal-fitting Milwaukee Packout bracket. Major upgrade to on tractor storage. ITC Tractor Toolbox Kit $120.00 Toolbox kit from out Modular Tool System. Part of a larger ecosystem of attachments. Semi Universal Tractor Grab Handle $75.00 Quick Clamp on grab handle that fits most tractors, check the product listing for fitment details.
