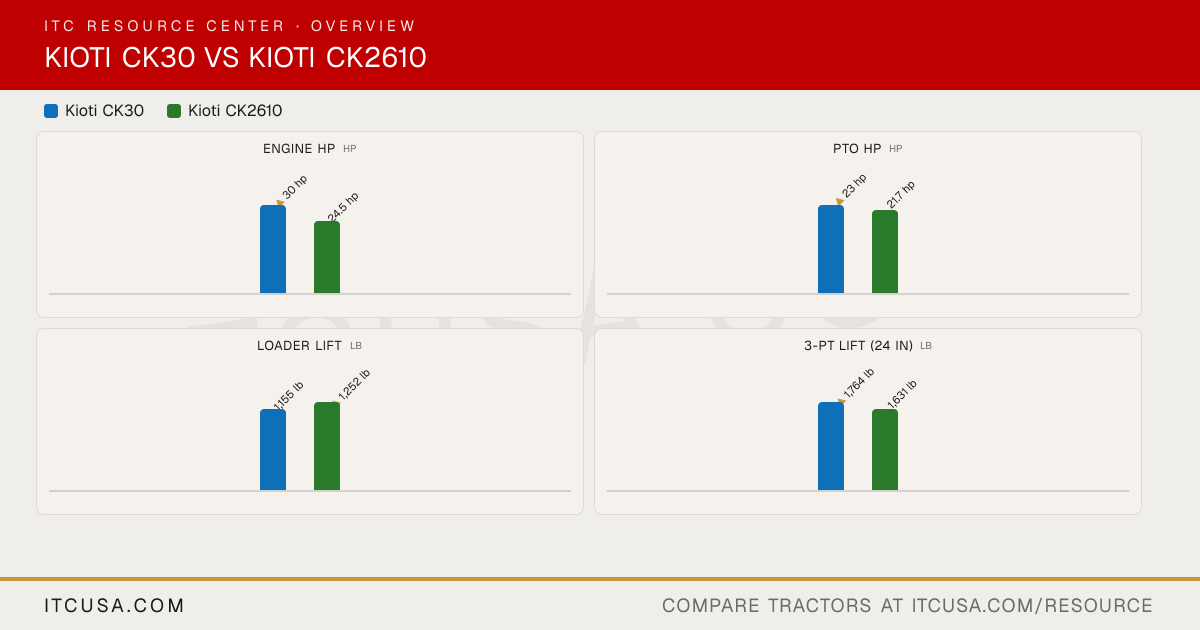

▶ EnginePTO Power 23 hp 21.7 hp Alternator Not Published Not Published Air Cleaner Not Published Not Published Engine Type Liquid-cooled, diesel Liquid-cooled, diesel Fuel System Not Published Not Published Displacement 91.5 in³ 100.5 in³ No. of Cylinders 3 3 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Liquid-cooled Liquid-cooled Engine Manufacturer KIOTI (Daedong) KIOTI (Daedong) Engine Power (Gross) 30 hp 24.5 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Published ▶ HydraulicsPump Type Not Published Not Published Steering Flow Not Published Not Published Implement Flow Not Published Not Published Total Hydraulic Flow 12.7 gpm 11.7 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 12.7 gpm 11.7 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves Not Published Not Published ▶ PTO & HitchPTO Rear 540/1000 rpm 540 rpm PTO Type Live (two-stage clutch) Live Lift Control Type Not Published Position control Hitch Lift Capacity 1,764 lb (at 24 in) 1,631 lb (at 24 in) Mid-PTO Availability Yes (2,000 rpm) Optional Category, 3-Point Hitch Category 1 Category 1 Hitch Lift Capacity (at 24”) 1,764 lb 1,631 lb ▶ Tire OptionsR3 Turf - Rear 41X14.00-20 41X14-20 R3 Turf - Front 27X8.50-15 28X8.5-15 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 15-19.5 15-19.5 R4 Industrial - Front 25X8.50-14 27X8.5-15 R1 Agricultural - Rear 11.2-24 11.2-24 R1 Agricultural - Front 7.0-14 7-16 ▶ Fluid CapacityCoolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Fuel Tank Capacity 7.9 gal 9.0 gal Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published ▶ Loader & AttachmentsLoader Lift Height 92.5 in 98.4 in Loader Breakout Force 2,046 lb 2,110 lb Quick Attach Loader System Not Published Quick-attach (QA) bucket Loader Lift Capacity (Full Height) 1,155 lb 1,252 lb ▶ Transmission & DrivetrainClutch Two-stage clutch Dry dual stage No. of Speeds 8F/8R 9F/3R Transmission Type 8-speed synchronized shuttle 9-speed gear Max Travel Speed (Forward) 14.2 mph 10.08 mph Max Travel Speed (Reverse) Not Published 9.6 mph Differential Lock & Limited Slip Options Not Published Mechanical rear ▶ Chassis, Steering & ControlsBrakes Wet disc brakes Wet multi-disc Steering Power steering Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type 4WD 4WD Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Fully Adjustable Suspension Seat ▶ Dimensions & ManeuverabilityWheelbase 66.1 in 65.7 in Overall Width 54.6 in 55.1 in (R1); 63.1 in (R4) Ground Clearance 13.82 in 13.4 in Height to Top of ROPS 96.8 in 99.2 in Height to Top of Cab Model Not Applicable Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 122.2 in 120.9 in ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ ITC Company AccessoriesAccessories that fit
