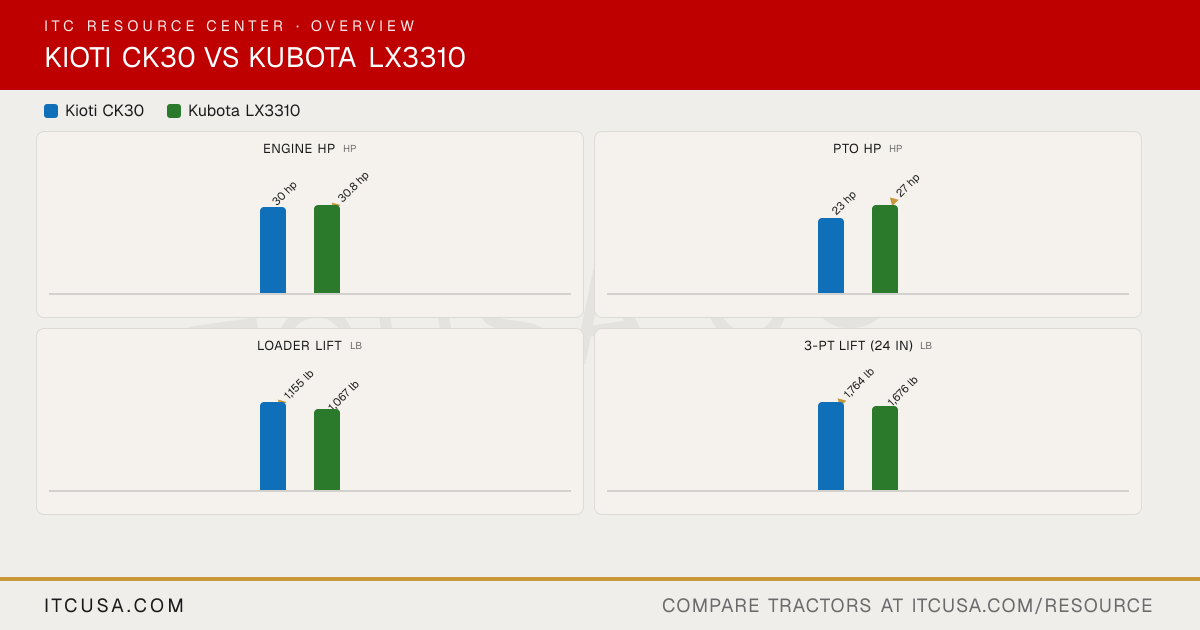

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KiotiCK30
KubotaLX3310
PTO Power
23 hp
27 hp
Alternator
Not Published
Not Published
Air Cleaner
Not Published
6.0 inch Dual paper element
Engine Type
Liquid-cooled, diesel
E-TVCS, liquid cooled, 4-cylinder, diesel
Fuel System
Not Published
Not Published
Displacement
91.5 in³
91.4 in³
No. of Cylinders
3
4
Rated Engine Speed
2600 rpm
2500 rpm
Cooling System Type
Liquid-cooled
Pressurized radiator
Engine Manufacturer
KIOTI (Daedong)
Kubota
Engine Power (Gross)
30 hp
30.8 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Pump Type
Not Published
Dual pump
Steering Flow
Not Published
Not Published
Implement Flow
Not Published
Not Published
Total Hydraulic Flow
12.7 gpm
8.7 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
12.7 gpm
8.7 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540/1000 rpm
540 rpm
PTO Type
Live (two-stage clutch)
Independent
Lift Control Type
Not Published
Position control valve
Hitch Lift Capacity
1,764 lb (at 24 in)
2139 lb
Mid-PTO Availability
Yes (2,000 rpm)
2500 rpm
Category, 3-Point Hitch
Category 1
Category I
Hitch Lift Capacity (at 24”)
1,764 lb
1676 lb
R3 Turf - Rear
41X14.00-20
Not Published
R3 Turf - Front
27X8.50-15
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
15-19.5
12.4-16
R4 Industrial - Front
25X8.50-14
23X8.50-14
R1 Agricultural - Rear
11.2-24
12.4-16
R1 Agricultural - Front
7.0-14
7.0-12
Coolant Capacity
Not Published
4.5 qt
Crankcase Capacity
Not Published
5.1 qt
Fuel Tank Capacity
7.9 gal
8.3 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
4.0 gal
Loader Lift Height
92.5 in
84 in
Loader Breakout Force
2,046 lb
2245 lb
Quick Attach Loader System
Not Published
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)
1,155 lb
1067 lb
Clutch
Two-stage clutch
N/A
No. of Speeds
8F/8R
3 ranges
Transmission Type
8-speed synchronized shuttle
Hydrostatic transmission
Max Travel Speed (Forward)
14.2 mph
13.6 mph
Max Travel Speed (Reverse)
Not Published
10.3 mph
Differential Lock & Limited Slip Options
Not Published
Differential lock standard
Brakes
Wet disc brakes
Multi-plate wet disc
Steering
Power steering
Hydraulic power steering
Frame Type
Not Published
Not Published
Front Axle Type
4WD
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Deluxe high-back suspension seat
Wheelbase
66.1 in
65.6 in
Overall Width
54.6 in
53.7 in
Ground Clearance
13.82 in
14.6 in
Height to Top of ROPS
96.8 in
88.4 in
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Overall Length with 3-Point Hitch
122.2 in
Not Published
Warranty Length & Coverage
Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
