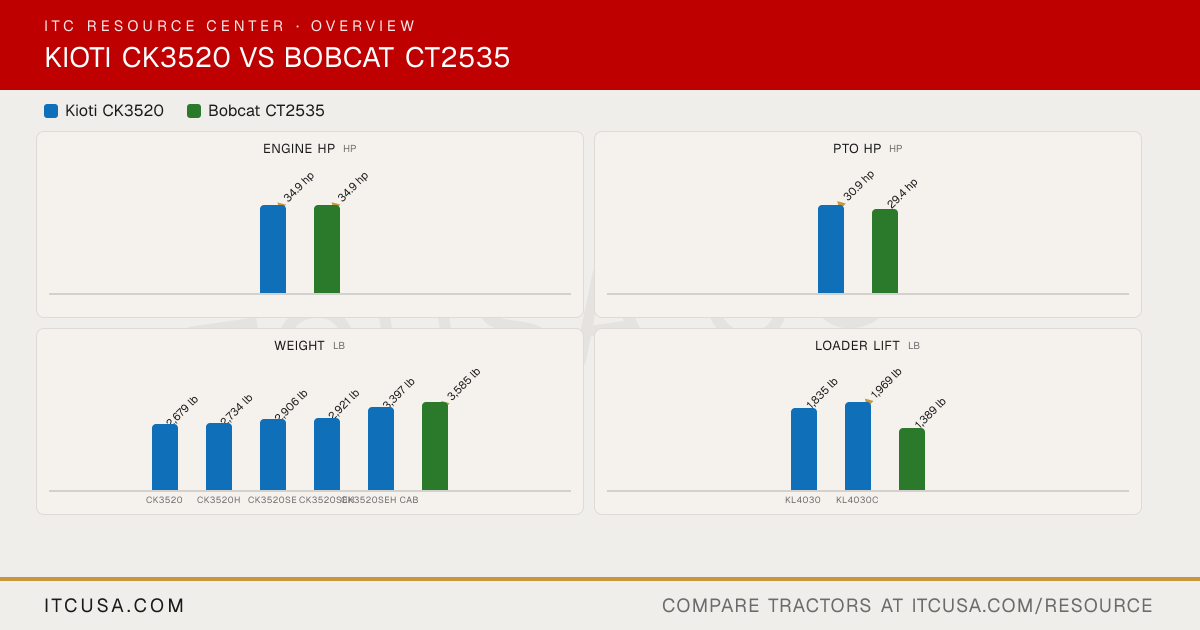

▶ EngineEngine Manufacturer KIOTI Daedong Engine Model CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 3F-TM(H)4 Engine Type 3-cylinder, in-line, liquid-cooled diesel 3-cylinder, water-cooled, 4-cycle, vertical in-line CRDI diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34.9 hp 34.9 hp PTO Power CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp 29.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Dry type, replaceable Fuel System Not Published Common rail direct injection (CRDI) Alternator Not Published 75 A, 12 V ▶ HydraulicsPump Type Gear Not Published Implement Flow CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm 6.9 gpm Steering Flow CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm 4.5 gpm Total Hydraulic Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm 11.4 gpm Overall Hydraulic Pump Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm 11.4 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2 2 pairs No. of Optional Remote Valves CK3520, CK3520H: 2 None additional; 2 pairs (4 ports) are standard ▶ Fluid CapacityFuel Tank Capacity 9.0 gal 9.0 gal Coolant Capacity 0.89 gal 3.5 qt Crankcase Capacity 1.6 gal 7.8 qt Transmission / Hydraulic System Capacity 5.8 gal 5.8 gal Front Axle Fluid Capacity 1.6 gal 6.3 qt ▶ PTO & HitchPTO Type CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent Independent PTO Rear 540 rpm (1-3/8 in, 6 splines) 540 rpm Mid-PTO Availability Optional, 2,000 rpm Optional, 1988 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,270 lb 2271 lb Hitch Lift Capacity (at 24”) 1,631 lb 1631 lb Lift Control Type Position control Hydraulic position control ▶ Transmission & DrivetrainTransmission Type CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle Hydrostatic (HST), 3-range No. of Speeds CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R Infinite (3 ranges) Max Travel Speed (Forward) CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph 14.0 mph Max Travel Speed (Reverse) CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph 9.7 mph Clutch CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic) n/a (hydrostatic transmission) Differential Lock & Limited Slip Options Rear differential lock (standard) Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Not Published Textile suspension seat with retractable seat belt Front Axle Type 4WD, manual engagement 4WD with manual (mechanical) engagement Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb 1433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 120.9 in Overall Width 54.5 in 63.0 in Wheelbase 65.7 in 65.7 in Ground Clearance 13.4 in 12.3 in Min. Turn Radius without Brakes 107.5 in 106.3 in Height to Top of ROPS 92.9 in n/a (cab model) Height to Top of ROPS (folded) Not Published n/a (cab model) Height to Top of Cab Model 92.5 in 91.0 in ▶ WeightTractor Weight (Base) CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb 3585 lb Weight with ROPS and Loader Not Published n/a (cab model) Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) Agricultural (R1), Turf (R3), Industrial (R4) R1 Agricultural - Front 7-16 7-16 R1 Agricultural - Rear 11.2-24 11.4-24 R3 Turf - Front 28x8.5-15/6 27x8.5-15 R3 Turf - Rear 41x14-20/4 41x14-20 R4 Industrial - Front 27x8.5-15 25x8.5-14 R4 Industrial - Rear 15-19.5 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Standard quick attach mounting system Loader Model KL4030; KL4030C FL8 Loader Lift Height 98.4 in (KL4030 and KL4030C loaders) 99.6 in Loader Lift Capacity (Full Height) KL4030: 1,835 lb; KL4030C: 1,969 lb 1389 lb Loader Breakout Force KL4030: 3,464 lb; KL4030C: 2,989 lb 3285 lb ▶ WarrantyWarranty Length & Coverage 24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor 24 months or 1,500 hours, whichever occurs first (defects in material and workmanship) ▶ ITC Company AccessoriesAccessories that fit
