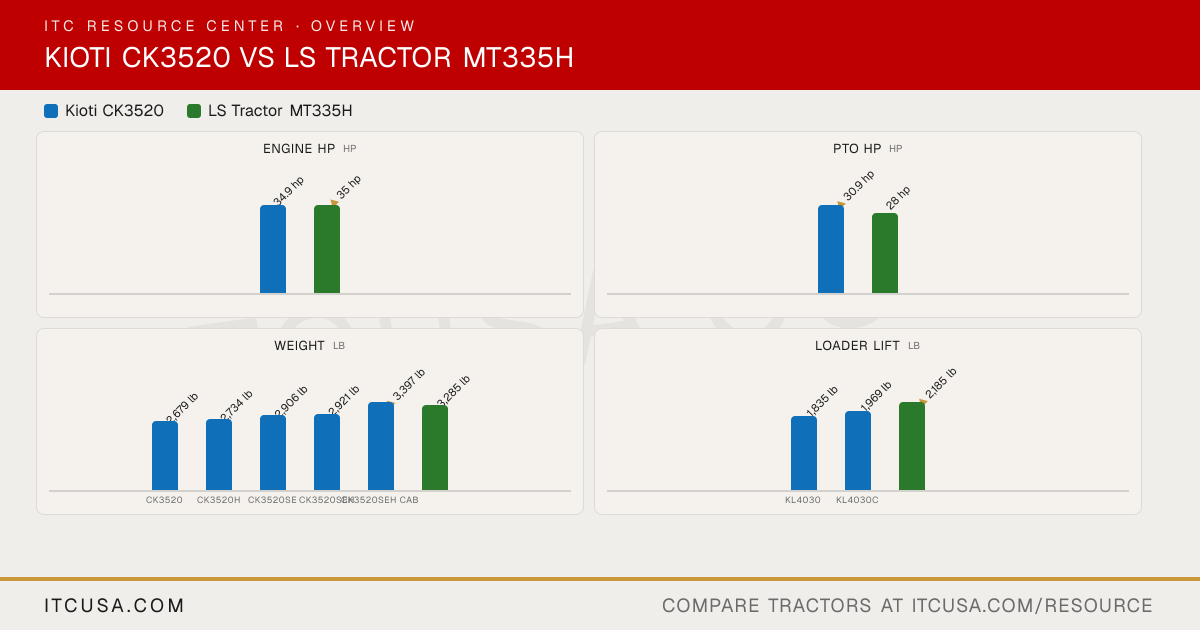

▶ EngineEngine Manufacturer KIOTI LS Mtron Engine Model CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 L3C19-T Engine Type 3-cylinder, in-line, liquid-cooled diesel 3 Cylinder, CRDI, water-cooled turbo diesel No. of Cylinders 3 3 Displacement 111.4 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34.9 hp 35 hp PTO Power CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp 28 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Dry Fuel System Not Published Delphi, CRDI Alternator Not Published 85 A, 12 V ▶ HydraulicsPump Type Gear Gear pump, engine drive Implement Flow CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm 8.2 gpm Steering Flow CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm 5.5 gpm Total Hydraulic Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm 13.7 gpm Overall Hydraulic Pump Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm 13.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2 2 Pair No. of Optional Remote Valves CK3520, CK3520H: 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 9.0 gal 10.6 gal Coolant Capacity 0.89 gal 1.9 gal Crankcase Capacity 1.6 gal 1.5 gal Transmission / Hydraulic System Capacity 5.8 gal 7.9 gal Front Axle Fluid Capacity 1.6 gal 1.7 gal ▶ PTO & HitchPTO Type CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent Independent PTO Rear 540 rpm (1-3/8 in, 6 splines) 540 rpm Mid-PTO Availability Optional, 2,000 rpm Optional (2,000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,270 lb 1,808 lb Hitch Lift Capacity (at 24”) 1,631 lb 1,433 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle Hydrostatic (HST) No. of Speeds CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R Infinite, 3 ranges (HST) Max Travel Speed (Forward) CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph Not Published Max Travel Speed (Reverse) CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph Not Published Clutch CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic) Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Wet multi-disc Wet, Multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type 4WD, manual engagement Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 124.3 in Overall Width 54.5 in 59.3 in Wheelbase 65.7 in 66 in Ground Clearance 13.4 in Not Published Min. Turn Radius without Brakes 107.5 in Not Published Height to Top of ROPS 92.9 in 93 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.5 in Not Published ▶ WeightTractor Weight (Base) CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb 3,285 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 7-16 9.5-16 R1 Agricultural - Rear 11.2-24 14.9-24 R3 Turf - Front 28x8.5-15/6 25x8.5-14 R3 Turf - Rear 41x14-20/4 41x14-20 R4 Industrial - Front 27x8.5-15 25x8.5-14 R4 Industrial - Rear 15-19.5 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LL3116: Standard Skid Steer Coupler (skid-steer compatible quick-attach) Loader Model KL4030; KL4030C LL3116 Loader Lift Height 98.4 in (KL4030 and KL4030C loaders) 94.4 in Loader Lift Capacity (Full Height) KL4030: 1,835 lb; KL4030C: 1,969 lb LL3116: 2,185 lb Loader Breakout Force KL4030: 3,464 lb; KL4030C: 2,989 lb 3,612 lb ▶ WarrantyWarranty Length & Coverage 24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor 6-year limited powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
