Kioti CS2210 vs TYM T224 | Side-by-side comparison | ITC Resource Center
Compare Tractors

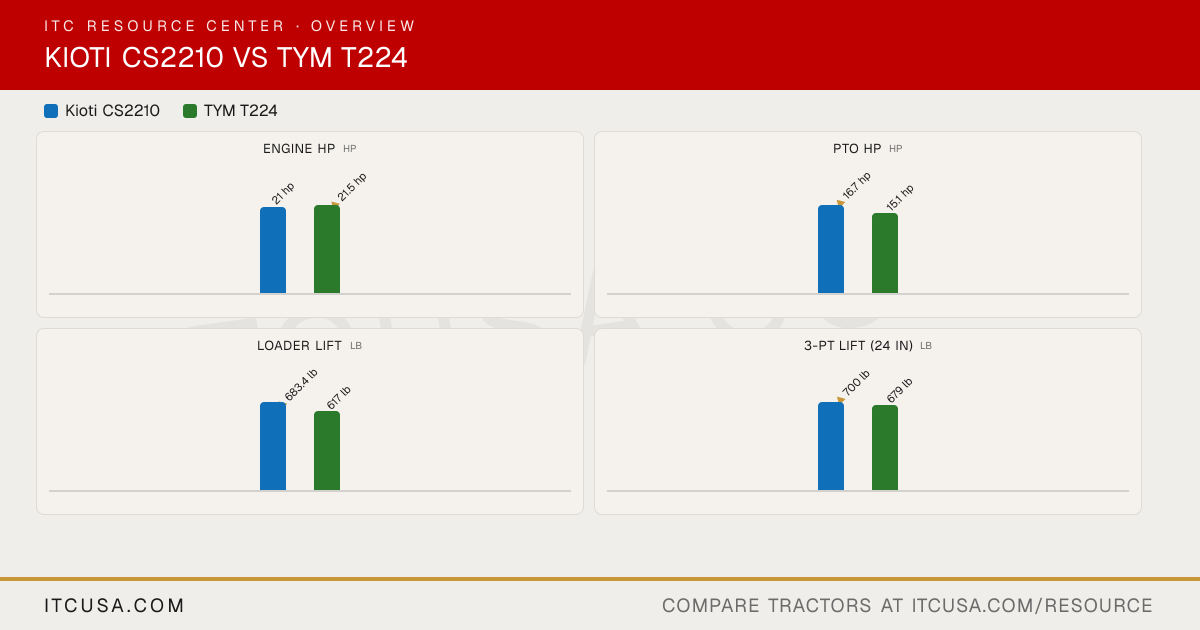

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KiotiCS2210
TYMT224
PTO Power
16.7 hp
15.1 hp
Alternator
Not Published
40 A, 12 V
Air Cleaner
Not Published
Single dry
Engine Type
Liquid-cooled, diesel
3-cylinder, naturally aspirated diesel
Fuel System
Not Published
IDI
Displacement
69 in³
60.6 in³
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
3200 rpm
Cooling System Type
Liquid-cooled
Water-cooled
Engine Manufacturer
Shibaura (S204.2 gal-F21)
Yanmar
Engine Power (Gross)
21 hp
21.5 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Not Published
Single gear pump
Steering Flow
Not Published
2.1 gpm
Implement Flow
Not Published
4.6 gpm
Total Hydraulic Flow
6.5 gpm
6.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.5 gpm
6.7 gpm
No. of Optional Remote Valves
Not Published
1
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control
Position control
Hitch Lift Capacity
700 lbs (at 24 in)
1,100 lb
Mid-PTO Availability
Available (2,200 rpm)
Available
Category, 3-Point Hitch
Category 1
Category I (Narrow)
Hitch Lift Capacity (at 24”)
700 lbs
679 lb
R3 Turf - Rear
26X12.00-12
Turf Master 24x12.00-12 NHS TL 4PR
R3 Turf - Front
18X8.5-8
Turf Master 16x7.50-8 NHS TL 4PR
Tire Size & Options
TractorData lists industrial tire sizes (see R4 rows); other tire options not specified.
