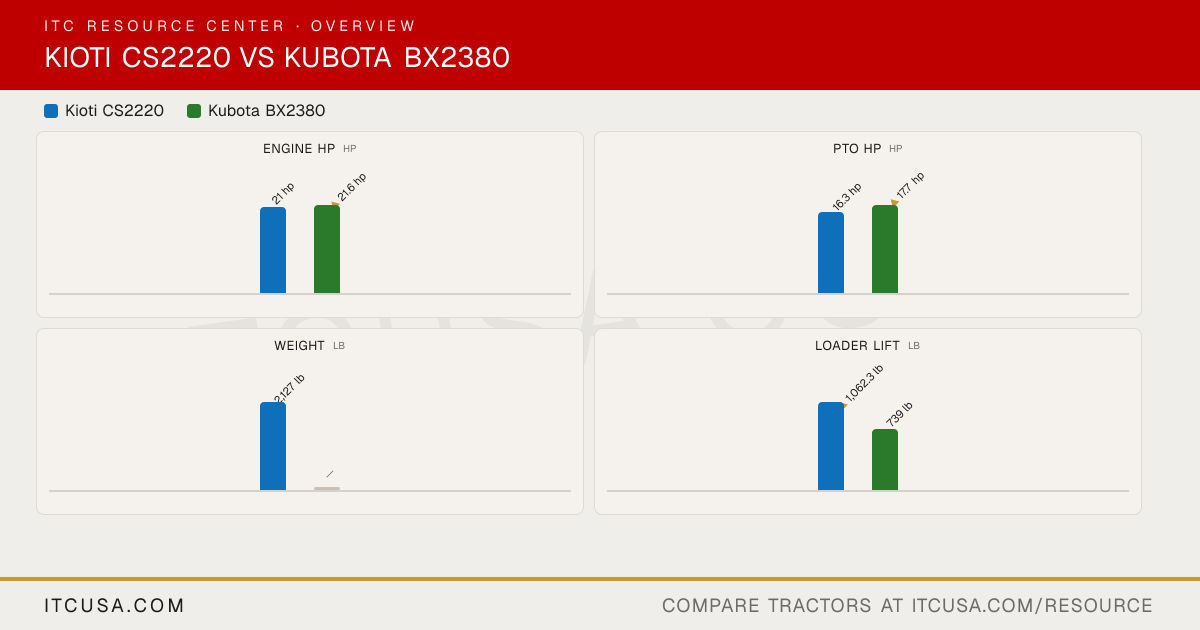

▶ EngineEngine Manufacturer KIOTI Kubota Engine Model 3C100LWH-U3 D902 Engine Type In-Line Vertical, Water-Cooled Diesel (3-cylinder) Liquid-cooled, 4-cycle diesel No. of Cylinders 3 3 Displacement 61.5 in³ 54.8 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21 hp 21.6 hp PTO Power 16.3 hp 17.7 hp Engine Emissions Constraints U.S. EPA non-road emission regulation Tier 4 Cooling System Type Water-cooled Water with pressurized radiator, reverse air-flow design Air Cleaner Not Published Dry element Fuel System Not Published Direct injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Gear Open center tandem pump gear type Implement Flow 7.0 gpm 5.2 gpm Steering Flow Not Published 1.0 gpm Total Hydraulic Flow 7.0 gpm 6.2 gpm Overall Hydraulic Pump Flow 7.0 gpm 6.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None (2-valve rear remote coupler optional) No. of Optional Remote Valves Not Published 2 (optional; ISO 7241-1 series A or B) ▶ Fluid CapacityFuel Tank Capacity 6.7 gal 6.6 gal Coolant Capacity 0.87 gal 3.3 qt Crankcase Capacity 1.0 gal 3.5 qt Transmission / Hydraulic System Capacity 2.75 gal 3.0 gal Front Axle Fluid Capacity 0.53 gal 3.8 qt ▶ PTO & HitchPTO Type Independent Live independent PTO (with hydraulic clutch) PTO Rear 540 rpm STD (540 rpm) Mid-PTO Availability Available (2,200 rpm) STD (2500 rpm) Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity 1,580 lb 1,213 lb Hitch Lift Capacity (at 24”) 700 lb 680 lb Lift Control Type Position Quarter-inching valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Hydrostatic transmission No. of Speeds Infinite, 2 range (High/Low) 2 Range (Low-High) Max Travel Speed (Forward) 9.6 mph 8.4 mph Max Travel Speed (Reverse) 6.6 mph 6.5 mph Clutch None (hydrostatic transmission) None (HST) Differential Lock & Limited Slip Options Rear differential lock (standard) Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS Steering Hydrostatic power steering Hydrostatic type power steering Brakes Wet multi disc Mechanical, wet disc type Seat Suspension & Adjustability Not Published High-back seat with armrests; fore/aft slide and backrest-tilt adjustment Front Axle Type Mechanical 4WD 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Max. drawbar load @ hitch: 550 lb ▶ Dimensions & ManeuverabilityOverall Width 45.9 in 45.1 in Wheelbase 55.1 in 55.1 in Ground Clearance 6.4 in 6.5 in Min. Turn Radius without Brakes 8.2 ft (with brake applied) 7.5 ft Height to Top of ROPS 87.6 in 83.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 99.3 in (with 3-point hitch) 95.5 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,554 lb (with AG. tires) 1,454 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf and Industrial: 18x8.5-10 front, 26x12.00-12 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 18x8.5-10 18X8.5-10 R1 Agricultural - Rear 26x12.00-12 26X12-12 R3 Turf - Front 18x8.5-10 18X8.5-10 R3 Turf - Rear 26x12.00-12 26X12-12 R4 Industrial - Front 18x8.5-10 18X8.5-10 R4 Industrial - Rear 26x12.00-12 26X12-12 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 48 in Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket) Loader Model SL2420 LA344S (standard, quick attach); LA344 (pin-on option) Loader Lift Height SL2420: 73.7 in (at pivot pin) 71.0 in (at pivot pin) Loader Lift Capacity (Full Height) SL2420: 1,062 lb 739 lb (LA344 pin-on); 613 lb (LA344S quick attach) Loader Breakout Force SL2420: 1,329 lb (at pivot pin) 1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 24 months, powertrain 72 months on qualifying tractors, unlimited hours, parts and labor Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit
