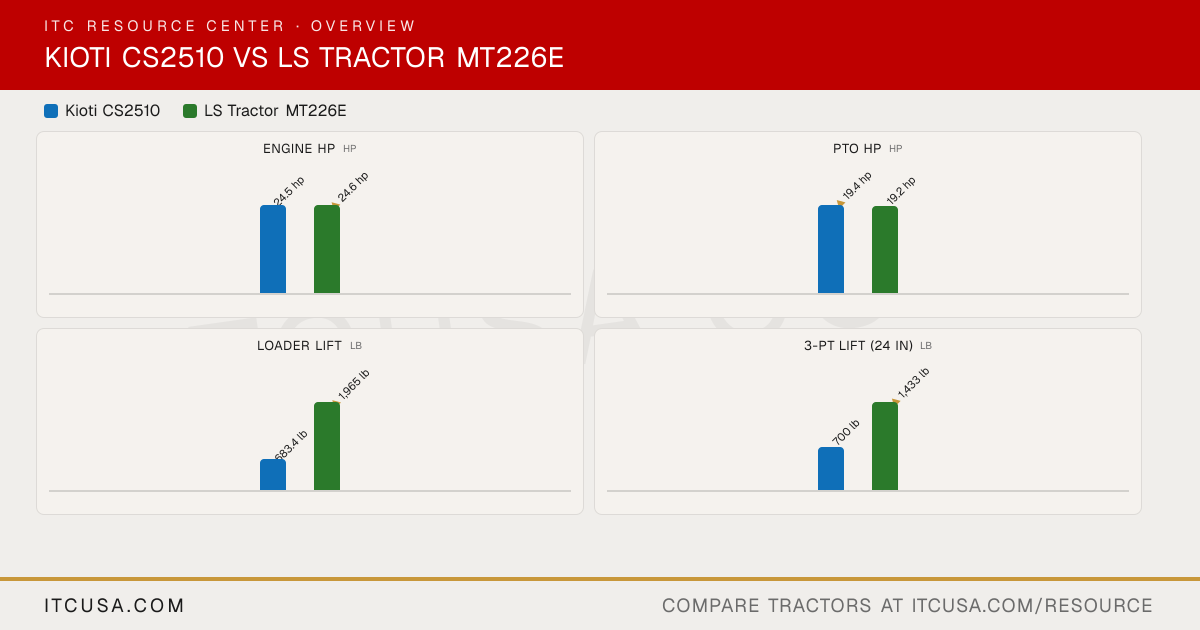

▶ EnginePTO Power 19.4 hp 19.2 hp Alternator 40 A, 12 V 50 A, 12 V Air Cleaner Dry type (cyclone type) Dry Engine Type Liquid-cooled, diesel 3-cylinder, Liquid-cooled, Diesel, NA, IDI Fuel System Injection pump type: Bosch; nozzle type: Throttle IDI Displacement 69 in³ 80.4 in³ No. of Cylinders 3 3 Rated Engine Speed 3000 rpm 2500 rpm Cooling System Type Liquid-cooled Liquid-cooled Engine Manufacturer Shibaura (S204.2 gal-F21) MHI Engine Power (Gross) 24.5 hp 24.6 hp Engine Emissions Constraints Not Published Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Published ▶ HydraulicsPump Type Not Published Gear pump Steering Flow Not Published 4.6 gpm Implement Flow Not Published 7.9 gpm Total Hydraulic Flow 6.5 gpm 12.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 6.5 gpm 12.5 gpm No. of Optional Remote Valves Not Published 1 No. of Standard Remote Valves Not Published 0 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position control Position control Hitch Lift Capacity 700 lbs (at 24 in) 1808 lb Mid-PTO Availability Available (2,200 rpm) Available (option) Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity (at 24”) 700 lbs 1433 lb ▶ Tire OptionsR3 Turf - Rear 26X12.00-12 41X14.00-20 R3 Turf - Front 18X8.5-8 25X8.50-14 Tire Size & Options TractorData lists industrial tire sizes (see R4 rows); other tire options not specified. R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear 26X12.00-12 43X16.00-20 R4 Industrial - Front 18X8.50-10 27X8.50-15 R1 Agricultural - Rear Not Applicable 11.2-24 R1 Agricultural - Front Not Applicable 7-14 ▶ Fluid CapacityCoolant Capacity 3.7 qt Not Published Crankcase Capacity 3.2 qt Not Published Fuel Tank Capacity 6.7 gal 10.6 gal Front Axle Fluid Capacity 0.5 gal Not Published Transmission / Hydraulic System Capacity 3.4 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 70.9 in 94.3 in Loader Breakout Force 1,435.2 lb 2,962 lb Quick Attach Loader System Quick-attach (QA) bucket LL3001, LL3002: ISO 24410 Quick Attaching Coupler Loader Lift Capacity (Full Height) 683.4 lb 1,965 lb ▶ Transmission & DrivetrainClutch None Dry Single No. of Speeds Infinite, 2 range (High/Low) F12 x R12 Transmission Type HST (hydrostatic) Synchro Shuttle Max Travel Speed (Forward) 10.3 mph Not Published Max Travel Speed (Reverse) 7 mph Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Wet disk type Wet, Multi-disc Steering Power steering Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 55.12 in 66 in Overall Width 46.65 in 66 in Ground Clearance 6.38 in Not Published Height to Top of ROPS 87.63 in 95 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 8.33 ft (2.54 m) (with one rear wheel braked) 11.5 ft (3.5 m) Overall Length with 3-Point Hitch 99.33 in 119 in ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
