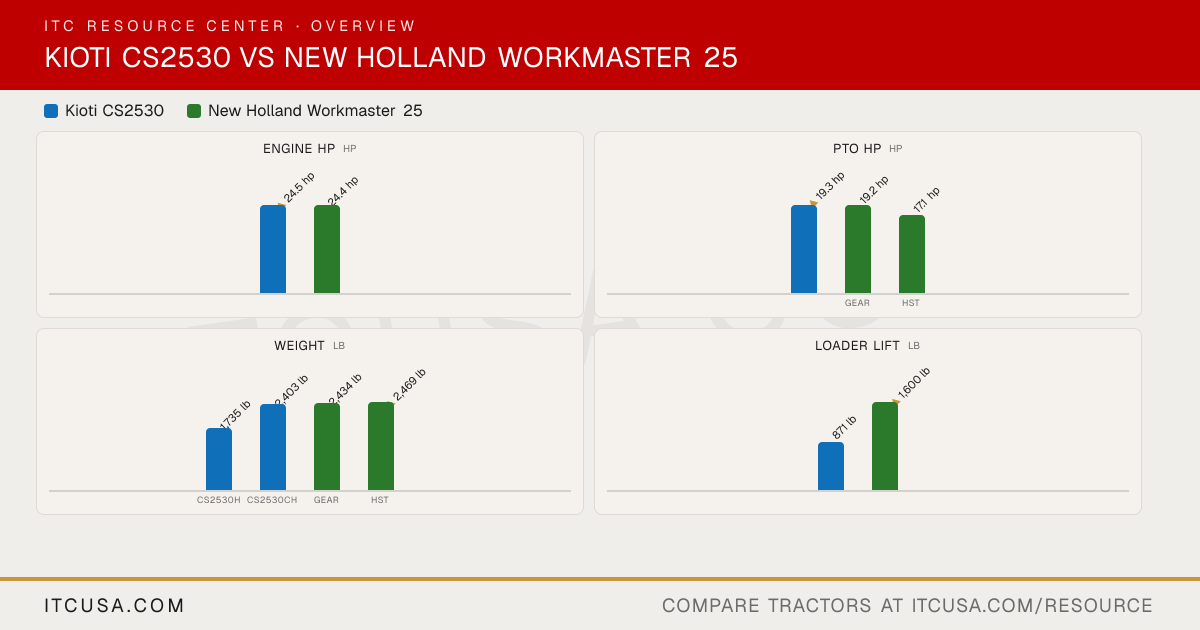

▶ EngineEngine Manufacturer KIOTI Mitsubishi Engine Model CS2530H: 3L123-TH4C; CS2530CH: 3L123-TH4A S3L2-W461GT Engine Type 3-cylinder, water-cooled diesel 3-cylinder, naturally aspirated, liquid-cooled diesel No. of Cylinders 3 3 Displacement 75.2 in³ 80.4 in³ Rated Engine Speed 3000 rpm 2500 rpm Engine Power (Gross) 24.5 hp 24.4 hp PTO Power 19.3 hp Gear: 19.2 hp; HST: 17.1 hp Engine Emissions Constraints Not Published Tier 4B (final) Cooling System Type Water-cooled Pressurized liquid with recirculating bypass Air Cleaner Not Published Dual element air cleaner (outer and inner element) Fuel System Indirect injection In-line injection pump Alternator Not Published 50 A, 12 V ▶ HydraulicsPump Type Not Published Mechanical Implement Flow 4.9 gpm 7.9 gpm Steering Flow 2.03 gpm 4.6 gpm Total Hydraulic Flow 6.97 gpm 12.5 gpm Overall Hydraulic Pump Flow 6.97 gpm 12.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 7.4 gal Coolant Capacity 0.53 gal 1.3 gal Crankcase Capacity 0.98 gal 4.4 qt Transmission / Hydraulic System Capacity 2.75 gal 8.5 gal Front Axle Fluid Capacity 0.53 gal 6.9 qt ▶ PTO & HitchPTO Type Independent Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Available (2,200 rpm) HST: Standard; Gear: Optional (2,000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,580 lb 1,808 lb Hitch Lift Capacity (at 24”) 700 lb 1,433 lb Lift Control Type Position Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Gear: 12x12 synchronized shuttle; HST: 3-range hydrostatic, dual pedal No. of Speeds Infinite, 2 range (High/Low) Gear: 12F/12R; HST: 3-range Max Travel Speed (Forward) 8.99 mph HST: 15.3 mph; Gear: 13.8 mph Max Travel Speed (Reverse) 6.15 mph Gear: 13.10 mph; HST: 10.79 mph Clutch None (hydrostatic transmission) Gear: 9.4 in disc; HST: Not applicable Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical 4WD 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width CS2530H: 48.8 in; CS2530CH: 50.0 in 54.1 in Wheelbase 55.1 in 65.9 in Ground Clearance 6.4 in 13 in Min. Turn Radius without Brakes 100.0 in (with brake applied) 120 in (left turn); 129.8 in (right turn) Height to Top of ROPS 87.6 in 88.2 in Height to Top of ROPS (folded) Not Published 68.2 in Height to Top of Cab Model 82.6 in Not Published Overall Length CS2530H: 102.9 in; CS2530HC: 107.1 in (without front weight, with 3-point hitch) 117.2 in ▶ WeightTractor Weight (Base) CS2530H: 1,735 lb; CS2530CH: 2,403 lb Gear: 2,434 lb; HST: 2,469 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R4 Industrial: 18x8.5-10 front, 26x12.00-12 rear; R3 Turf: 18x8.5-10 front, 26x12.00-12 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 18x8.5-10 7-14 R1 Agricultural - Rear Not Published 11.2-24 R3 Turf - Front 18x8.5-10 25x8.50-14 R3 Turf - Rear 26x12.00-12 41x14.00-20 R4 Industrial - Front 18x8.5-10 25x8.50-14 R4 Industrial - Rear 26x12.00-12 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach bucket, 48 in 200LC: tool-free quick-mount system; optional skid-steer quick-attach plates Loader Model SL2530 200LC Loader Lift Height SL2530: 70.9 in (at pivot pin) 200LC: 94.3 in (at pivot pin) Loader Lift Capacity (Full Height) SL2530: 871 lb 200LC: 1,600 lb (at bucket pivot pin, max height) Loader Breakout Force SL2530: 1,299 lb (at pivot pin) 200LC: 2,637 lb (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 6 years, unlimited hours Basic 2 years or 750 hours; powertrain to 6 years or 1,500 hours total
