Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KiotiCX2510

n/a

LSMT122

Comparison loaded for 2 tractors.

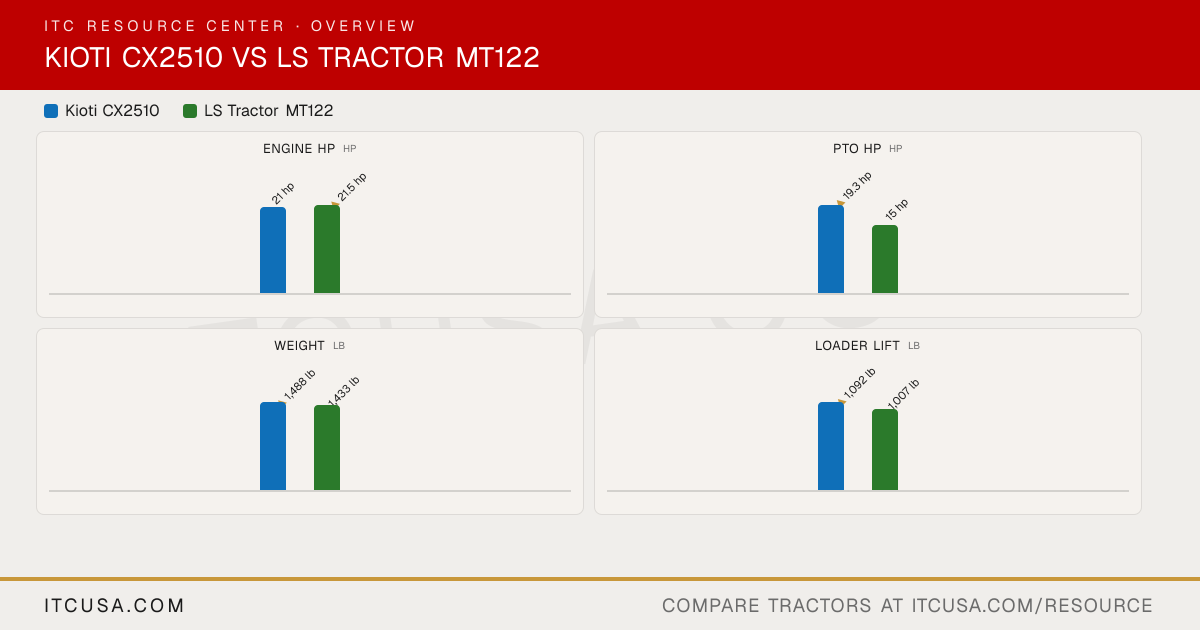

The headline numbers at a glance.

Kioti CX2510LS Tractor MT122

Engine HPhp

21 hp

▲21.5 hp

PTO HPhp

▲19.3 hp

15 hp

Weightlb

▲1,488 lb

1,433 lb

Loader Liftlb

▲1,092 lb

1,007 lb

3-Pt Lift (24 in)lb

700 lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCX2510	LS TractorMT122


PTO Power	19.3 hp	15 hp
Engine Type	S204.2 gal-F	3-cylinder, Indirect-injection, Water-cooled
Fuel System	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)	Mechanical, in-line type
Displacement	69 in³	68 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Liquid cooled	Water-cooled
Engine Manufacturer	Daedong Industrial Co., LTD	Yanmar
Engine Power (Gross)	21 hp	21.5 hp
Alternator	n/a	40 A, 12 V
Air Cleaner	n/a	Replaceable paper elements
Engine Emissions Constraints	n/a	Tier 4

Tractor Weight (Base)	1,488 lbs with ROPS	1,433 lbs
Weight with Cab and Loader	2,804 lb	Not Applicable
Weight with ROPS and Loader	2,308 lb	Not Published

Warranty Length & Coverage	6 year powertrain warranty	6 Year Limited Warranty

Pump Type	Variable displacement pump	Gear
Steering Flow	4.4 qts 1.1 gal	2.1 gpm
Implement Flow	6.86 gpm	4.6 gpm
Total Hydraulic Flow	11.3 gpm	6.7 gpm
Hydraulic System Type	open center	Open center system, Position control
System Operating Pressure	Not specified in document	1,885.5 psi
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	11.3 gpm	6.7 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)	0

PTO Rear	540 rpm	Standard (540 rpm)
PTO Type	Transmission (CX2510); Live (CX2510 HST/CAB)	Independent
Lift Control Type	Position	Position
Hitch Lift Capacity	1,203 lb.	970 lbs. (At 24 in: 728)
Mid-PTO Availability	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	CAT I
Hitch Lift Capacity (at 24”)	700 lbs	728 lb

R3 Turf - Rear	33×12.5-16.5	26 x 12.0 - 12
R3 Turf - Front	23×8.5-12	18 x 8.5 - 10
Tire Size & Options	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)	Front: 18x8.5-10 Industrial; Rear: 26x12.0-12 Industrial
R4 Industrial - Rear	12-16.5	26 x 12.0 - 12
R4 Industrial - Front	23×8.5-12	18 x 8.5 - 10
R1 Agricultural - Rear	11.2-16	Not Published
R1 Agricultural - Front	7.0-12	Not Published

Coolant Capacity	1.0 U.S. gal	0.9 gal (0.9U.S.gals)
Crankcase Capacity	0.8 U.S. gal	0.8 gal (0.8U.S.gals)
Fuel Tank Capacity	6.60 gal	6.6 gal.
Transmission / Hydraulic System Capacity	3.4 U.S. gal	3 gal (3.0U.S.gals)
Front Axle Fluid Capacity	n/a	0.5 gal (0.5U.S.gals)

Loader Lift Height	87.8 in.	72.0 in.
Loader Breakout Force	1,843 lbs.	1,960 lbs.
Quick Attach Loader System	Quick attach bucket, 50 in.	LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System
Loader Lift Capacity (Full Height)	1,092 lbs.	1,007 lbs.

Clutch	Dry single	Not Applicable
No. of Speeds	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]	2 Ranges
Transmission Type	Manual [CX2510] / Hydrostatic [CX2510 HST]	Hydrostatic Drive
Max Travel Speed (Forward)	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]	0 ~ 14.0 Km/h (0 ~ 8.70 mph)
Max Travel Speed (Reverse)	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]	0 ~ 8.4 Km/h (0 ~ 5.22 mph)
Differential Lock & Limited Slip Options	Rear Standard	Mechanical pedal type

Brakes	Wet Disc Type	Wet, Multi-disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Front Axle Type	Four-wheel drive	Front Wheel Mechanical Assist (4WD)
Seat Suspension & Adjustability	Adjustable suspension seat with dual armrests and seat belt	High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable
Frame Type	n/a	Not Published
Drawbar Capacity	n/a	Vertical load: 881.8 lb (882lbs), Horizontal load: 1.6 tonnes (3527lbs)
Front Axle Rating	n/a	1433 lb

Wheelbase	59.8 in.	56 in.
Overall Width	49.4 in.	47 in.
Overall Length	110.25 in with weights; 99.33 in without weights	97 in.
Ground Clearance	13.4 in.	Not provided in source
Height to Top of ROPS	82.8 in.	87 in.
Height to Top of Cab Model	86.6 in.	Not Applicable
Height to Top of ROPS (folded)	82.8 in.	Not Published
Min. Turn Radius without Brakes	9 ft (2.75 m)	7.87 ft
Overall Length with 3-Point Hitch	109.1 in. [CX2510/HST]; 111 in. [CAB]	97 in.

Accessories that fit	Kioti CX2510 / CK2510 Brush Screen Insert $249.99	None tagged yet
