Kioti CX2510 vs TYM T224 | Side-by-side comparison | ITC Resource Center
Compare Tractors

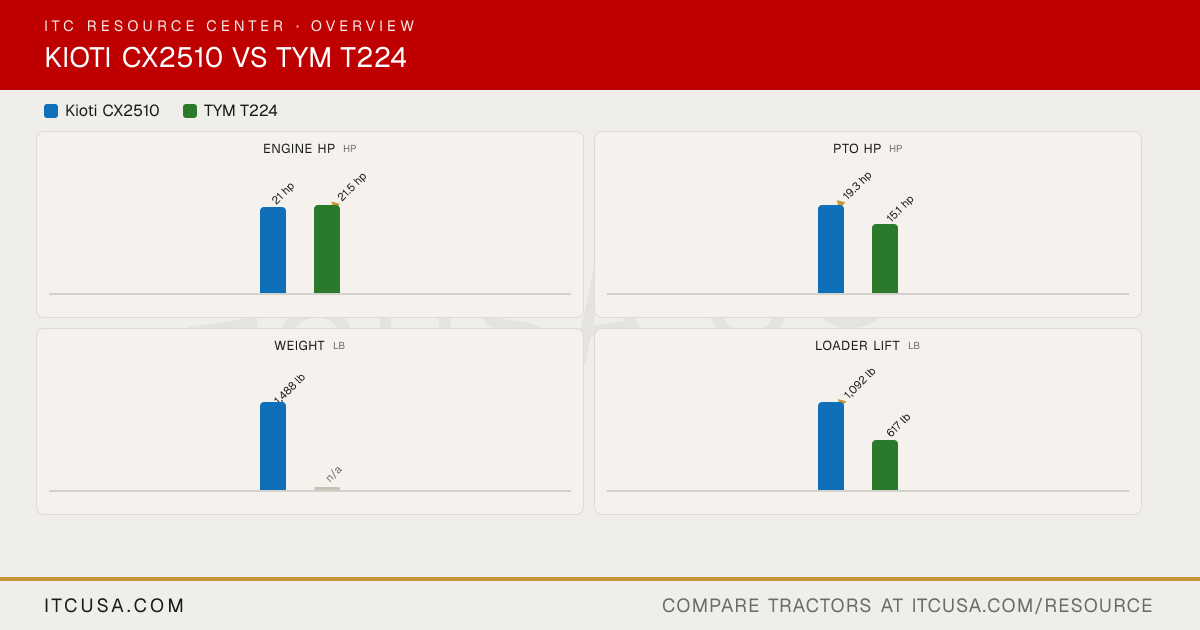

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Variable displacement pump
Single gear pump
Steering Flow
4.4 qts 1.1 gal
2.1 gpm
Implement Flow
6.86 gpm
4.6 gpm
Total Hydraulic Flow
11.3 gpm
6.7 gpm
Hydraulic System Type
open center
Open center
System Operating Pressure
Not specified in document
n/a
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
11.3 gpm
6.7 gpm
No. of Optional Remote Valves
1
1
No. of Standard Remote Valves
1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Transmission (CX2510); Live (CX2510 HST/CAB)
Independent
Lift Control Type
Position
Position control
Hitch Lift Capacity
1,203 lb.
1,100 lb
Mid-PTO Availability
2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)
