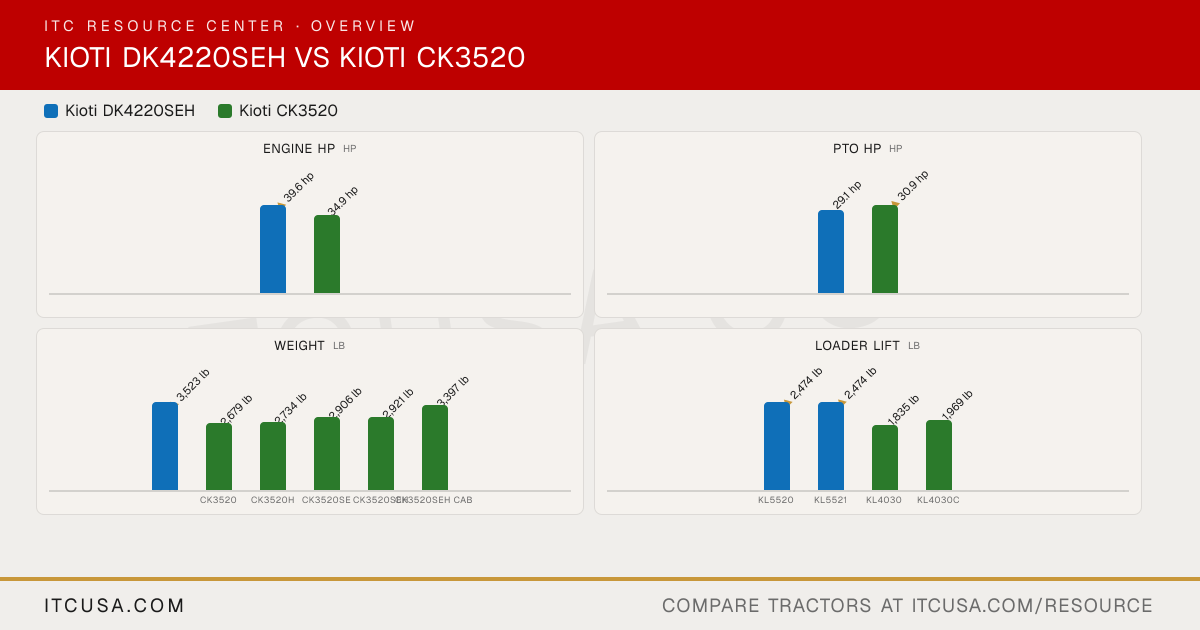

▶ EngineEngine Manufacturer KIOTI (Daedong) KIOTI Engine Model 3H-TH4D CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 Engine Type 3-cylinder, liquid-cooled diesel 3-cylinder, in-line, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 39.6 hp 34.9 hp PTO Power 29.1 hp CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry element Dry element Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow 9.62 gpm CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm Steering Flow 6.87 gpm CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm Total Hydraulic Flow 16.5 gpm CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm Overall Hydraulic Pump Flow 16.5 gpm CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2 No. of Optional Remote Valves Not Published CK3520, CK3520H: 2 ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 9.0 gal Coolant Capacity 2.1 gal 0.89 gal Crankcase Capacity 1.95 gal 1.6 gal Transmission / Hydraulic System Capacity 11.4 gal 5.8 gal Front Axle Fluid Capacity 1.48 gal 1.6 gal ▶ PTO & HitchPTO Type Independent CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent PTO Rear 540 rpm 540 rpm (1-3/8 in, 6 splines) Mid-PTO Availability Optional (2,000 rpm) Optional, 2,000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,998 lb 2,270 lb Hitch Lift Capacity (at 24”) 2,716 lb 1,631 lb Lift Control Type Position Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle No. of Speeds 3 ranges (hydrostatic, infinite speeds) CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R Max Travel Speed (Forward) 18.45 mph CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph Max Travel Speed (Reverse) 12.92 mph CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph Clutch None (hydrostatic transmission) CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic) Differential Lock & Limited Slip Options Rear differential lock (standard) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Deluxe suspension seat Not Published Front Axle Type Mechanical 4WD 4WD, manual engagement Front Axle Rating Not Published Not Published Drawbar Capacity 1,655 lb (max. drawbar vertical load) 1,433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 125.5 in 120.9 in Overall Width 62.8 in 54.5 in Wheelbase 71.3 in 65.7 in Ground Clearance 14.5 in 13.4 in Min. Turn Radius without Brakes 102.8 in (with brake applied) 107.5 in Height to Top of ROPS 96.8 in 92.9 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 93.0 in 92.5 in ▶ WeightTractor Weight (Base) 3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB) CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial, R14 Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) R1 Agricultural - Front 8-16 7-16 R1 Agricultural - Rear 13.6-24 11.2-24 R3 Turf - Front 29-12.5-15 28x8.5-15/6 R3 Turf - Rear 21.5L-16.1 41x14-20/4 R4 Industrial - Front 10-16.5 27x8.5-15 R4 Industrial - Rear 14.9-24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 66 in or 72 in Not Published Loader Model KL5520; KL5521 (Cab models) KL4030; KL4030C Loader Lift Height KL5520: 107.7 in; KL5521: 107.7 in 98.4 in (KL4030 and KL4030C loaders) Loader Lift Capacity (Full Height) KL5520: 2,474 lb; KL5521: 2,474 lb KL4030: 1,835 lb; KL4030C: 1,969 lb Loader Breakout Force KL5520: 3,895 lb; KL5521: 3,895 lb KL4030: 3,464 lb; KL4030C: 2,989 lb ▶ WarrantyWarranty Length & Coverage Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours 24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor ▶ ITC Company AccessoriesAccessories that fit
