Kioti DK4220SEH vs Kubota LX4020 | Side-by-side comparison | ITC Resource Center
Compare Tractors

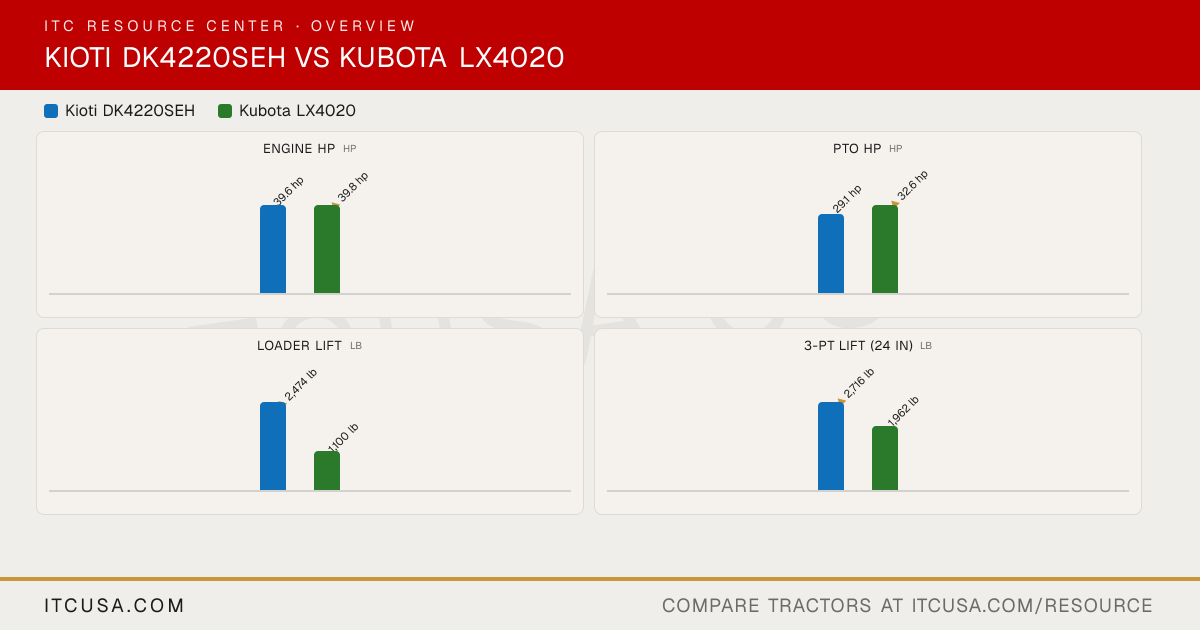

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KiotiDK4220SEH
KubotaLX4020
PTO Power
29.1 hp
32.6 hp
Alternator
Not Published
Not Published
Air Cleaner
Dry element
6 inch paper filter (with dual element)
Engine Type
3-Cyl Diesel (Naturally Aspirated)
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Fuel System
Not Published
Not Published
Displacement
111.4 in³
91.4 in³
No. of Cylinders
3
4
Rated Engine Speed
2600 rpm
2700 rpm
Cooling System Type
Liquid-cooled
Pressurized radiator
Engine Manufacturer
KIOTI (Daedong)
Kubota
Engine Power (Gross)
39.6 hp
39.8 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Gear
Dual pump
Steering Flow
6.87 gpm
Not Published
Implement Flow
9.62 gpm
Not Published
Total Hydraulic Flow
16.49 gpm
9.5 gpm
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
16.49 gpm
9.5 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
2
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position
Position control valve
Hitch Lift Capacity
2,998 lbs @ lower link ball
2535 lb
Mid-PTO Availability
Optional (2,000 rpm)
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
2,716 lbs @ 24 in behind
1962 lb
R3 Turf - Rear
5.7 gal-16.1
Option 1: 13.6-16; Option 2: 16.6-16
R3 Turf - Front
29X12.5-15
24X8.50-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf
R4 Industrial - Rear
14.9-24
Not Applicable
R4 Industrial - Front
10-16.5
Not Applicable
R1 Agricultural - Rear
13.6-24
320/85D16
R1 Agricultural - Front
8.0-16
180/85D12
Coolant Capacity
2.1 gal
Not Published
Crankcase Capacity
1.95 gal
5.0 qt
Fuel Tank Capacity
12.7 gal
8.5 gal
Front Axle Fluid Capacity
1.48 gal
Not Published
Transmission / Hydraulic System Capacity
11.4 gal
5.5 gal
Loader Lift Height
107.7 in
87.6 in
Loader Breakout Force
3,895.0 lb
Not Published
Quick Attach Loader System
Quick attach (QA) bucket
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
