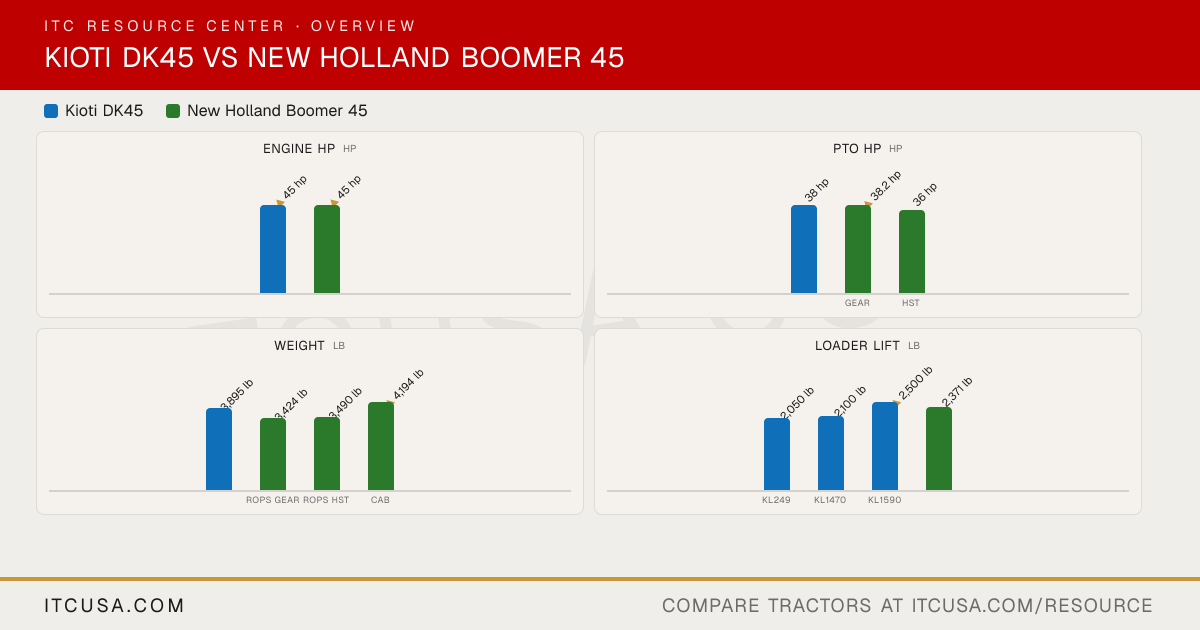

▶ EngineEngine Manufacturer KIOTI (Daedong) LS Mtron Engine Model 4A220 L3CRV-T9A Engine Type Not Published 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 4 3 Displacement 134.1 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 45 hp 45 hp PTO Power 38 hp Gear: 38.2 hp; HST: 36 hp Engine Emissions Constraints Not Published Tier 4B (final) Cooling System Type Not Published Liquid cooled Air Cleaner Dual stage air filter cartridge Replaceable primary and inner elements Fuel System Not Published Electronically controlled common rail direct injection Alternator Not Published ROPS: 70 A, 12 V; Cab: 85 A, 12 V ▶ HydraulicsPump Type Not Published Gear Implement Flow 9.9 gpm 8.2 gpm Steering Flow 4.3 gpm Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow 14.2 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow 14.2 gpm Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 No. of Optional Remote Valves Not Published Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity 11.5 gal ROPS: 10.5 gal; Cab: 12.4 gal Coolant Capacity Not Published 2.3 gal Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 11.4 gal Front Axle Fluid Capacity Not Published 2.2 gal ▶ PTO & HitchPTO Type Hydraulic independent Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard (2000 rpm) Category, 3-Point Hitch Category I (Category II ends optional) Category I Hitch Lift Capacity 3,968 lb 2,756 lb Hitch Lift Capacity (at 24”) 2,987 lb 2,116 lb Lift Control Type Position, Draft and Mixed control Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds 12F/12R Gear: 16F/16R; HST: 3-range Max Travel Speed (Forward) 15.84 mph Gear: 17.0 mph; HST: 17.9 mph Max Travel Speed (Reverse) Not Published Gear: 15.3 mph; HST: 11.37 mph Clutch Dry single plate Gear: dry single disc (10.8 in); HST: n/a Differential Lock & Limited Slip Options Mechanical rear differential lock Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydraulic power steering Power steering Brakes Wet disc Wet multi-disc Seat Suspension & Adjustability Adjustable seat ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Front Axle Type 4WD (MFWD) Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb ▶ Dimensions & ManeuverabilityOverall Width 61.0 in 69.1 in Wheelbase 71.6 in 73.2 in Ground Clearance 14.5 in 15 in Min. Turn Radius without Brakes 123.2 in 111.8 in (right turn); 123.2 in (left turn) (with brake applied) Height to Top of ROPS 87.5 in 97.1 in Height to Top of ROPS (folded) 64.5 in Not Published Height to Top of Cab Model 91 in 94 in Overall Length 130.7 in (with 3-point hitch) 128.1 in ▶ WeightTractor Weight (Base) 3,895 lb (ag tires, ROPS) ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 9.5-16 9.5-16 R1 Agricultural - Rear 14.9-24 13.6-24 R3 Turf - Front 29x12.5-15 28x8.50-15 R3 Turf - Rear 21.5L-16.1 41x14.00-20 R4 Industrial - Front 12x16.5 12x16.5 R4 Industrial - Rear 17.5L-24 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Tool-free loader mount; optional skid-steer quick-attach plates Loader Model KL249; KL1470; KL1590 260TLA Loader Lift Height KL249: 107.5 in; KL1470: 111.44 in; KL1590: 121.06 in 260TLA: 109 in (at pivot pin) Loader Lift Capacity (Full Height) KL249: 2,050 lb; KL1470: 2,100 lb; KL1590: 2,500 lb 260TLA: 2,371 lb (at bucket pivot pin, max height) Loader Breakout Force KL249: 3,695 lb; KL1470: 3,400 lb; KL1590: 4,000 lb 260TLA: 4,081 lb (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total) ▶ ITC Company AccessoriesAccessories that fit None tagged yet
