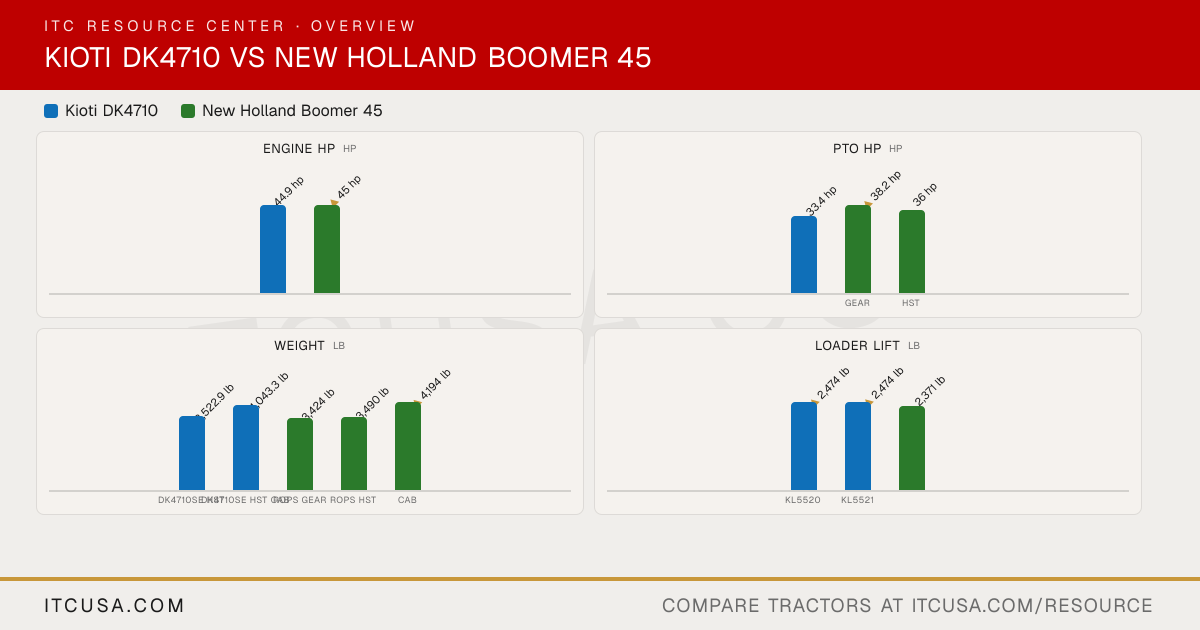

▶ EngineEngine Manufacturer Not Published LS Mtron Engine Model 3H-TH4C L3CRV-T9A Engine Type 3-cylinder, common-rail, liquid-cooled diesel 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 44.9 hp 45 hp PTO Power 33.4 hp Gear: 38.2 hp; HST: 36 hp Engine Emissions Constraints Tier 4 Tier 4B (final) Cooling System Type Water-cooled Liquid cooled Air Cleaner Not Published Replaceable primary and inner elements Fuel System Common rail direct injection (CRDI) Electronically controlled common rail direct injection Alternator Not Published ROPS: 70 A, 12 V; Cab: 85 A, 12 V ▶ HydraulicsPump Type Gear Gear Implement Flow Not Published 8.2 gpm Steering Flow Not Published Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow 16.49 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow 16.49 gpm Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 (2 port) 1 No. of Optional Remote Valves 1 Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity 12.7 gal ROPS: 10.5 gal; Cab: 12.4 gal Coolant Capacity Not Published 2.3 gal Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 11.4 gal Front Axle Fluid Capacity Not Published 2.2 gal ▶ PTO & HitchPTO Type Independent Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) Standard (2000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 2,756 lb Hitch Lift Capacity (at 24”) 2,716 lb 2,116 lb Lift Control Type Position Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds 3 range (hydrostatic, infinite speeds) Gear: 16F/16R; HST: 3-range Max Travel Speed (Forward) 18.5 mph Gear: 17.0 mph; HST: 17.9 mph Max Travel Speed (Reverse) 12.9 mph Gear: 15.3 mph; HST: 11.37 mph Clutch Not Published Gear: dry single disc (10.8 in); HST: n/a Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc Wet multi-disc Seat Suspension & Adjustability Deluxe adjustable suspension seat ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests Front Axle Type Mechanical 4WD Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb ▶ Dimensions & ManeuverabilityOverall Width 62.8 in 69.1 in Wheelbase 71.3 in 73.2 in Ground Clearance 14.5 in 15 in Min. Turn Radius without Brakes 8.63 ft (with brake applied) 111.8 in (right turn); 123.2 in (left turn) (with brake applied) Height to Top of ROPS 96.8 in 97.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 93 in 94 in Overall Length 125.5 in (with 3-point hitch) 128.1 in ▶ WeightTractor Weight (Base) DK4710SE HST: 3,523 lb; DK4710SE HST Cab: 4,043 lb ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural: 8-16 front, 13.6-24 rear; R3 Turf: 29-12.5-15 front, 21.5L-16.1 rear; R4 Industrial: 10-16.5 front, 14.9-24 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 8-16 9.5-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front 29-12.5-15 28x8.50-15 R3 Turf - Rear 21.5L-16.1 41x14.00-20 R4 Industrial - Front 10-16.5 12x16.5 R4 Industrial - Rear 14.9-24 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 66 in or 72 in Tool-free loader mount; optional skid-steer quick-attach plates Loader Model KL5520 (ROPS); KL5521 (Cab) 260TLA Loader Lift Height KL5520: 105.7 in; KL5521: 105.7 in 260TLA: 109 in (at pivot pin) Loader Lift Capacity (Full Height) KL5520: 2,474 lb; KL5521: 2,474 lb 260TLA: 2,371 lb (at bucket pivot pin, max height) Loader Breakout Force KL5520: 3,895 lb; KL5521: 3,895 lb 260TLA: 4,081 lb (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)
