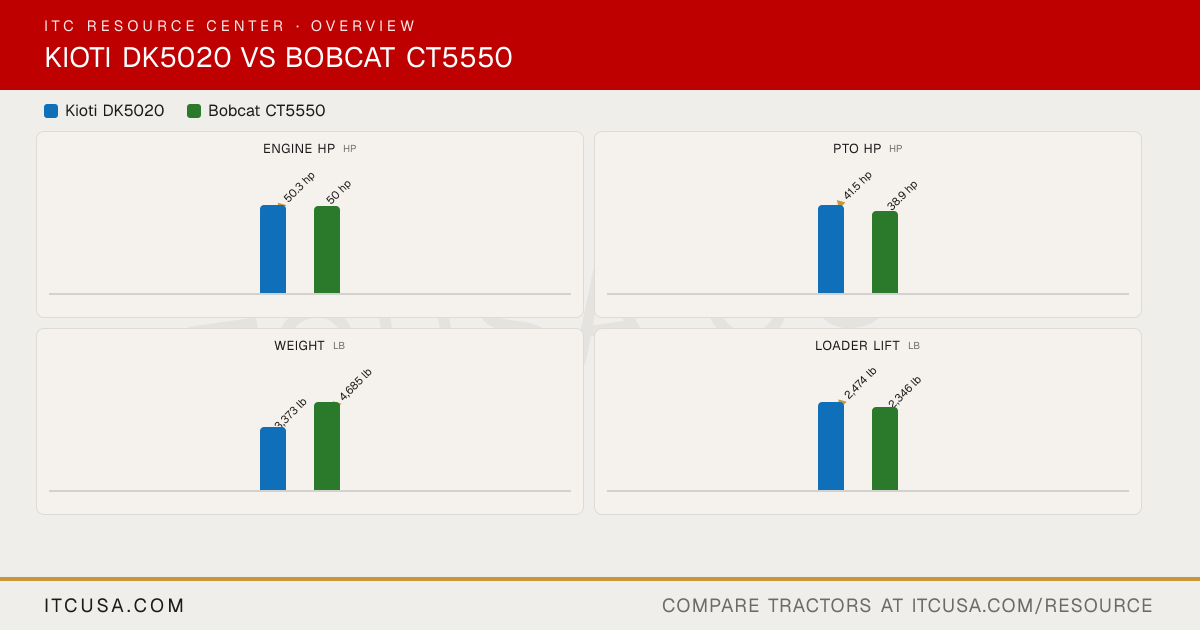

▶ EngineEngine Manufacturer KIOTI Daedong Engine Model 3HT-TM4B 3FT-TH4-U Engine Type 3-cylinder, liquid-cooled diesel Turbocharged diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2750 rpm Engine Power (Gross) 50.3 hp 50 hp PTO Power 41.5 hp 38.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Not Published Implement Flow 9.62 gpm 9.6 gpm Steering Flow 4.94 gpm 8.2 gpm Total Hydraulic Flow 14.56 gpm 17.8 gpm Overall Hydraulic Pump Flow 14.56 gpm 17.8 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None (2 optional) 1 pair No. of Optional Remote Valves 2 2 pairs (2nd and 3rd pairs optional) ▶ Fluid CapacityFuel Tank Capacity 11.9 gal 14.8 gal Coolant Capacity 0.89 gal Not Published Crankcase Capacity 1.95 gal Not Published Transmission / Hydraulic System Capacity 11.4 gal Not Published Front Axle Fluid Capacity 1.48 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) Optional: 2103 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,998 lb (at lower link ball) Not Published Hitch Lift Capacity (at 24”) 2,716 lb 3,177 lb Lift Control Type Position Position with draft control ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle 3-Range E-HST (electronic hydrostatic) No. of Speeds 8F/8R Infinite forward and reverse Max Travel Speed (Forward) 16.71 mph 17.5 mph Max Travel Speed (Reverse) 16.28 mph 17.5 mph Clutch Dry single stage Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Deluxe suspension seat Adjustable seat (standard) Front Axle Type Mechanical 4WD Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity 1,655 lb (max. drawbar vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Width 62.8 in 74.2 in (with industrial tires) Wheelbase 71.3 in 75.6 in Ground Clearance 14.5 in 13.0 in (with industrial tires) Min. Turn Radius without Brakes 102.7 in (with brake applied) 117.6 in (with assisted braking) Height to Top of ROPS 96.8 in Not Applicable Height to Top of ROPS (folded) Not Published Not Applicable Height to Top of Cab Model Not Published 94.2 in Overall Length 124.3 in (with 3-point hitch) 139.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 3,373 lb 4,685 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Industrial, Turf, R14 Agricultural; Turf; Industrial R1 Agricultural - Front 8-16 8-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front 29-12.5-15 29-12.5-15 R3 Turf - Rear 21.5L-16.1 21.5L-16.1 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 14.9-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 66 in Front-end loader with standard quick attach mounting system Loader Model KL5520 FL9-5 Loader Lift Height KL5520: 107.7 in (to pivot point) 108.6 in (to pivot pin) Loader Lift Capacity (Full Height) KL5520: 2,474 lb (at pivot pins) 2,346 lb Loader Breakout Force KL5520: 3,895 lb (at pivot pins) 4,524 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 72 months, unlimited hours Basic 24 months or 1,500 hours; powertrain 48 months for consumer use, or 36 months or 2,000 hours for business use ▶ ITC Company AccessoriesAccessories that fit
