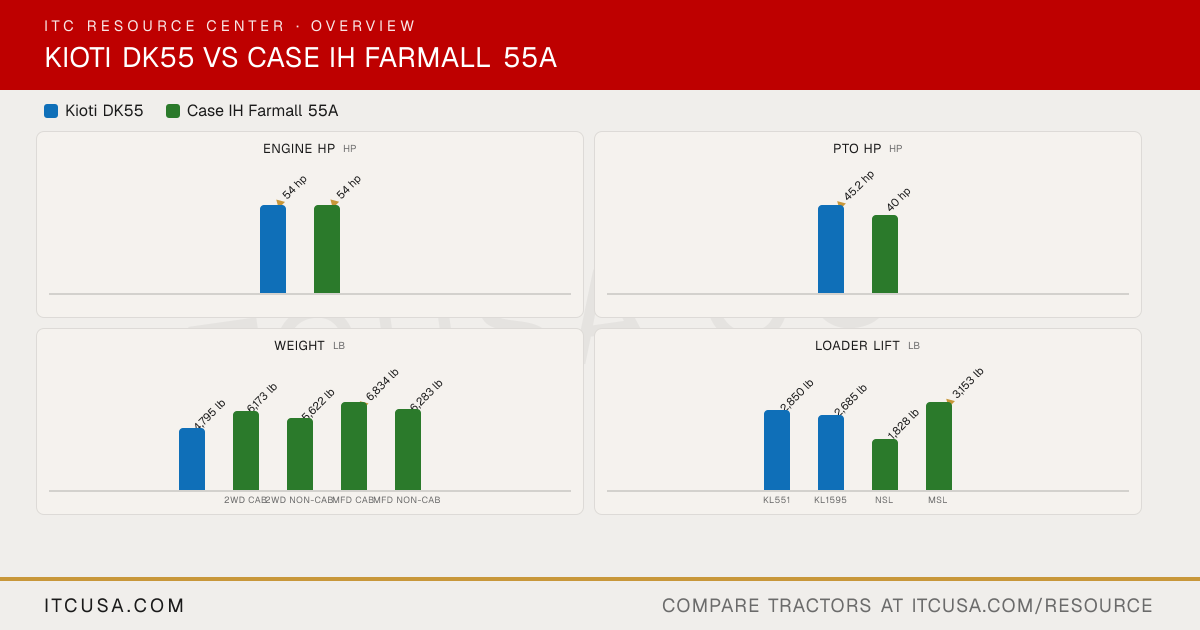

▶ EngineEngine Manufacturer KIOTI (Daedong) FPT Engine Model 4A220T S8000 Engine Type Indirect injection, vertical, water-cooled, turbocharged 4-cycle diesel 3-cylinder, FPT turbocharged & aftercooled diesel, Tier 4 B/Final No. of Cylinders 4 3 Displacement 134.1 in³ 178.8 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 54 hp 54 hp PTO Power 45.2 hp 40 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner High efficiency air filter with cyclone pre-cleaner canister Not Published Fuel System Indirect injection Electronic high pressure common rail Alternator 50 A, 12 V 120 A ▶ HydraulicsPump Type Tandem gear Fixed displacement Implement Flow 9.88 gpm 12.6 gpm Steering Flow 4.33 gpm Not Published Total Hydraulic Flow 14.2 gpm Not Published Overall Hydraulic Pump Flow 14.2 gpm Not Published Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity 18.0 gal 21.7 gal Coolant Capacity 2.51 gal Not Published Crankcase Capacity 2.25 gal Not Published Transmission / Hydraulic System Capacity 10.0 gal Not Published Front Axle Fluid Capacity 2.17 gal Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540/1000 rpm 540 (standard); 540/540E (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (Category I ends optional) Category I/II Hitch Lift Capacity Not Published 5,952 lb (optional hitch 6,614 lb) Hitch Lift Capacity (at 24”) 2,654 lb 4,300 lb (optional hitch 4,740 lb) Lift Control Type Position, Draft and Mixed control Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle MFD: 12x12 power shuttle (wet clutch); 2WD: 8x8 power shuttle (wet clutch); optional 12x12 mechanical shuttle (dry clutch) or 12x12 with creeper (20x20) No. of Speeds 12F/12R MFD: 12F/12R; 2WD: 8F/8R; optional 12F/12R mechanical or 20F/20R creeper Max Travel Speed (Forward) 16.42 mph 18.6 mph Max Travel Speed (Reverse) 13.59 mph Not Published Clutch Dry type single plate, single stage MFD: wet clutch (12x12 power shuttle); 2WD: wet clutch (8x8 power shuttle); optional dry clutch (12x12 mechanical shuttle) Differential Lock & Limited Slip Options Mechanical rear differential lock Mechanical rear differential lock; MFD engagement electrohydraulic; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc type Wet disc Seat Suspension & Adjustability Adjustable seat Mechanical contoured seat, adjustable; optional air-ride seat Front Axle Type 4WD (bevel gear front wheel drive, push-button engagement) 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 128.6 in 155.3 in Overall Width 69.3 in Not Published Wheelbase 75.6 in 2WD: 82.1 in; MFD: 83.6 in Ground Clearance 17.5 in Not Published Min. Turn Radius without Brakes 145 in Not Published Height to Top of ROPS 106.5 in Not Published Height to Top of ROPS (folded) 85.5 in Not Published Height to Top of Cab Model 97.2 in 2WD: 98 in; MFD: 100 in ▶ WeightTractor Weight (Base) 4,795 lb 2WD Cab: 6,173 lb; 2WD Non-cab: 5,622 lb; MFD Cab: 6,834 lb; MFD Non-cab: 6,283 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial R-1 (ag tread) bias ply standard; optional R-1W (ag tread) radial R1 Agricultural - Front 9.5-20 2WD: 9.5L-15; MFD: 11.2x24 R1 Agricultural - Rear 14.9-28 2WD: 16.9R28; MFD: 16.9x30 (optional 16.9R28) R3 Turf - Front 29x12.5-15 Not Published R3 Turf - Rear 44x18-20 Not Published R4 Industrial - Front 14x17.5 Not Published R4 Industrial - Rear 18.4x24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System KL551: universal quick-attach bucket mount, 78 in QA bucket Not Published Loader Model KL551; KL1595 L610 Loader Lift Height KL551: 113.58 in; KL1595: 127.52 in 130.3 in Loader Lift Capacity (Full Height) KL551: 2,850 lb; KL1595: 2,685 lb NSL: 1,828 lb; MSL: 3,153 lb Loader Breakout Force KL551: 4,675 lb; KL1595: 4,500 lb Not Published ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
